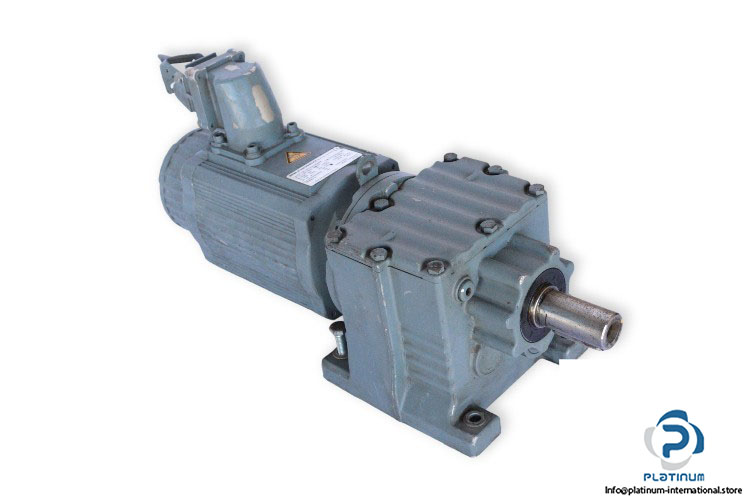

SEW R27 CM71S/TF/RH1M/SM50 SYNCHRONOUS SERVO MOTOR
This SEW synchronous servo motor delivers precise control and high torque performance for demanding automation applications. Designed with a helical gear unit and integrated resolver encoder, it ensures accurate motion control in a compact footprint, ideal for industrial drive systems.
Manufacturer: SEW
Type: Synchronous Servo Motor
Model: R27 CM71S/TF/RH1M/SM50
Nr: 01.1190116813.0001.07
Technical Information
- Gear Unit: R27
- Motor Size: 71
- Speed Class: 2000 r/min
- Torque at Standstill: 5 Nm
- Standstill Current: 2.20 A
- Max. Current: 8.80 A
- Max. Voltage: 400 V
- Frequency: 100 Hz
- Mounting Position: M1
- Degree of Protection: IP65
- Insulation Class: F
- Gear Type: Helical Gear Unit, Foot-Mounted
- Gear Box Size: 27
- Ratio: 8.16
- Gear Output Speed: 245 r/min
- Motor Speed: 2000 r/min
- Shaft Diameter: 25 mm
- Encoder: RH1M Resolver
