CBF Mvsf 742 26 1/30 Gear Motor
Used
In stock1 unitReady to ship
99,99$
Gear Motor
The CBF Bernio MVSF742 26 1/30 Gear Motor operates at 24 VDC with a 31 ratio, offering up to 5.5 Nm torque and speeds from 65 to 180 min-1 for reliable performance in automation and machinery applications.1/302426315.5AutomationBernioCBFComponentsControldcDriveGearIndustrialMotionmotorMVSF742NmratioTorqueVDC
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

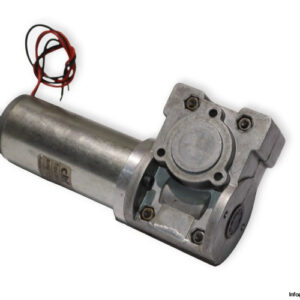

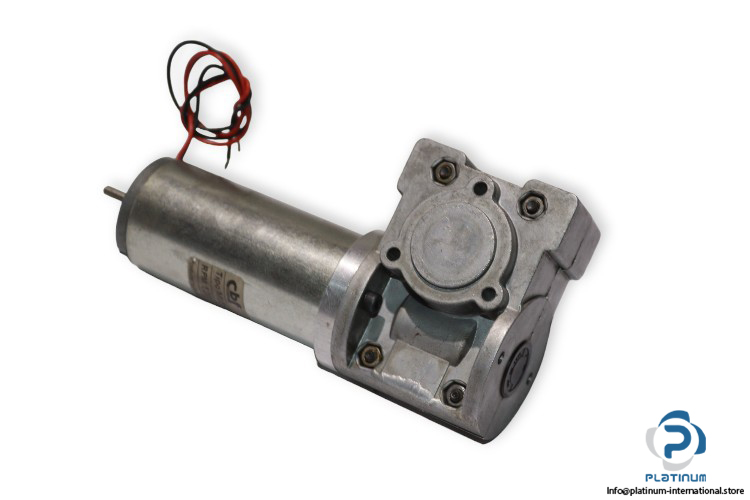

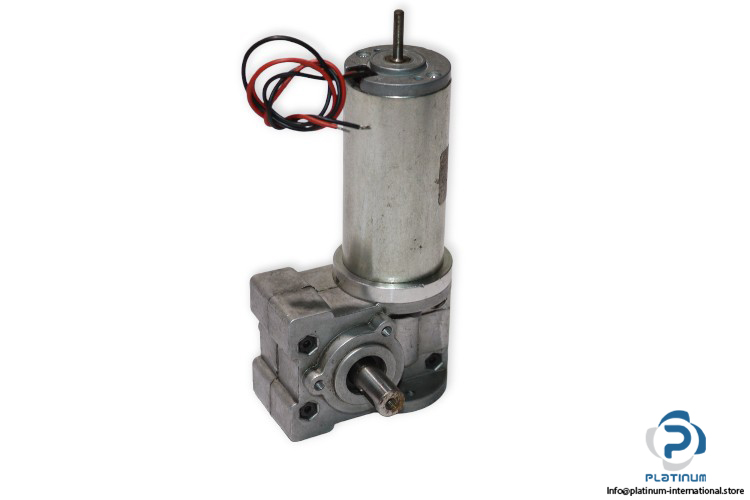

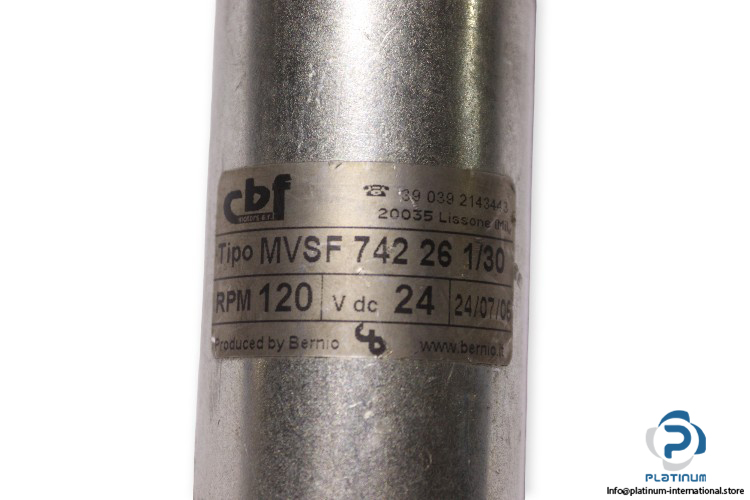

CBF Bernio MVSF742 26 1/30 Gear Motor
The CBF Bernio MVSF742 26 1/30 Gear Motor is built for reliable power transmission and stable speed control in industrial and automation systems. It offers strong torque performance with efficient operation across continuous and intermittent duty modes.
Manufacturer: CBF Bernio
Type: Gear Motor
Model: MVSF742 26 1/30
| Rated Voltage | 24 VDC |
| Stall Current | 38 A |
| Current (S1) | 1.6 A |
| Current (S2) | 3 A |
| Ratio | 31 |
| Speed (No Load) | 180 min-1 |
| Speed (S1) | 90 min-1 |
| Speed (S2) | 65 min-1 |
| Maximum Torque | 5.5 Nm |
| Torque (S1) | 1.1 Nm |
| Torque (S2) | 2.5 Nm |
