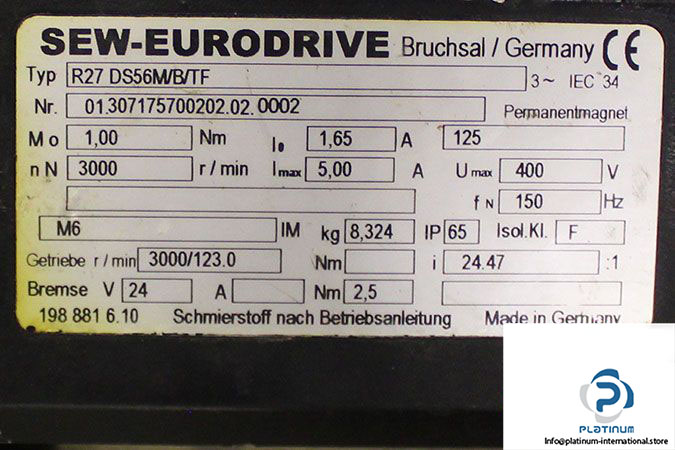

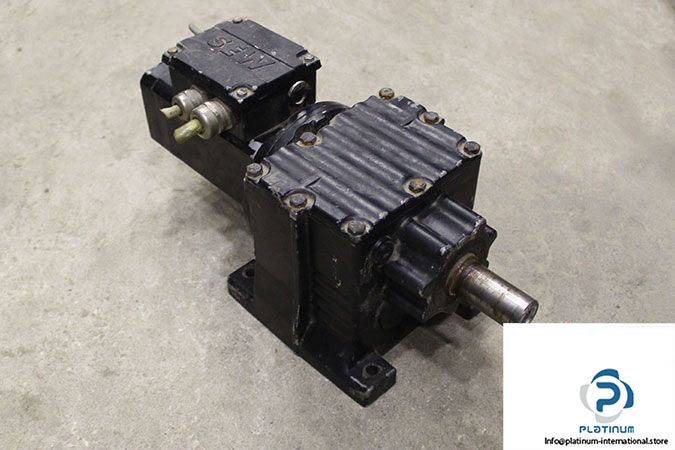

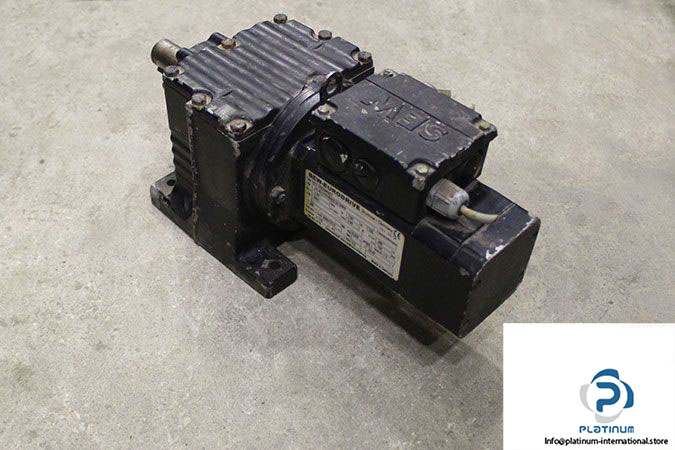

Manufacturer: Sew-Eurodrive

Type: Synchronous Servo Motor

Model: R27DS56M/B/TF

Sew DS56M AC Motor

Motor Size: 56

Speed Class: 3000 r/min

Torque at Standstill: 1 Nm

Standstill Current: 1.65 A

Max. Current: 5 A

Max. Voltage: 400 V

Frequency: 150 Hz

Mounting Position: M6

Degree of Protection: 65

Insulation Class: F



Sew R27 Gear

Gear Type (R): Helical Gear Unit, Foot-Mounted

Gear Box Size: 72

Ratio: 24.47

Gear Output Speed: 123 r/min

Motor Speed: 3000 r/min

Shaft Diameter: 25 mm

Sew B/TF Motor Options

Disk Brake Size: 56

Rated Voltage: 24 VDC

Rated Torque: 2.5 Nm

Thermistor (PTC Resistor)

Low-Noise Brake

Gross Weight: 7.5 kg
