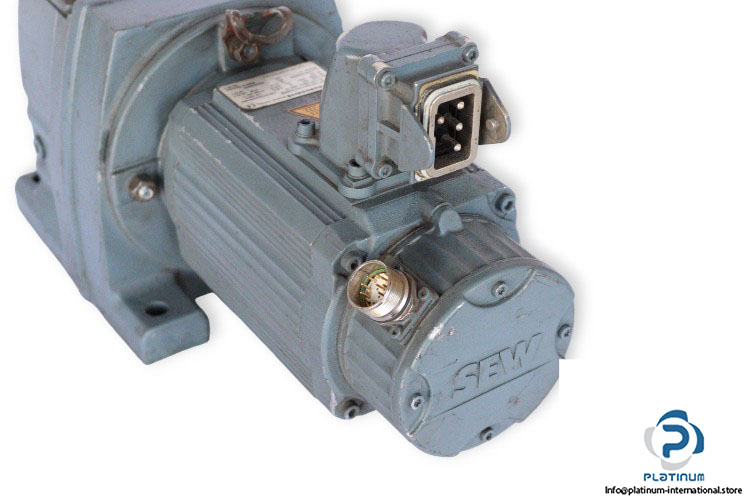

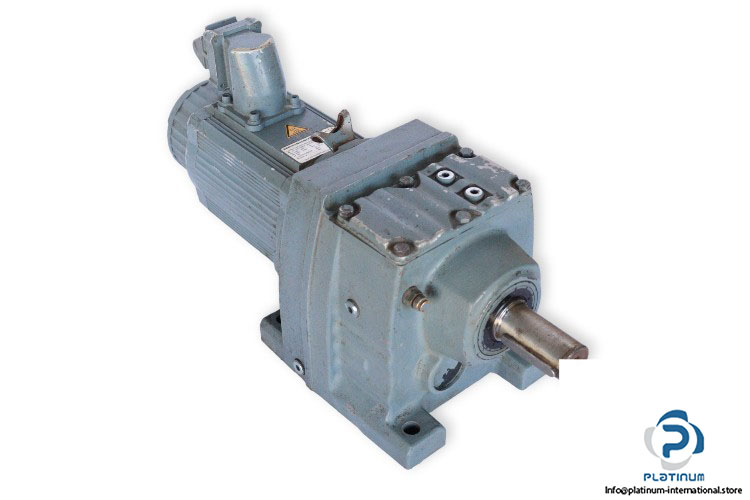

SEW R47 CM71S/TF/RH1M/SM50 SYNCHRONOUS SERVO MOTOR
The SEW R47 CM71S/TF/RH1M/SM50 is a precision-engineered synchronous servo motor with an integrated helical gear unit, designed for advanced automation and motion control systems. Built for efficiency and durability, it delivers high torque and stable performance under demanding industrial conditions.
Manufacturer: SEW
Type: Synchronous Servo Motor

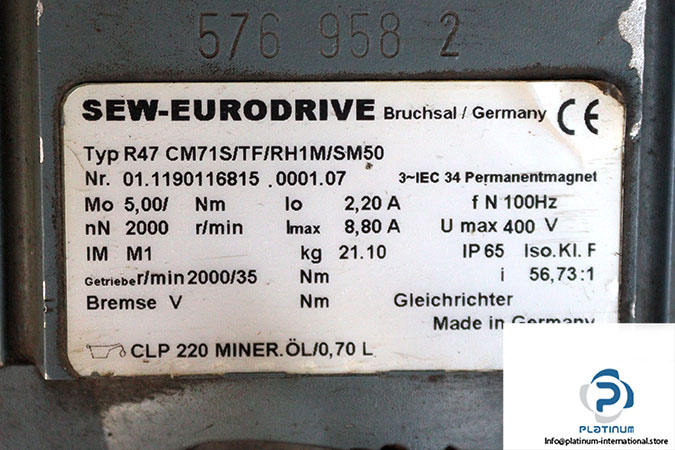

Model: R47 CM71S/TF/RH1M/SM50
Nr: 01.1190116815.0001.07
Technical Information
- Gear Unit: R47
- Gear Type (R): Helical Gear Unit, Foot-Mounted
- Gear Box Size: 47
- Ratio: 56.73
- Gear Output Speed: 35 r/min
- Motor Speed: 2000 r/min
- Motor Size: 71
- Speed Class: 2000 r/min
- Torque at Standstill: 5 Nm
- Standstill Current: 2.20 A
- Max. Current: 8.80 A
- Max. Voltage: 400 V
- Frequency: 100 Hz
- Mounting Position: M1
- Degree of Protection: IP65
- Insulation Class: F
- Encoder: RH1M Resolver
- Plug Connector: SM50
