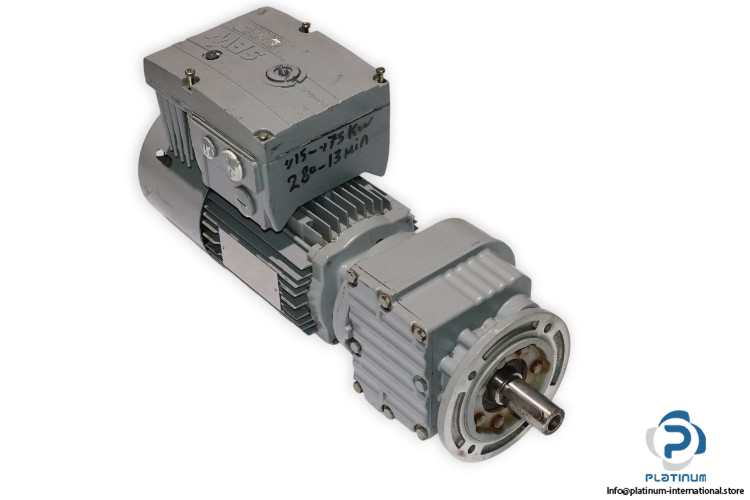

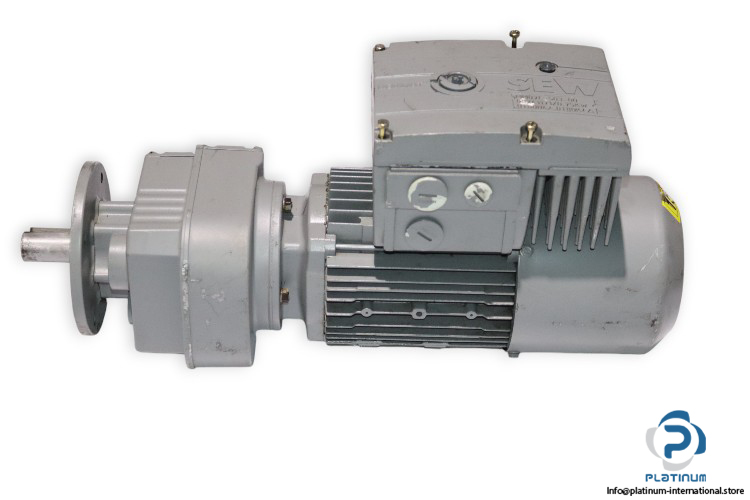

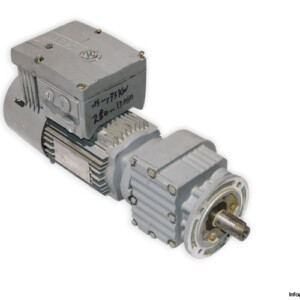

SEW HELICAL-GEARMOTOR
The SEW Helical-Gearmotor (Model: RF27 DT80N4/BMG/MM07, Part No: 01.3025910601.0001.04) is designed for high-efficiency performance in industrial applications. This gearmotor provides a total ratio of 22.32 and output torque of 114 Nm, making it suitable for a wide range of operational needs. It also includes the SEW MM07C-503-00 MOVIMOT Inverter Drive for precise speed control and enhanced reliability in demanding environments.
Manufacturer: SEW
Type: Helical-Gearmotor
Model: RF27 DT80N4/BMG/MM07
Part No.: 01.3025910601.0001.04

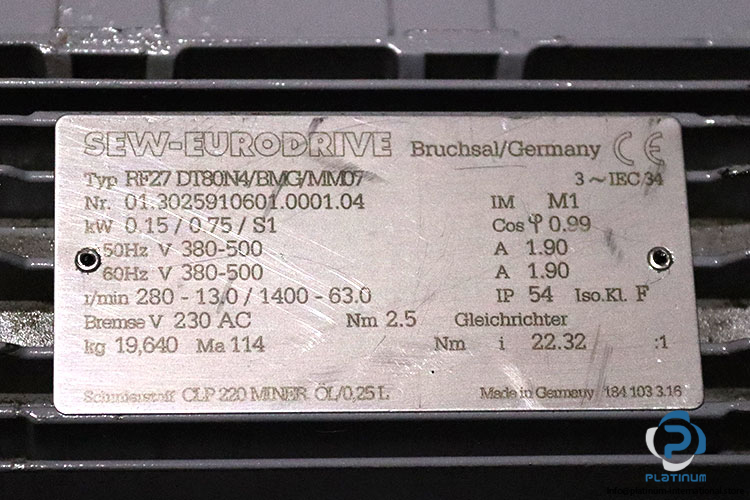

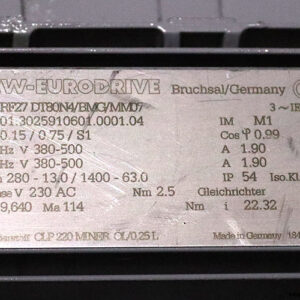

Technical Specifications
- Gear Unit: RF27
- Speed 50Hz [r/min]: 280 – 1400
- Output Speed [r/min]: 13.0 – 63.0
- Total Ratio: 22.32
- Output Torque [Nm]: 114
- Service Factor SEW-FB: 1.15
- Mounting Position: M1
- Lubricant / Volume [l]: CLP 220 0.25
- Output Shaft End: 25x50mm lg.
- Flange: 140 mm
- Motor Power [kW]: 0.15 / 0.75
- Motor Frequency [Hz]: 50
- Cyclic Duration Factor S1-S10: S1
- Multi-Range Voltage 50Hz [V]: 380-500
- Multi-Range Voltage 60Hz [V]: 380-500
- MM Rated Main Current [A]: 1.90
- MM Rated O/P Current [A]: 2.50
- Thermal Classification [°C]/Enclosure [IP]: (F) / 54
- Brake Voltage [V] / Torque [Nm]: 230 AC / 2.5
- Multi-Range Voltage Brake [V]: 230 AC

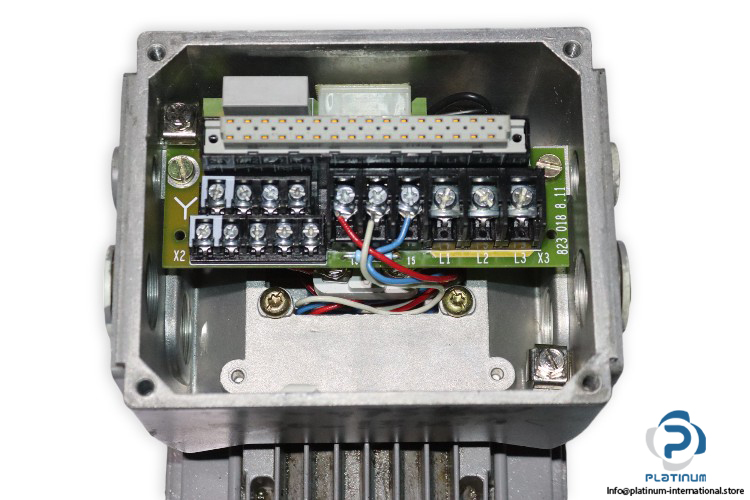

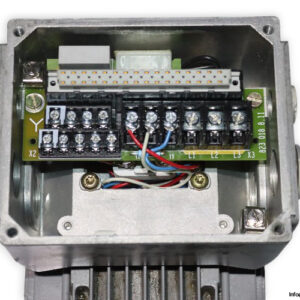

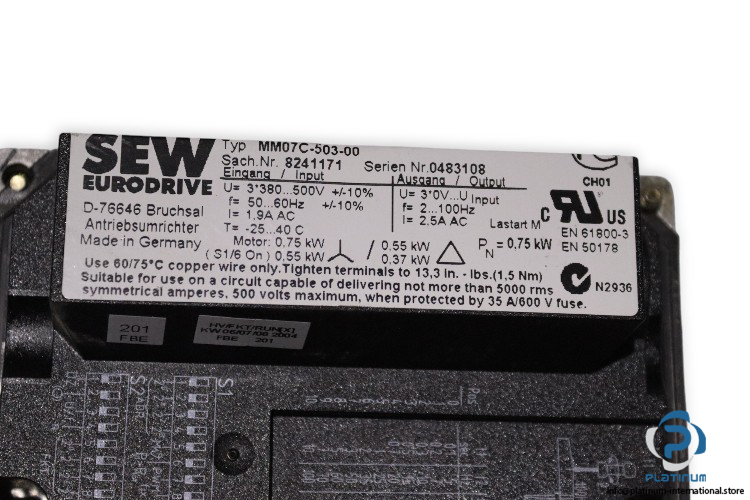

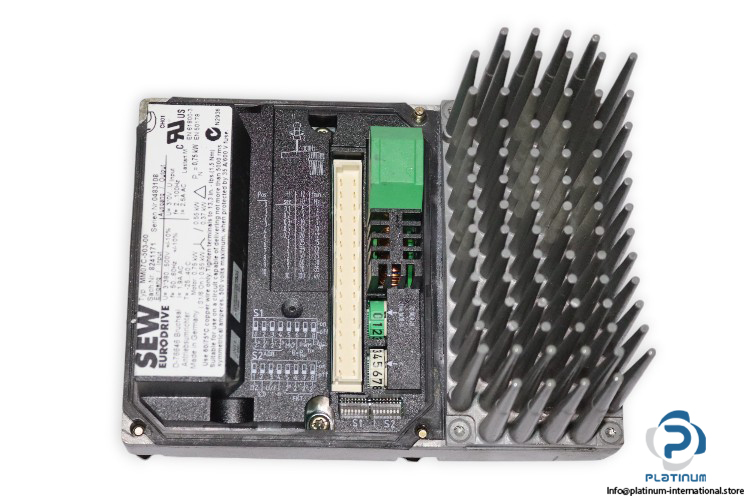

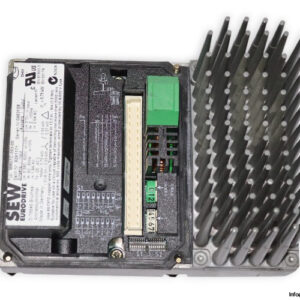

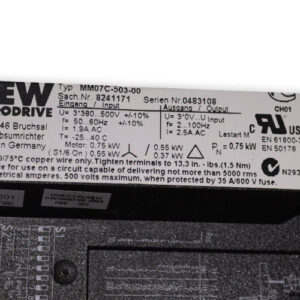

- Attached With: SEW MM07C-503-00 MOVIMOT Inverter Drive
Input Specifications
- Supply Voltage: 3-Phase 380 to 500 V AC
- Rated Current: 1.9 A
- Frequency: 50 / 60 Hz
Output Specifications
- Rated Voltage: 3-Phase 0 / 380 to 500 V AC
- Rated Current: 2.5 A
- Frequency: 2 to 100 Hz
