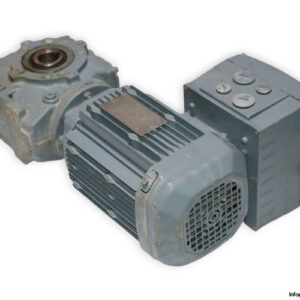

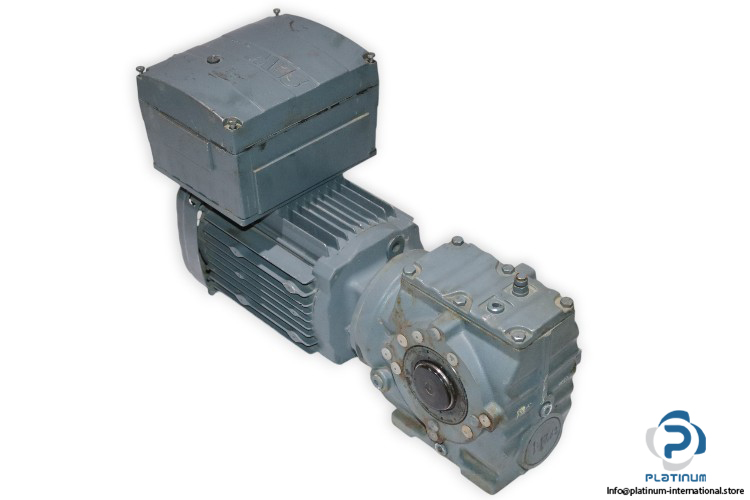

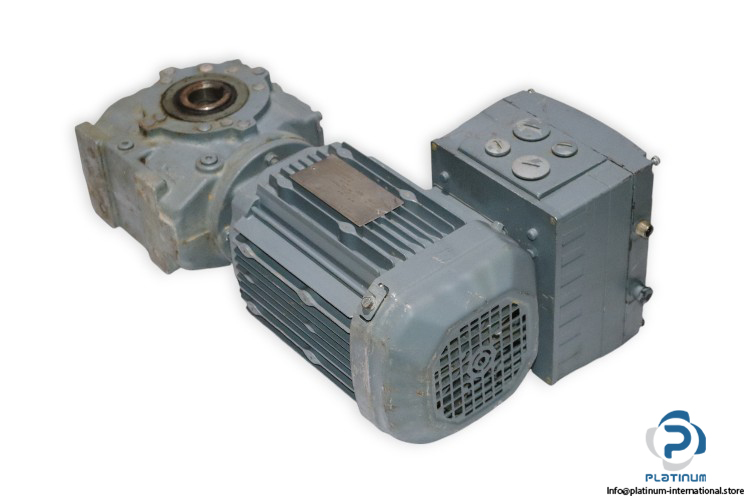

SEW SA47/T DRS80M4/MSW/TF HELICAL-WORM GEARMOTOR

The SEW SA47/T DRS80M4/MSW/TF Helical-Worm Gearmotor is engineered for high efficiency and durability in industrial applications. With a total ratio of 23.20, 142 Nm output torque, and 1.1 kW motor power, this gearmotor ensures reliable power transmission and smooth operation across various tasks.

Manufacturer: SEW

Type: HELICAL-WORM GEARMOTOR

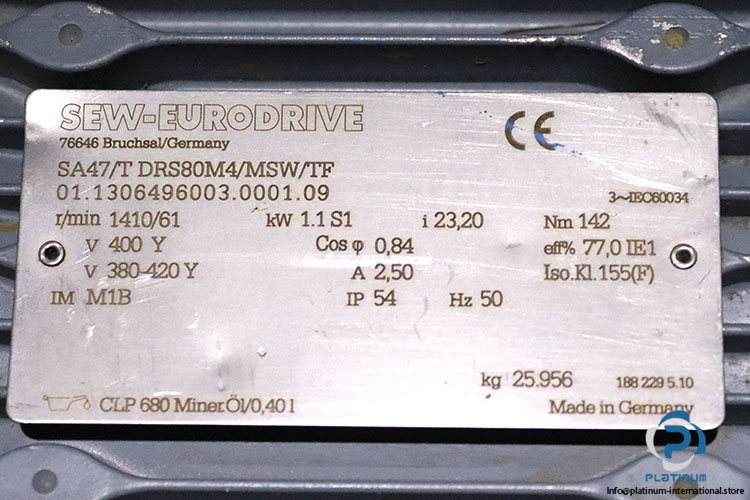

Model: SA47/T DRS80M4/MSW/TF

Part No: 01.1306496003.0001.09

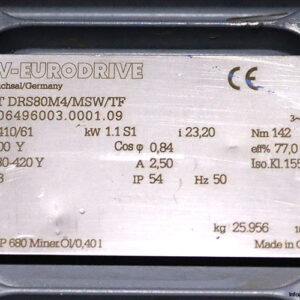

Technical Specifications

• Gear unit: SA47/T
• Speed [r/min]: 1410 / 61
• Total ratio: 23.20 / finite
• No. of teeth nom./denominator: 116/5
• Mounting position: M1B
• Output torque [Nm]: 142
• Service factor SEW-FB: 1.05
• Lubricant / -volume [l]: CLP 680 Miner.Oil / 0.40
• Motor power [kW]: 1.1
• Cyclic duration factor S1-S10: S1
• Hollow shaft: 30mm
• Design: Hollow shaft
• Voltage range [V]: 380-420 star
• Nominal current [A]: 2.50
• Cos phi: 0.84
• Thermal cl. [°C] / Enclosure [IP]: 155(F) / 54

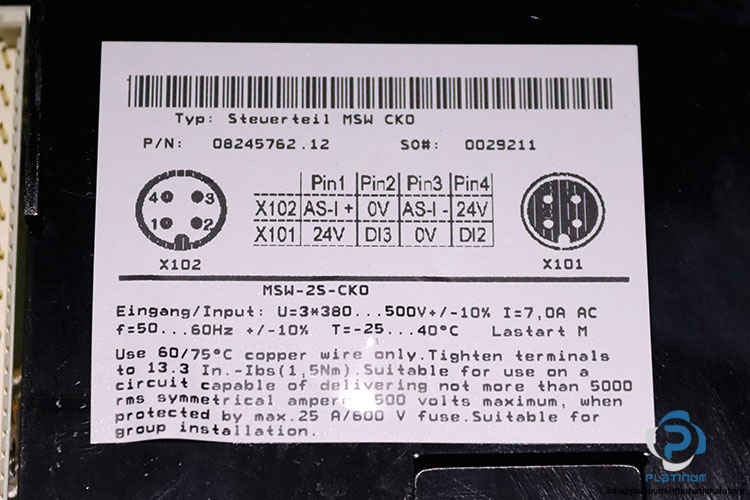

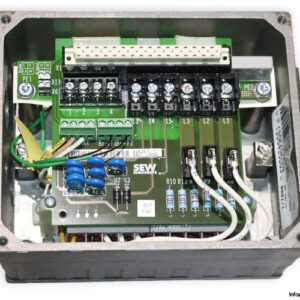

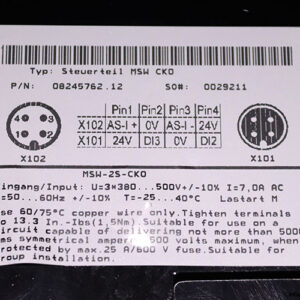

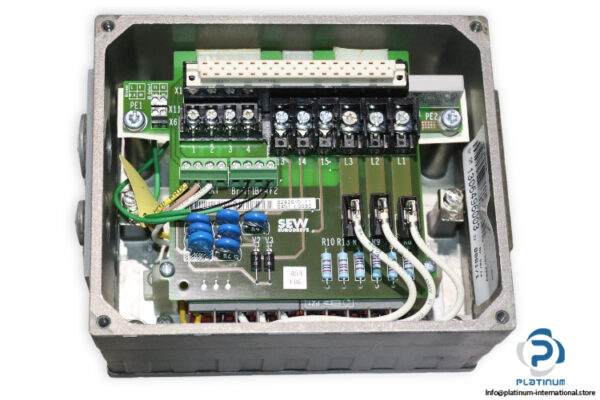

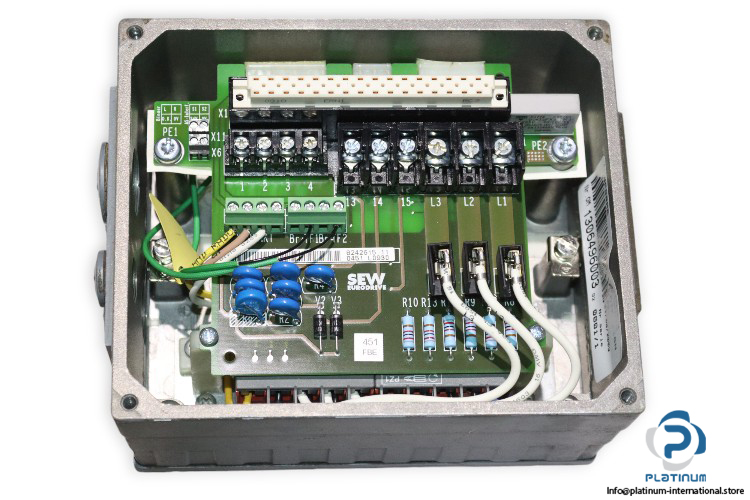

• Attached with: SEW MSW-2S-CK0 MOVI-SWITCH
• Input Supply Voltage: 3-Phase 380 / 500 V AC
• Rated Current: 7 A
• Frequency: 50 / 60 Hz
