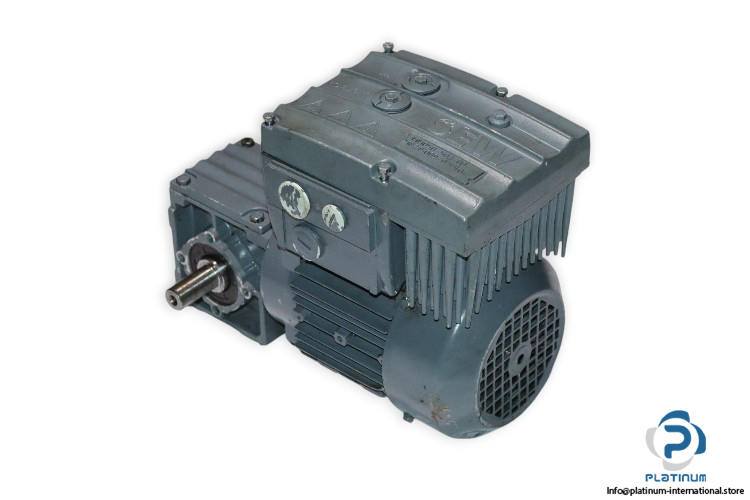

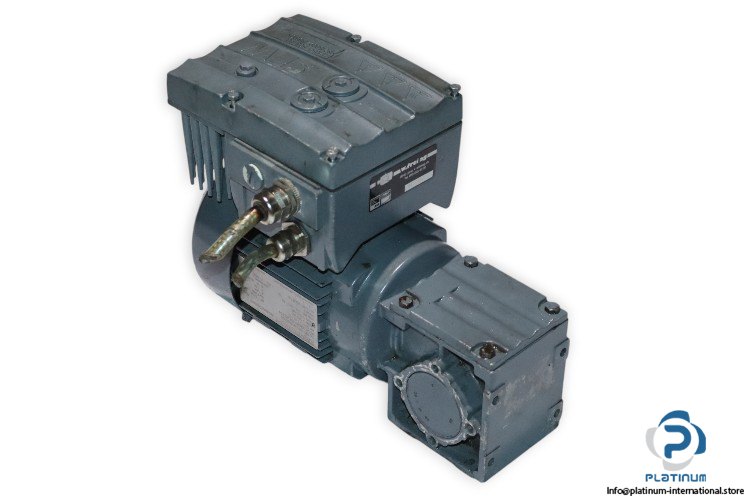

SEW W20 DT71D4/MM05/BW1 Spiroplan Gearmotor

The SEW W20 DT71D4/MM05/BW1 Spiroplan Gearmotor is engineered for efficient power transmission in a wide range of industrial applications. With a total ratio of 32.50, input speed of 290-2900 r/min, and output torque of 31/42 Nm, this gearmotor provides reliable and precise performance. It is paired with the SEW MM05D-503-00 MOVIMOT INVERTER DRIVE for enhanced control and versatility.

Manufacturer: SEW

Type: Spiroplan Gearmotor

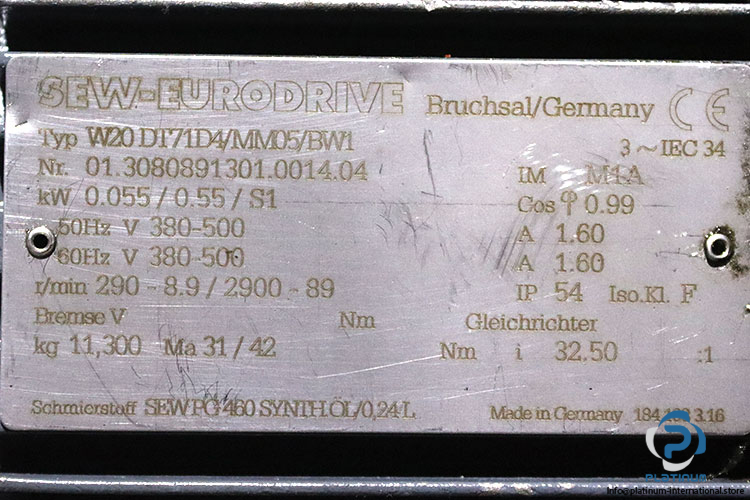

Model: W20 DT71D4/MM05/BW1

Part No: 01.3080891301.0014.04

Technical Specifications

• Gear Unit: W20
• Input Speed [r/min]: 290 – 2900
• Output Speed [r/min]: 8.9 – 89
• Total Ratio: 32.50
• Output Torque [Nm]: 31 / 42
• Service Factor SEW-FB: 1.30 / 0.95
• Mounting Position: M1A
• Lubricant / Volume [l]: SEW PG 460 / 0.24
• Output Shaft End: 20x40mm lg.
• Design: Foot-mounted version
• Motor Power [kW]: 0.055 / 0.55
• Motor Frequency [Hz]: 100
• Cyclic Duration Factor S1-S10: S1
• Multi Range-Voltage 50Hz [V]: 380-500
• Multi Range-Voltage 60Hz [V]: 380-500
• MM Rated Main Current [A]: 1.60
• MM Rated Output Current [A]: 2.00
• Thermal Class/Enclosure [IP]: F / 54

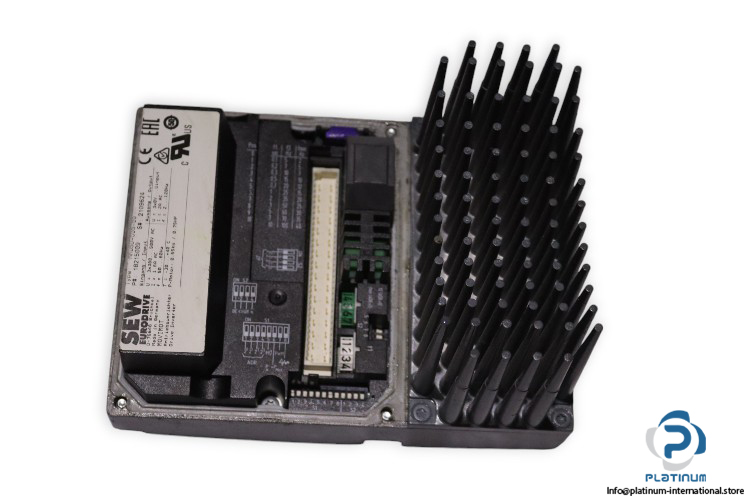

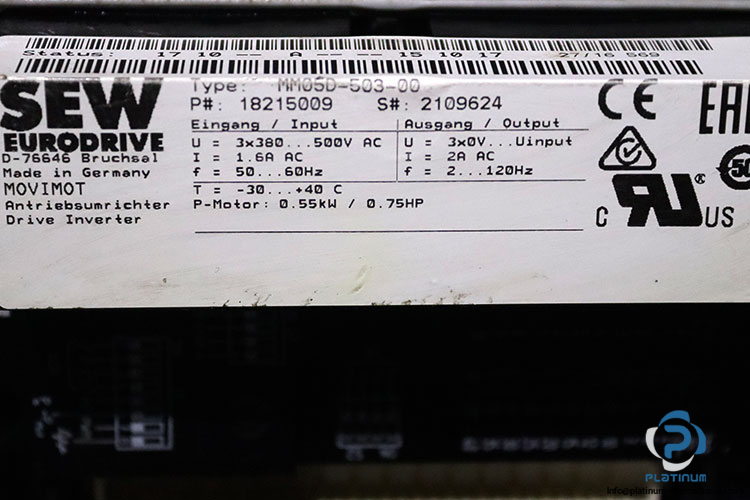

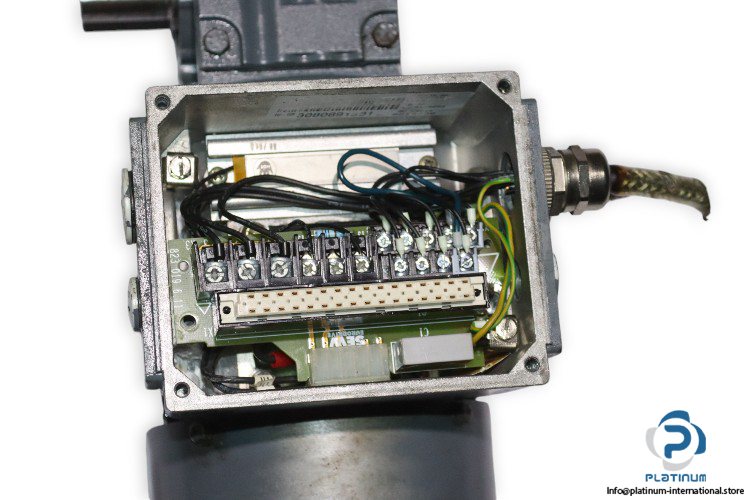

Attached with SEW MM05D-503-00 MOVIMOT INVERTER DRIVE

Input:

• Supply Voltage: 3-Phase 380 / 500 V AC
• Rated Current: 1.6 A
• Frequency: 50 / 60 Hz

Output:

• Rated Voltage: 3-Phase 0 / 380 “ 500 V AC
• Rated Current: 2 A
• Frequency: 2 / 120 Hz
