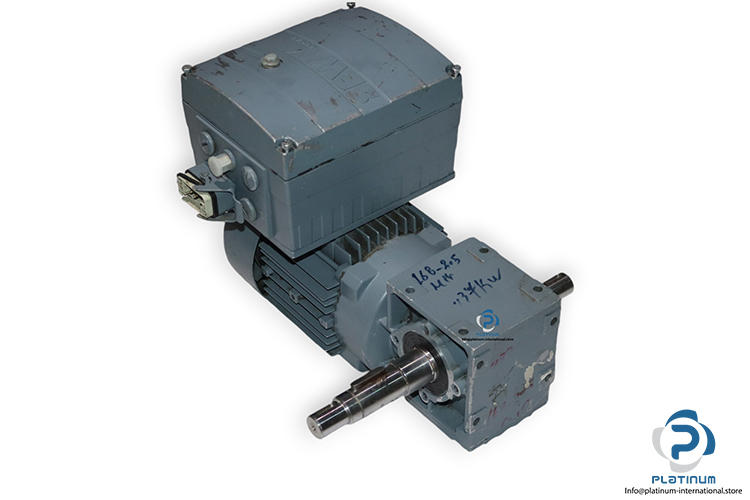

Manufacturer: Sew-Eurodrive
Type: Gear Motor

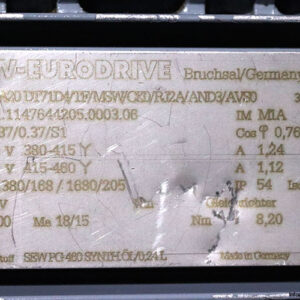

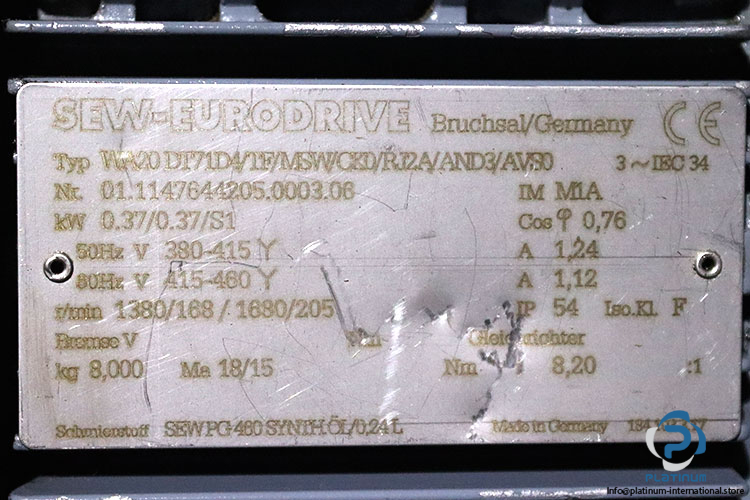

Model: WA20 DT71D4/TF/MSW/CK0/RJ2A/AND3/AVS0
Part Number: 01.1147644205.0003.06

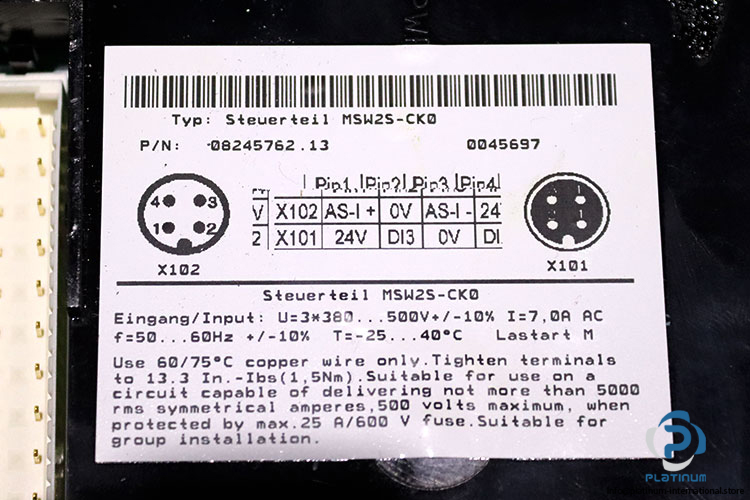

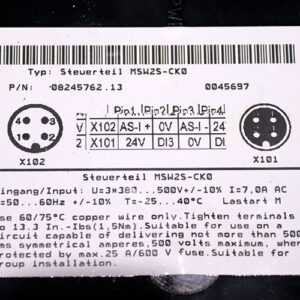

Movi-Switch Type: MSW2S-CK0
Gear Unit: WA20
Speed 50Hz (r/min):1380/168
Speed 60Hz (r/min): 1680/205
Total Ratio (i): 8,2
Output Torque (Nm): 18/15
Service Factor SEW-FB: 1,10/1,35
Mounting Position: M1A
Lubricant / -Volume (l): SEW PG 460 Synth.Oil / 0,24
Hollow shaft (mm): 20
Design: Hollow shaft
Lubricant volume [l]: 0,24
Motor Power (kW): 0,37/0,37
Motor Frequency (Hz): 50
Cyclic Duration Factor: S1
Motor Voltage 50Hz (V): 380-415 star
Nominal current (A): 1,24
Motor Voltage 60Hz (V): 415-460 star
Nominal current (A): 1,12
cos phi: 0,76
Thermal class/Enclosure (IP): F/54
International efficiency class: IEC34-1
Electrical special designs: 900
Add. feature gen. information: AND3+AVS0 plug connector
Access. feature motor Protec: TF temperature sensor

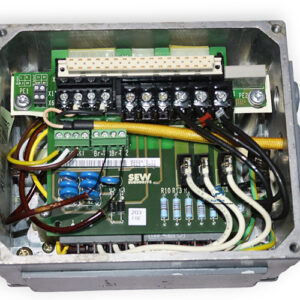

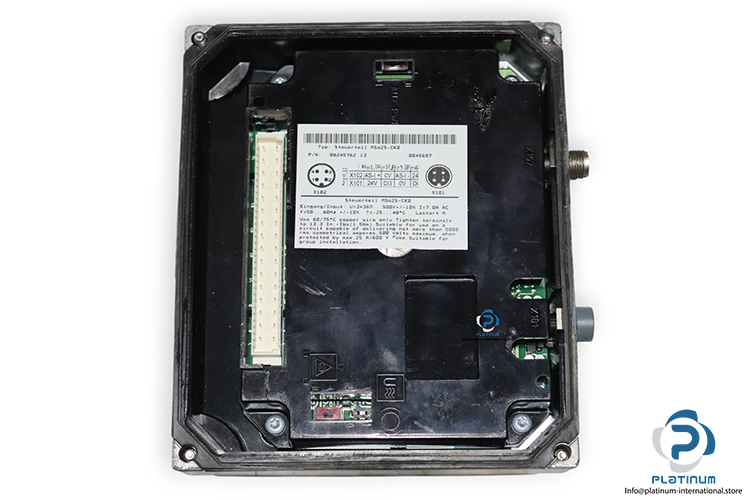

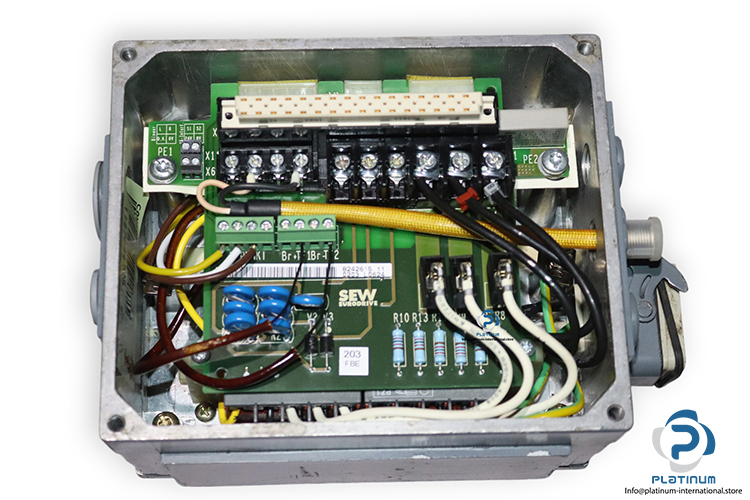

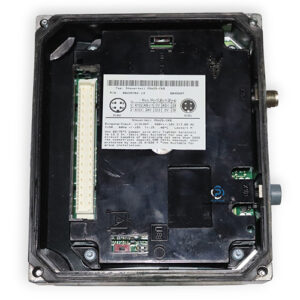

Add. feat. MOVIMOT/-SWITCH: MOVI-SWITCH-2S/CK0 (control via AS-Interface)
Rated Voltage Input (V): 3X380-500 +/-10%
Rated Current Input (A): 7
Frequency Input (Hz): 50-60
Ambient Temperature Inverter (°C): -25 – +40
