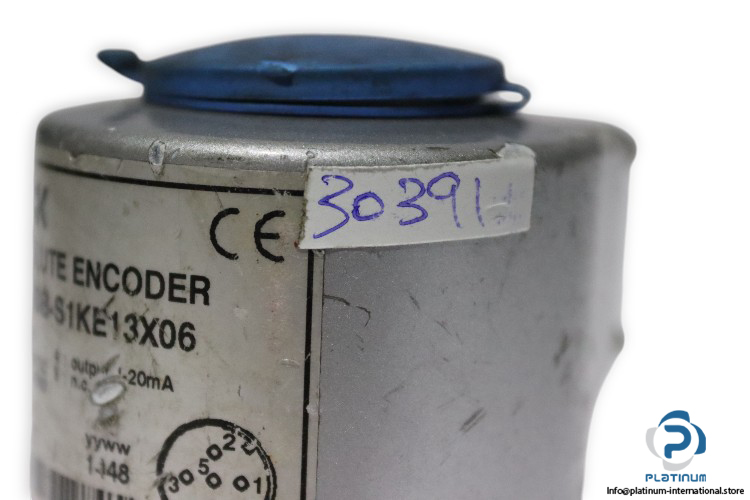

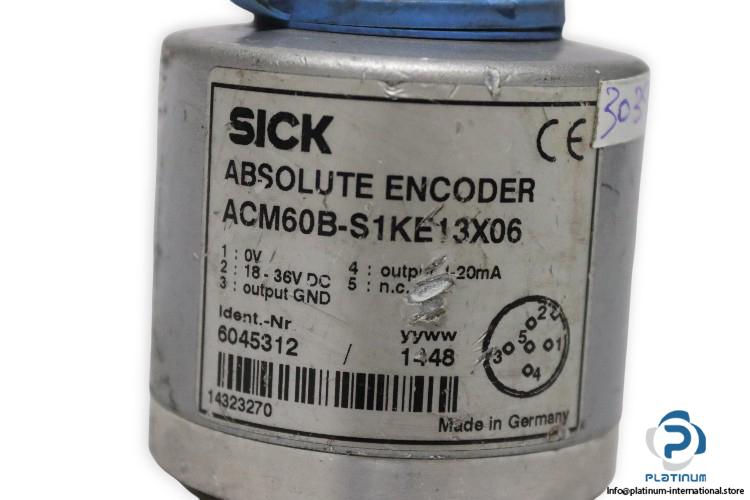

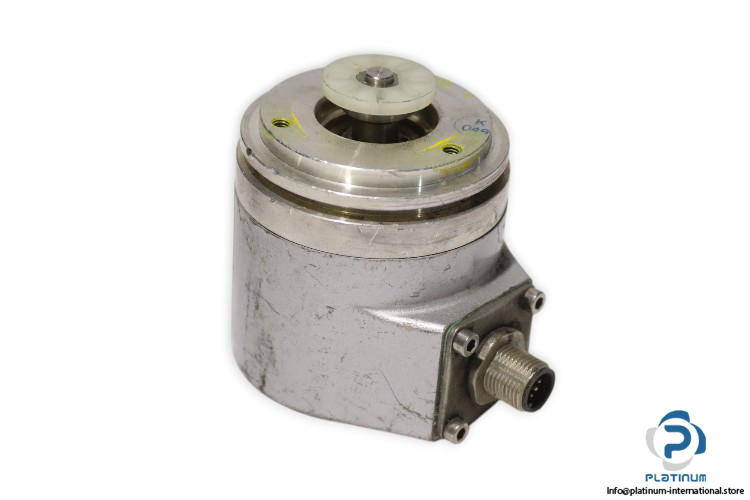

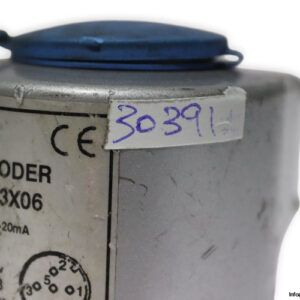

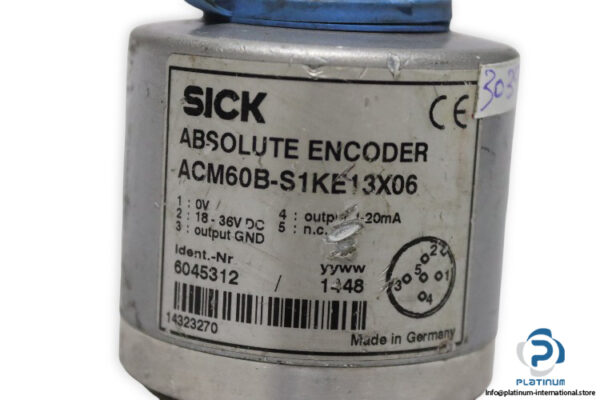

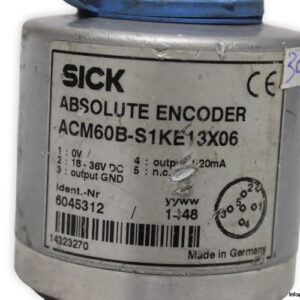

Sick ACM60B-S1KE13X06 Absolute Encoder
The Sick ACM60B-S1KE13X06 is a high-precision absolute encoder designed for reliable performance in automation and motion control systems. Featuring solid shaft design, servo flange mounting, and adjustable code sequence, it ensures accurate feedback and durability under industrial conditions.
Manufacturer: Sick
Type: Absolute Encoder
Model: ACM60B-S1KE13X06
ID No.: 6045312
yyww: 1448
Serial No.: 14323270
Technical information
- Number of Steps per Revolution (Max. Resolution): 10485
- Number of Revolutions: 64 (6 bit)
- Max. Resolution: 10,485 x 64 (6 bit)
- Voltage: 18 to 36 V DC
- Current: 4 to 20 mA
- Code Sequence Parameter: Adjustable, CW (clockwise)

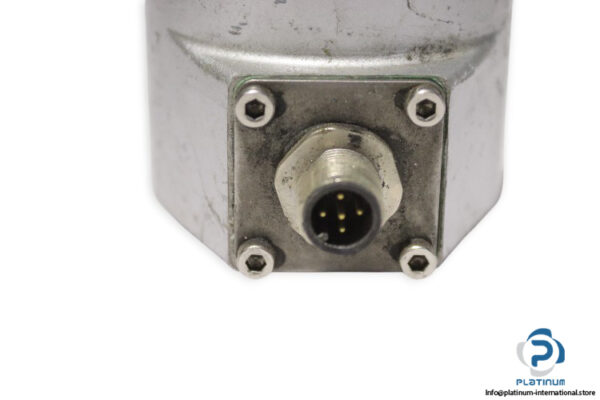

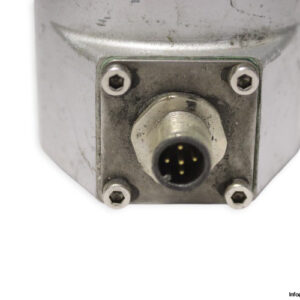

- Connection Type: Male connector, M12, 5-pin, radial
- Electrical Wiring: 3-wire or 4-wire
- Mechanical Design: Solid shaft, Servo flange
- Shaft Diameter: 6 mm
- Shaft Length: 10 mm
- Shaft Characteristics: With flat
- Operating Temperature Range: -30 °C to +80 °C
