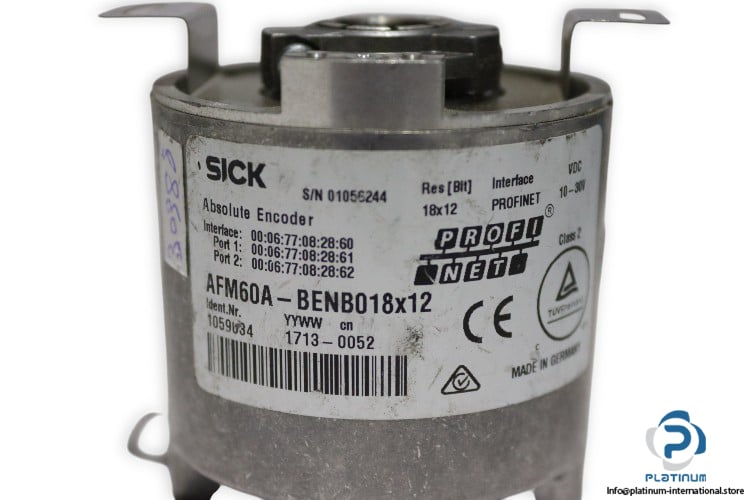

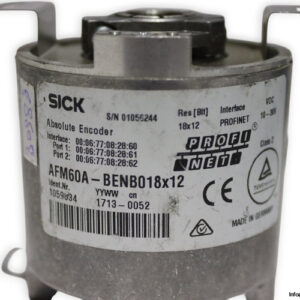

Sick|Stegmann AFM60A-BENB018X12 Absolute Encoder
The Sick|Stegmann AFM60A-BENB018X12 is a high-resolution absolute encoder designed for precise motion control and automation applications. With PROFINET interface, blind hollow shaft design, and rugged stainless steel/aluminum construction, it delivers reliable performance in demanding industrial environments.
Manufacturer: Sick|Stegmann
Type: Absolute Encoder
Model: AFM60A-BENB018X12
Yyww/cn: 1713-0052
Part No.: 1059034
S/N: 01056244
Technical information
- Voltage: 10 to 30 V DC
- Resolution (bit): 18 x 12
- Interface: PROFINET
- Class: 2
- MAC Address: 00:06:77:08:28:60
- Port 1: 00:06:77:08:28:61
- Port 2: 00:06:77:08:28:62
- Number of Steps per Revolution (Max. Resolution): 262144 (18 bit)
- Number of Revolutions: 4096 (12 bit)
- Initialization Time: 6 s

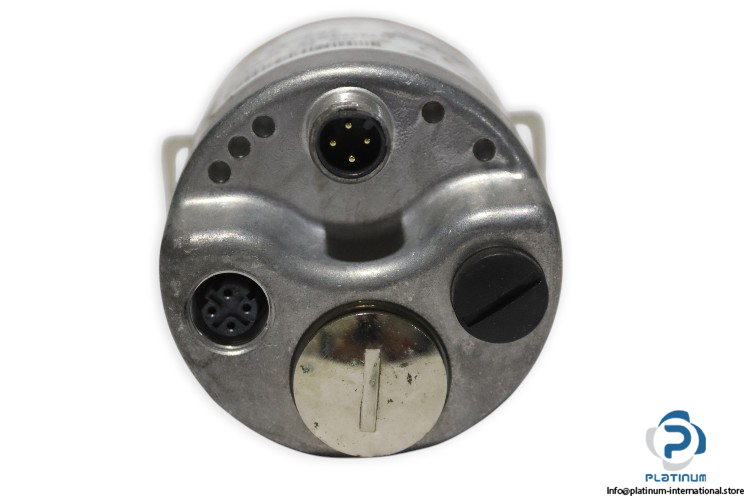

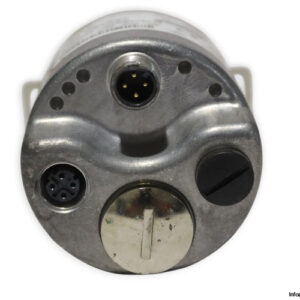

- Connection Type: Male connector, 1x, M12, 4-pin, axial; Female connector, 2x, M12, 4-pin, axial
- Power Consumption: ‰¤ 3 W (without load)
- Material: Stainless steel / Aluminum
- Operating Temperature: -40 °C to +85 °C
- Shaft Diameter: 12 mm

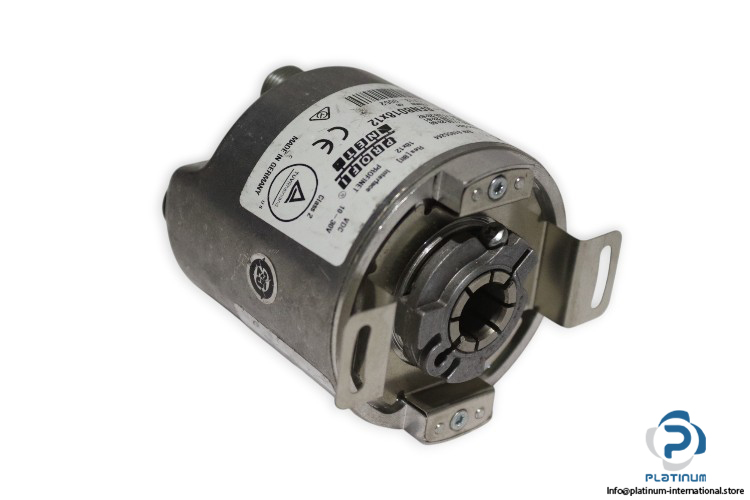

- Mechanical Design: Blind hollow shaft
