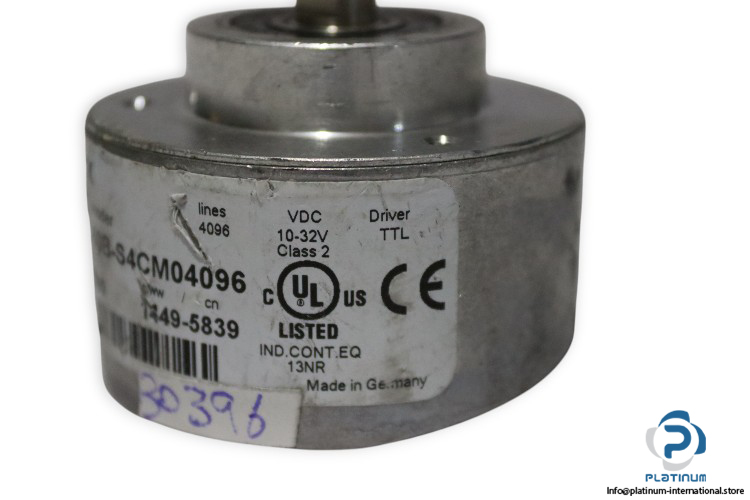

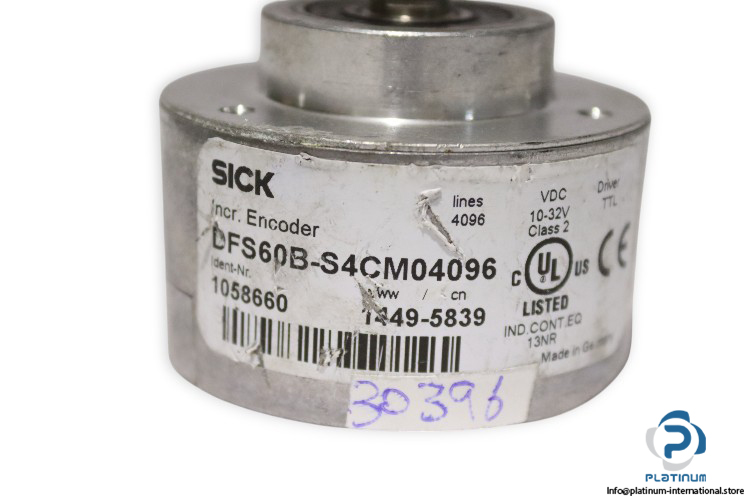

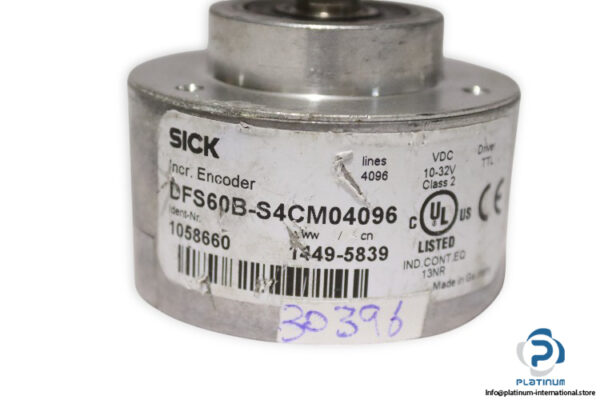

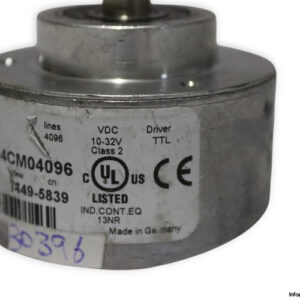

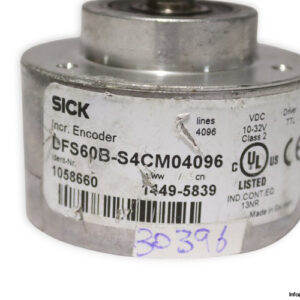

Sick DFS60B-S4CM04096 Incremental Encoder

The Sick DFS60B-S4CM04096 is a high-resolution incremental encoder designed for precision motion control and automation. With 4096 pulses per revolution, TTL driver, and robust mechanical design, it delivers reliable performance even under extreme temperature conditions.

Manufacturer: Sick
Type: Incremental Encoder
Model: DFS60B-S4CM04096
yymm/cn: 1449-5839
ID No.: 1058660

Technical information

• Pulses per Revolution: 4096
• Voltage: 10 to 32 VDC
• Class: 2
• Driver: TTL
• Power Consumption: ‰¤ 0.5 W
• Connection Type: Cable, 8-wire, universal, 5 m

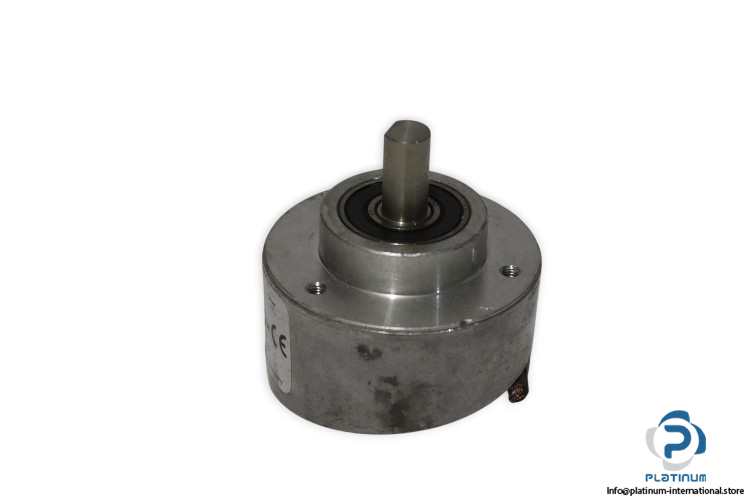

• Mechanical Design: Solid shaft, face mount flange
• Shaft Diameter: 10 mm with face
• Shaft Length: 19 mm
• Operating Temperature Range: -40 °C to +100 °C
