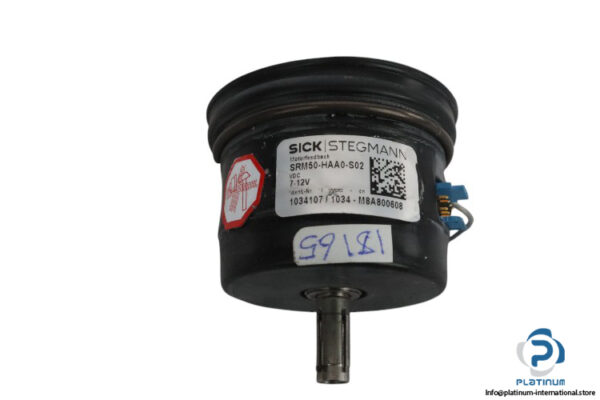

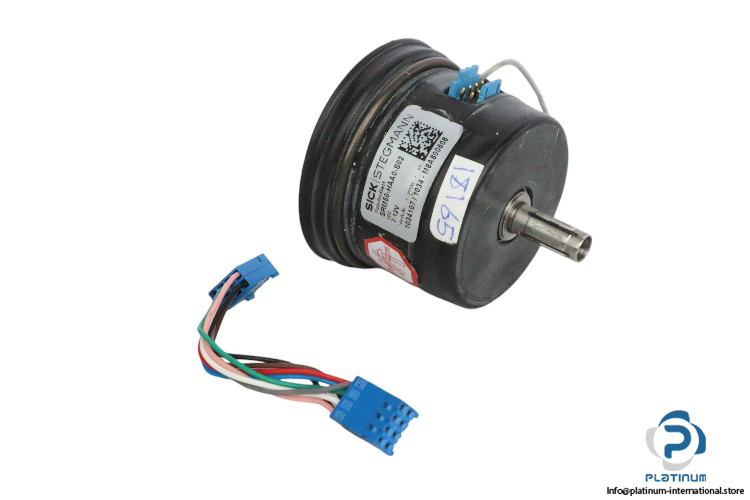

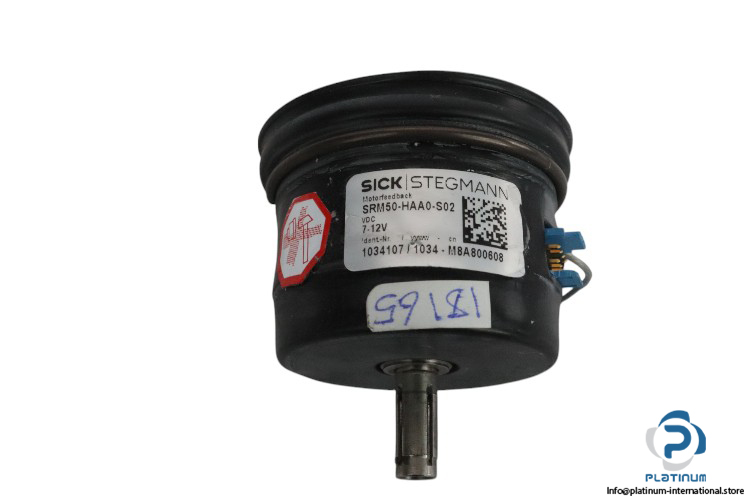

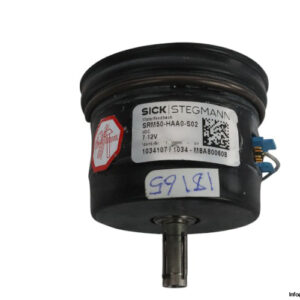

SICK SRM50-HAA0-S02 Motor Feedback System
The SICK SRM50-HAA0-S02 (Part No. 1034107/1034-M8A800608) motor feedback system is a high-precision encoder from the SRM 50 series, designed for accurate position and speed feedback in motor control applications. Featuring RS 485 communication and multi-turn absolute coding, it ensures reliable performance in demanding environments.
- Manufacturer: SICK
- Type: Motor Feedback System
- Model: SRM50-HAA0-S02
- Part No.: 1034107 / 1034-M8A800608
Technical Information:
- Series: SRM 50
- Solid Shaft Diameter: 7 mm
- Sine/Cosine Periods Per Revolution: 1,024 PPR
- Operating Voltage: 7 / 12 V DC
- Operating Current Max.: 80 mA
- Operating Speed Max.: 12000 min»¹
- Total Number of Steps: Multi
- Type of Code for the Absolute Value: Binary
- Digital Parameter Channel: RS 485
- Available Memory Area:
- EPROM 512: 128 Bytes
- EEPROM 2048: 1,792 Bytes
- Operating Torque: 0.2 Ncm
- Starting Torque: 0.4 Ncm
- Protection Class: IP40
- Temperature Range: -20 / 115 °C
