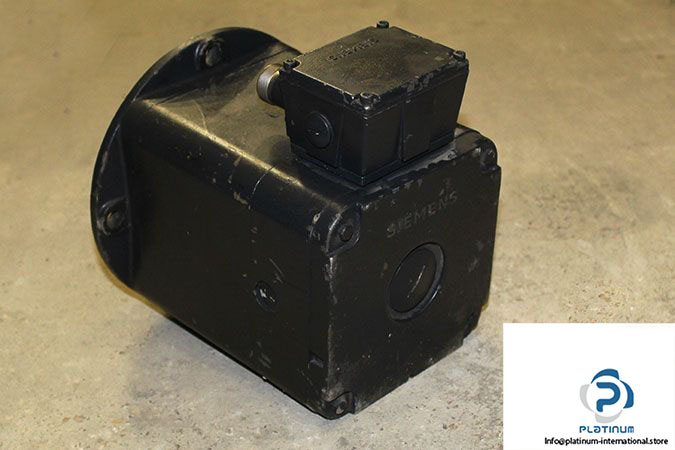

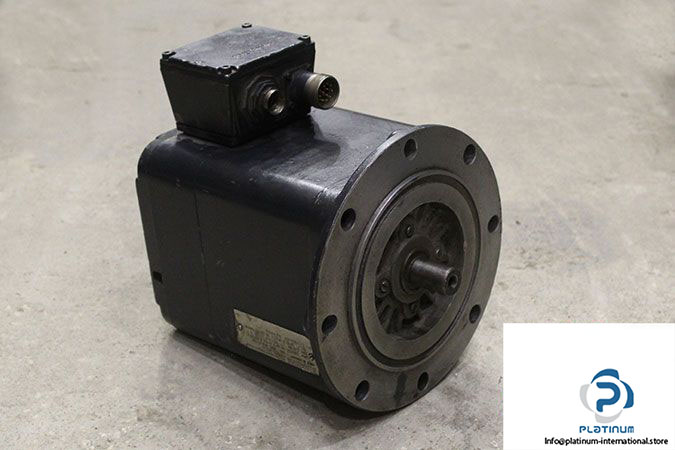

SIEMENS 1FT50700AF012 PERMANENT MAGNET MOTOR

The Siemens 1FT50700AF012 is a high-efficiency permanent magnet motor built for precision-driven industrial applications. Engineered to deliver excellent torque and performance stability, it is equipped with a tacho generator for feedback control and supports reliable operation in demanding environments.

Manufacturer: Siemens
Type: Permanent Magnet Motor
Model: 1FT50700AF012

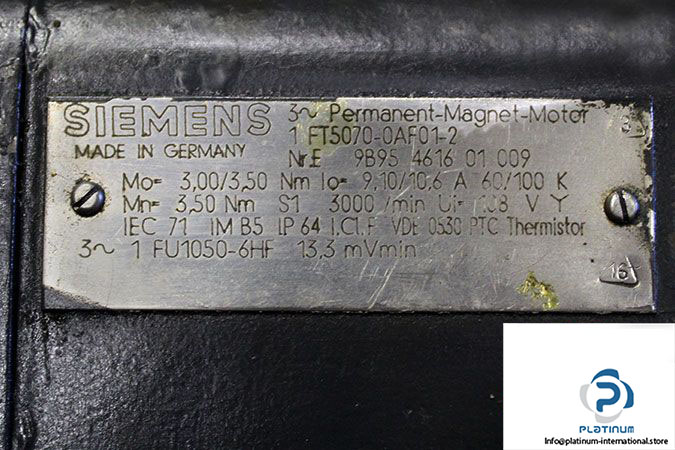

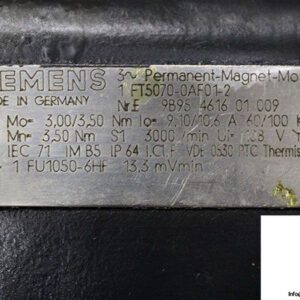

Part No.: 9B95 4616 01 009

Technical Information

• Rated Voltage (Star): 108 V
• Stall Current: 9.1 / 10.6 A
• Rated Speed: 3000 min^-1
• Stall Torque: 3 / 3.5 Nm
• Rated Torque: 3.5 Nm
• Constant Voltage: 13.3 mV/min
• Tacho Generator: 1FU1050-6HF
• Thermal Class: F
• Mounting Position: B5
• Protection Class: IP64
