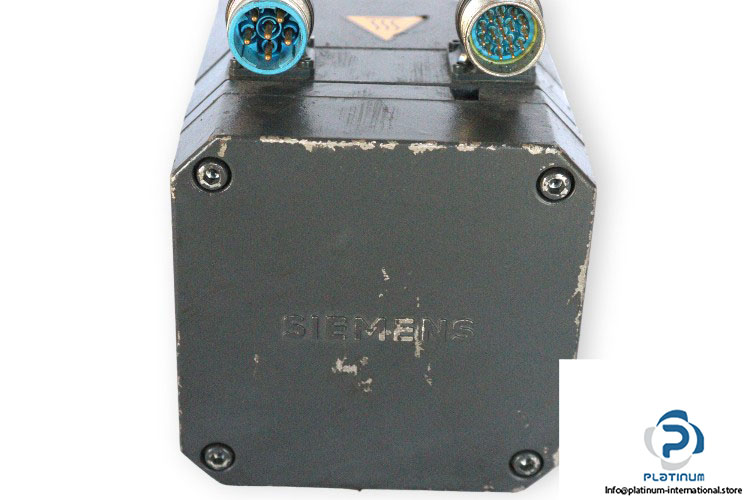

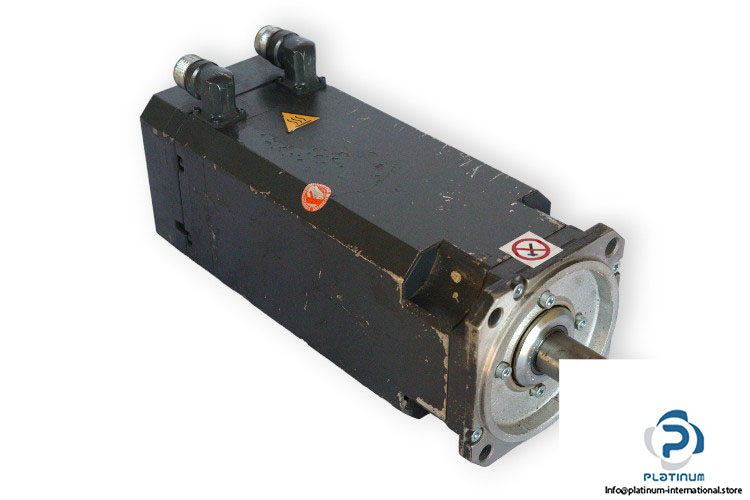

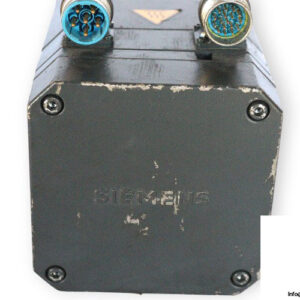

SIEMENS 1FT6064-1AF71-3AG1 PERMANENT MAGNET MOTOR

This Siemens permanent magnet motor offers high dynamic performance and precision positioning, ideal for demanding industrial automation applications. With a rated speed of 3000 rpm and advanced optical encoder feedback, it delivers reliable and consistent torque output in harsh environments.

Manufacturer: SIEMENS
Type: Permanent Magnet Motor
Model: 1FT6064-1AF71-3AG1

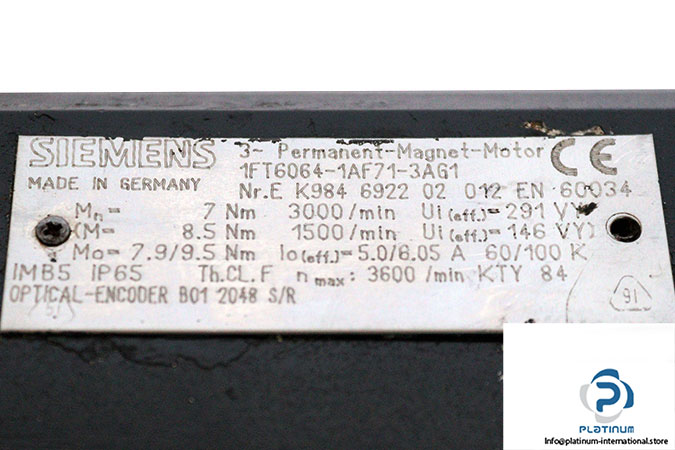

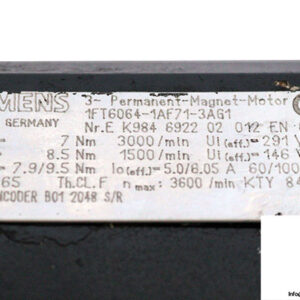

Nr.E: K984 6922 02 012 EN 60034

Technical Information

• Power Supply: 3 Phase AC
• Length: 4
• Rated Voltage: 291 V (Star Delta)
• Rated Torque: 7 Nm
• Static Torque: 7.9 / 9.5 Nm
• Stall Current: 5 / 6.05 A
• Rated Speed: 3000 rpm
• Maximum Speed: 3600 rpm
• Mounting Position: B5
• Protection Class: IP 65
• Thermal Class: F
• Encoder System: Optical Encoder
• Encoder: B01 2048 S/R
