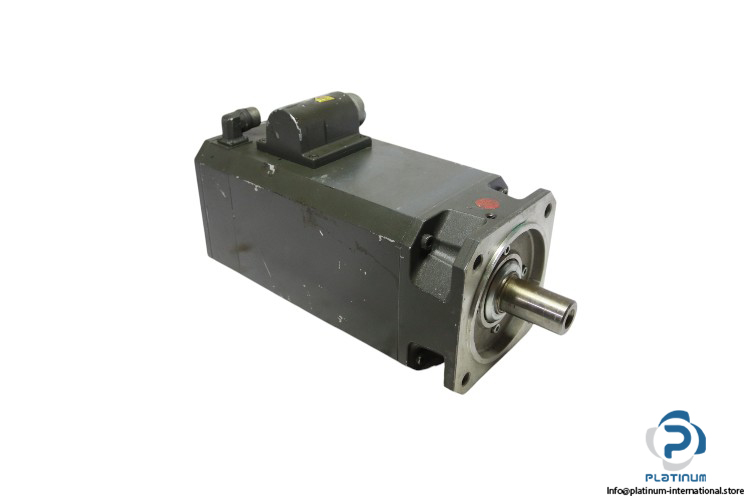

SIEMENS 1FT6084-1AF71-3AH1 SERVOMOTOR

This Siemens servomotor is engineered for high-precision motion control in demanding industrial applications. With a compact frame size, natural cooling, and powerful braking capability, it provides reliable torque and speed performance for automation systems.

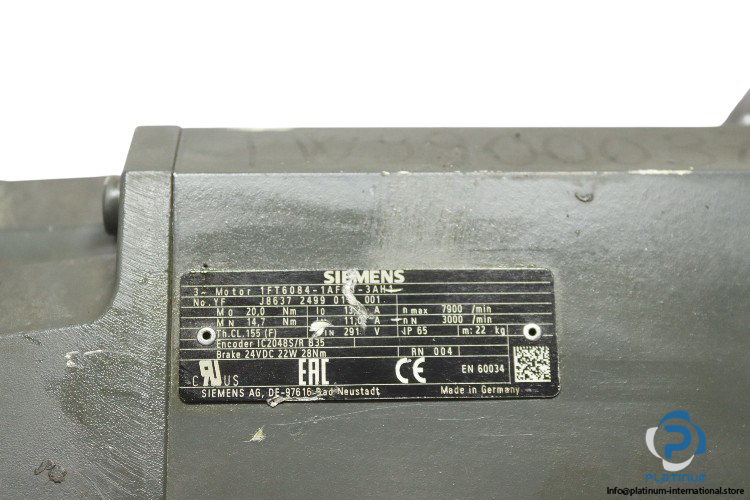

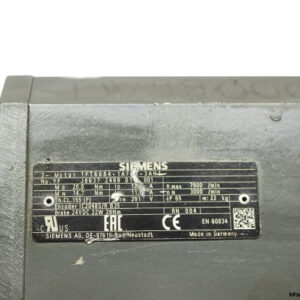

Manufacturer: Siemens
Type: Servomotor
Model: 1FT6084-1AF71-3AH1
Part No. YF.: J8637 2499 01 001
Code: RN 004

Technical Information

• Frame Size: 8
• Length: 4
• No of Poles: 1
• Cooling Method: A, Natural cooling
• Type of Construction: IMB5
• Rated Current [A]: 11
• Stall Current [A]: 13.2
• Rated Torque [Nm]: 14.7
• Stall Torque [Nm]: 20.0
• Rated Voltage [V]: 291
• Rated Speed [min»¹]: 3000
• Max. Speed [min»¹]: 7900
• Protection Class [IP]: 65
• Thermal Class: F
• Encoder: IC2048S/R B35
• Brake Voltage [Vdc]: 24
• Brake Power [W]: 22
• Brake Torque [Nm]: 28
