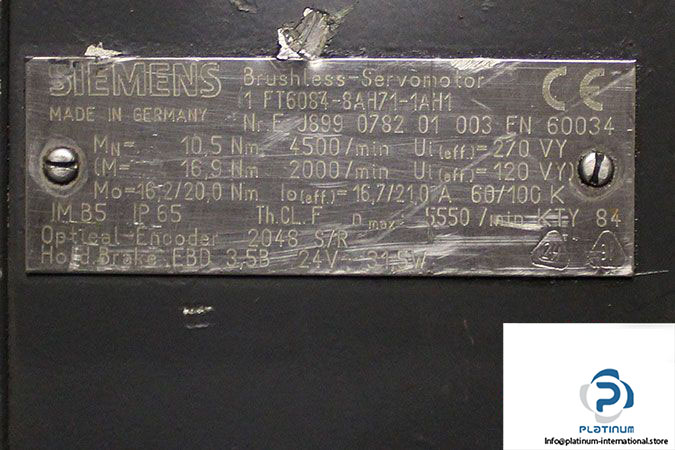

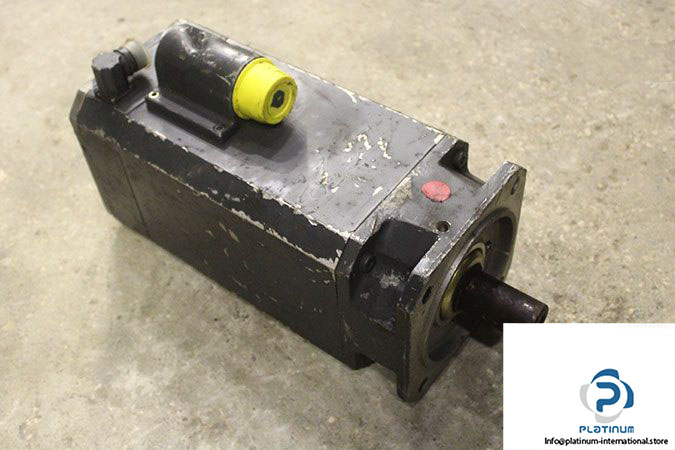

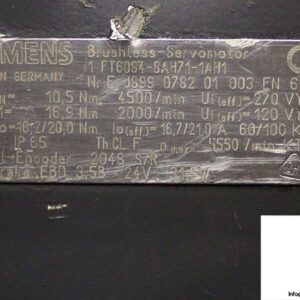

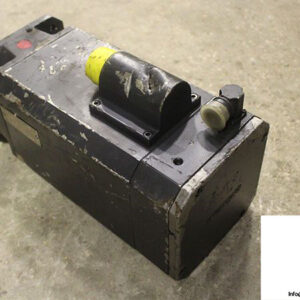

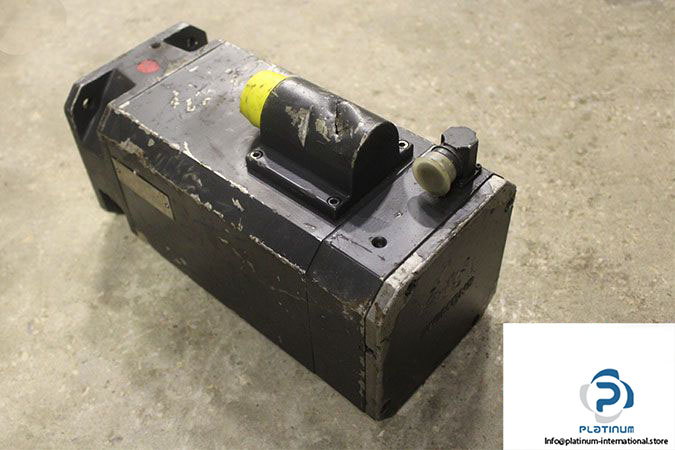

Siemens 1FT6084-8AH71-1AH1 Synchronous Servo Motor

The Siemens 1FT6084-8AH71-1AH1 is a high-performance synchronous servo motor built for precise motion control in industrial environments. Designed for maximum efficiency and dynamic response, it offers excellent torque density and protection in demanding automation systems.

Manufacturer: Siemens

Type: Synchronous Servo Motor

Model: 1FT6084-8AH71-1AH1

Technical Information:

• Rated Speed (100 K): 4500 rpm
• Rated Speed (60 K): 2000 rpm
• Maximum Speed: 5550 rpm
• Rated Voltage (100 K): 270 V (Star)
• Rated Voltage (60 K): 120 V (Star)
• Rated Torque (100 K): 10.5 Nm
• Rated Current (100 K): 12.5 A
• Stall Torque (60 K): 16.2 Nm
• Stall Torque (100 K): 20 Nm
• Stall Current (60 K): 16.7 A
• Stall Current (100 K): 21.0 A
• Maximum Torque: 65 Nm
• Maximum Current: 86 A
• Torque Constant: 1.01 Nm/A
• Voltage Constant: 64 V/1000 rpm
• Number of Poles: 8
• Degree of Protection: IP64
• Mounting Position: B5
• Thermal Class: F
