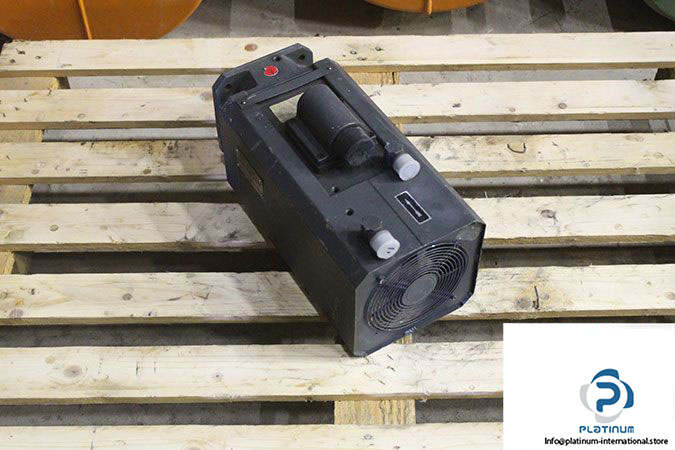

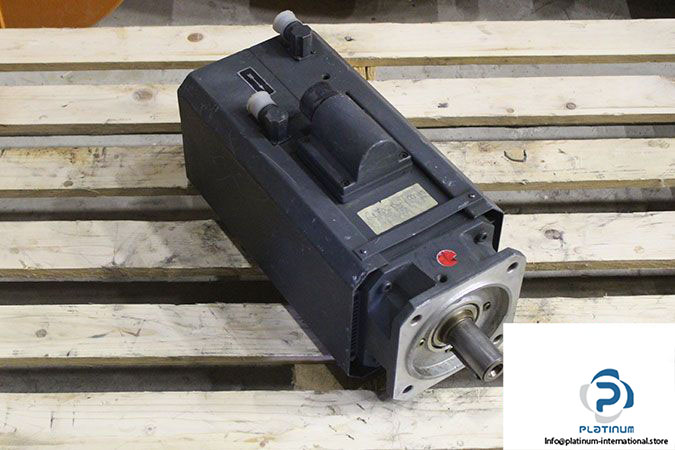

SIEMENS 1FT6 084-8SH71-3AA0 BRUSHLESS SERVO MOTOR

Siemens 1FT6 084-8SH71-3AA0 is a high-performance brushless servo motor built to deliver precision motion control in industrial automation environments. With a compact frame size and high static and rated torque, this motor supports dynamic speed and torque demands for advanced machine operations.

Manufacturer: Siemens
Type: Brushless Servo Motor
Model: 1FT6 084-8SH71-3AA0
Part No.: P921 4507 01 001
Standard: EN 60034
Series: 6

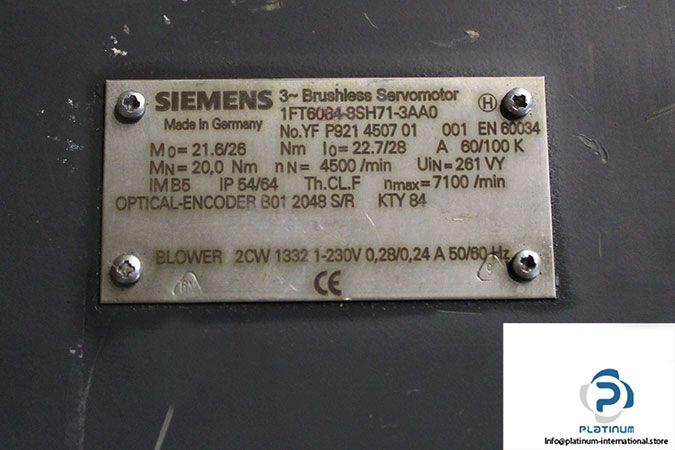

Technical Information

• Frame Size: 08
• Length: 4
• Rated Voltage: 261 V
• Static Torque: 21.6 / 26 Nm
• Rated Torque: 20 Nm
• Stall Current: 22.7 / 28 A
• Rated Speed: 4500 rpm
• Maximum Speed: 7100 rpm
• Blower Type: 2CW 1332
• Blower Voltage: 230 V
• Blower Current: 0.28 / 0.24 A
• Blower Frequency: 50/60 Hz
• Mounting Position [IM]: B5
• Protection Class [IP]: 54/64
• Thermal Class: F
• Encoder Model: B01 2048 S/R
