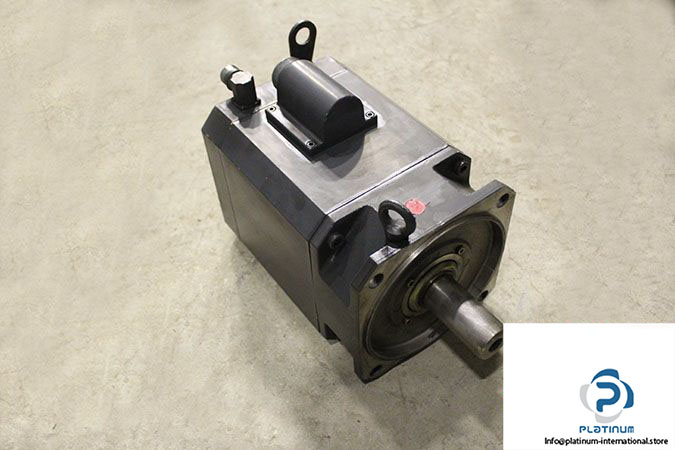

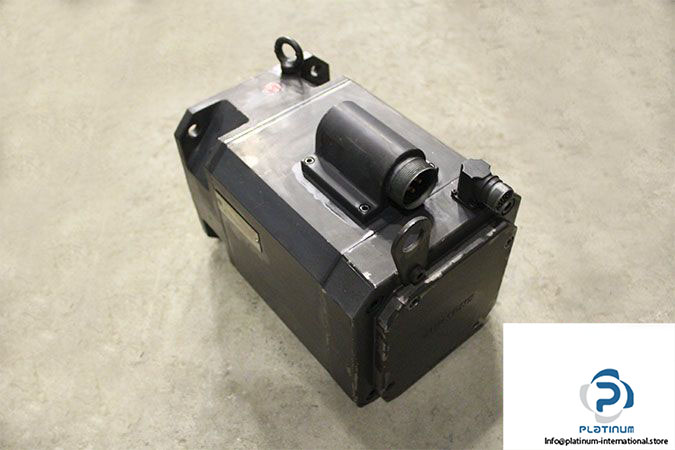

SIEMENS 1FT6102-1AC71-1AG1 SYNCHRONOUS SERVO MOTOR

This advanced synchronous servo motor from Siemens is designed to deliver high-performance motion control in demanding industrial environments. With a rated torque of up to 25 Nm and a maximum speed of 2600 rpm, it ensures precise positioning and efficient operation. Ideal for continuous duty applications.

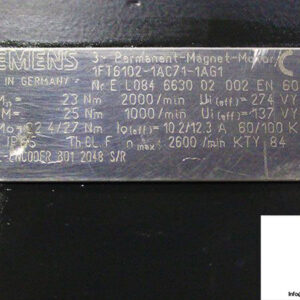

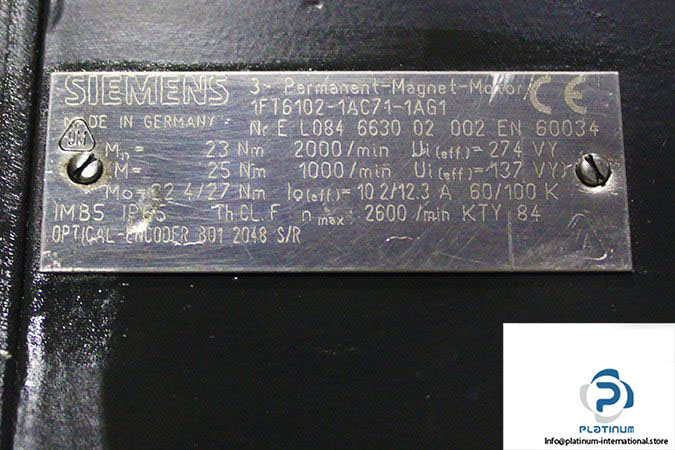

Manufacturer: Siemens
Type: Synchronous Servo Motors
Model: 1FT6102-1AC71-1AG1
Nr. E: L084 6630 02 002
Series: 6
Frame Size: 10
Length: 2

Technical Information

• Rated Voltage [V]: 274 / 137
• Rated Torque [Nm]: 23 / 25
• Rated Speed [rpm]: 2000 / 1000
• Max. Speed [rpm]: 2600
• Standstill Current [A]: 10.2 / 12.3
• Standstill Torque [Nm]: 22.4 / 27
• Encoder: B01 2048 S/R
• Duty: S1 Continuous
• Mounting Position [IM]: B5
• Protection Class [IP]: 65
• Thermal Class: F
