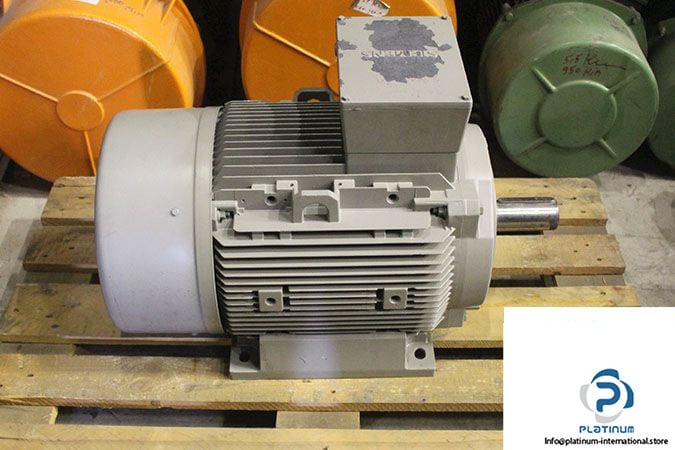

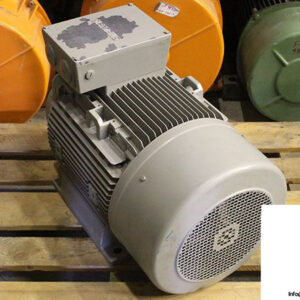

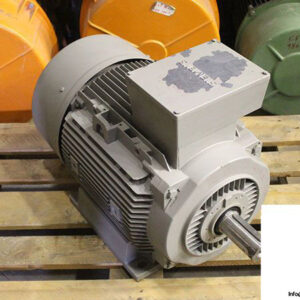

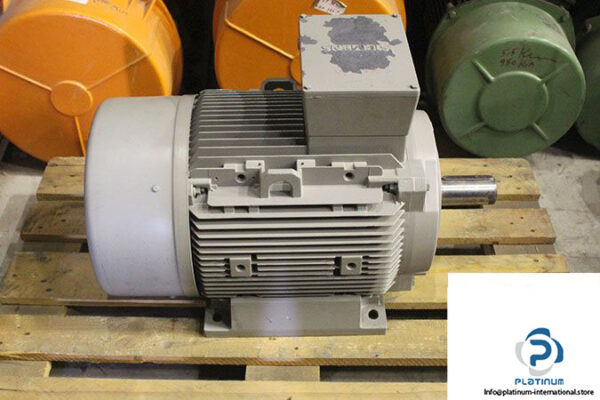

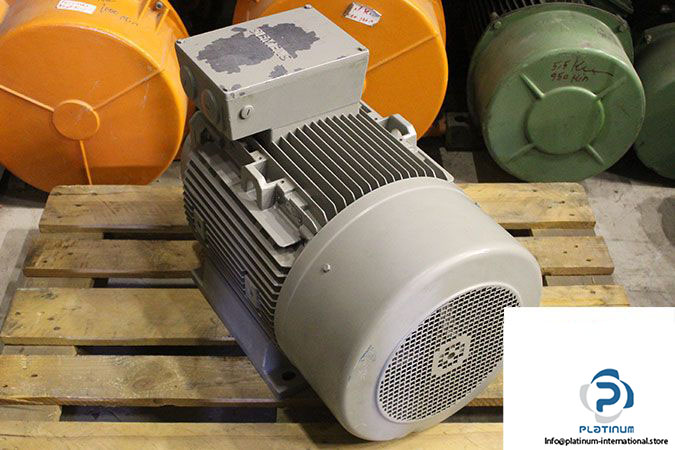

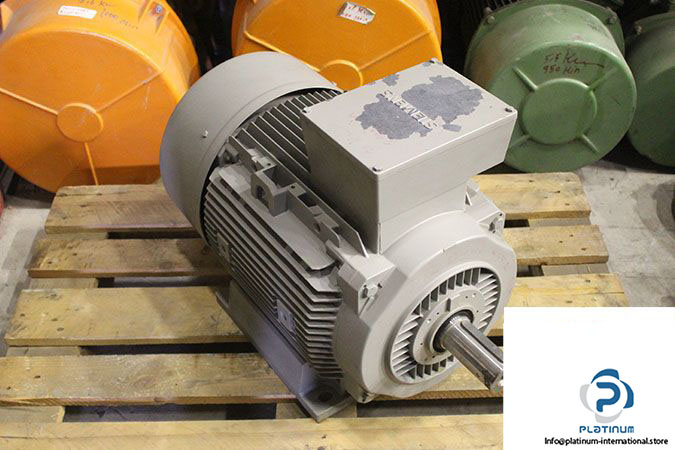

SIEMENS 1LA5206-2AA90-Z 3-PHASE E-MOTOR

The Siemens 1LA5206-2AA90-Z is a powerful and efficient 3-phase electric motor engineered for industrial-grade applications requiring consistent high-speed rotation and energy efficiency. With a 30 kW power output, robust insulation, and high protection class, this motor is well-suited for demanding mechanical environments.

Manufacturer: Siemens
Type: 3 Phase E-Motor
Model: 1LA5206-2AA90-Z
Part No.: EL188 9552 01001

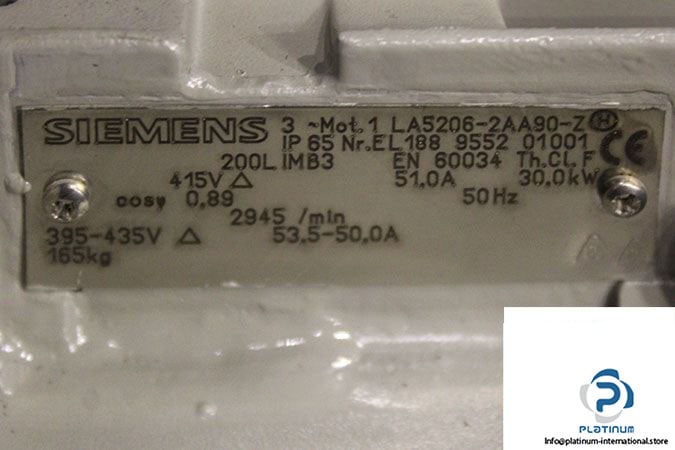

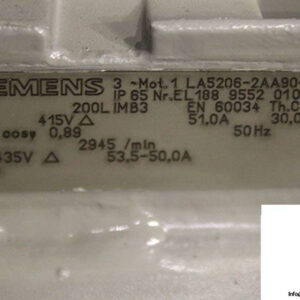

Technical Information

• Rated Voltage: 415 V (Delta)
• Rated Current: 51.0 A
• Rated Speed: 2945 rpm
• Rated Power: 30 kW
• Power Factor (cosø): 0.89
• Frequency: 50 Hz
• Voltage Range: 395“435 V (Delta)
• Current Range: 50.0“53.5 A
• Mounting Position (IM): B3
• Protection Class (IP): 55
• Insulation Class: F
