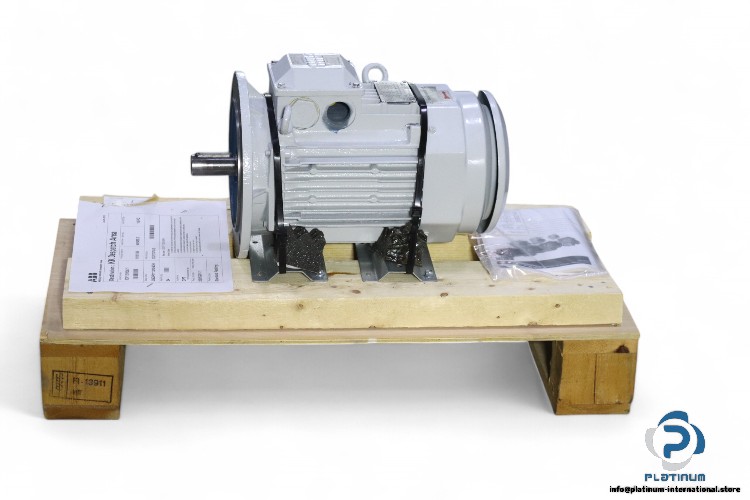

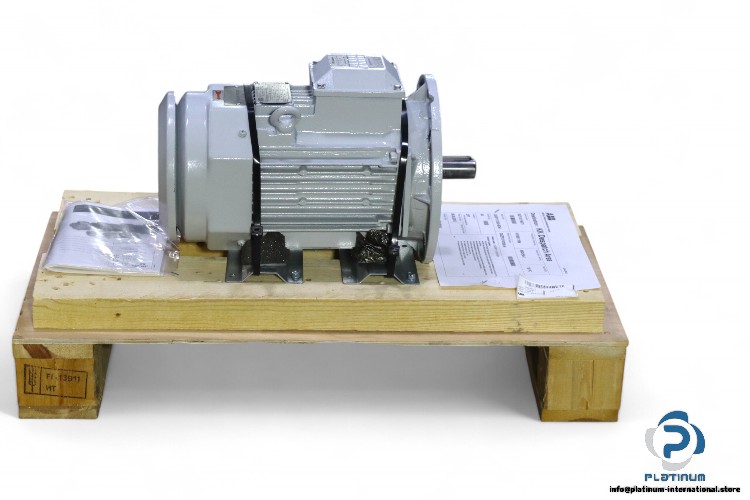

ABB M3BA 112 MB-2 (3GBA111322-BSB) 3-PHASE Electric Motor

ABB M3BA 112 MB-2 3-Phase Electric Motor

The ABB M3BA 112 MB-2 3-Phase Electric Motor is designed for high efficiency and reliable performance in various industrial applications. With a rated power of 4 kW, it offers excellent power output and reliability under demanding conditions. The motor is explosion-protected and built to handle different voltages with ease.

Manufacturer: ABB

Type: 3-Phase Electric Motor

Model: M3BA 112 MB-2 (M3GP 112MB 2)

Part No.: 3GBA111322-BSB (3GGP111320-BDH)

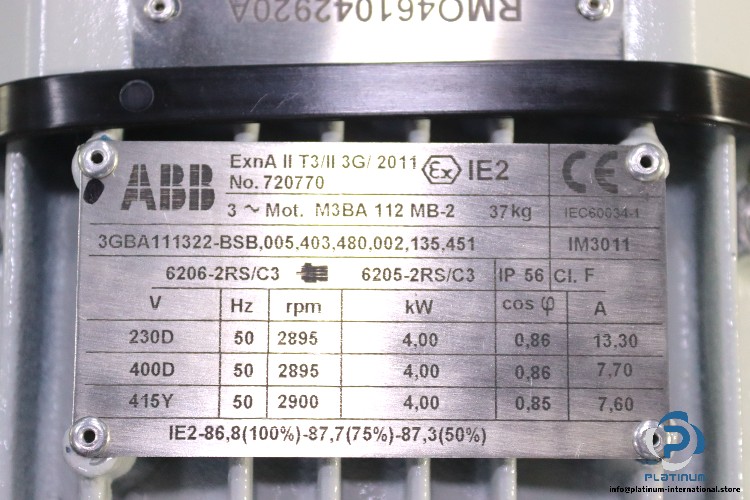

Technical Specifications

• Explosion Protection: ExnA II T3/II 3G (Ex)
• Frame Size: 112
• Rated Voltage [V]: 230D/400D/415Y
• Rated Speed: 2895/2895/2900 RPM
• Rated Frequency: 50 Hz
• Rated Power: 4 kW
• Power Factor: 0.86/0.86/0.85
• Rated Current: 13.3/7.7/7.6 A
• Insulation Class: F
• Protection Class: IP56
