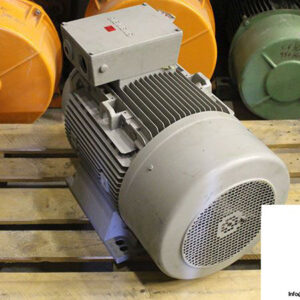

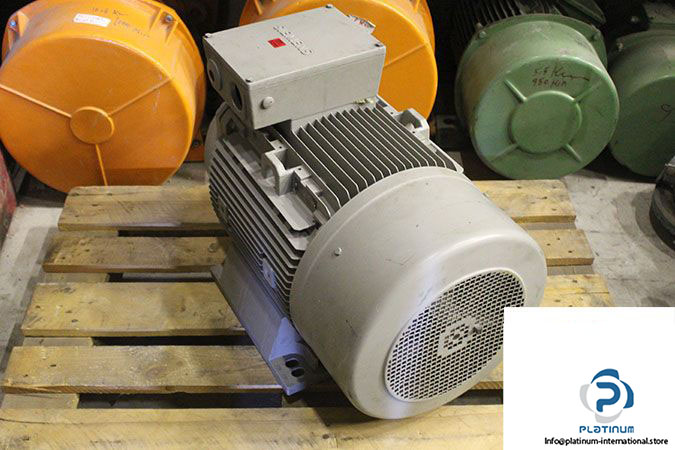

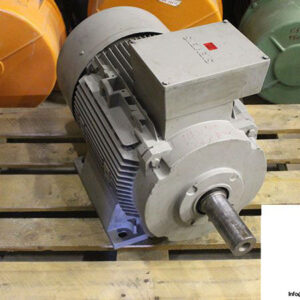

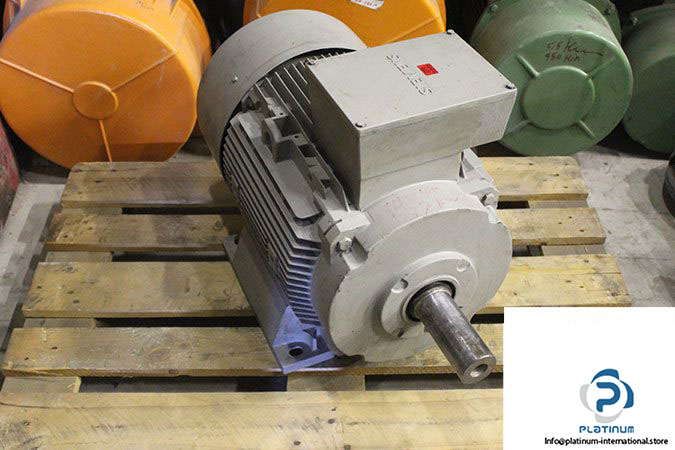

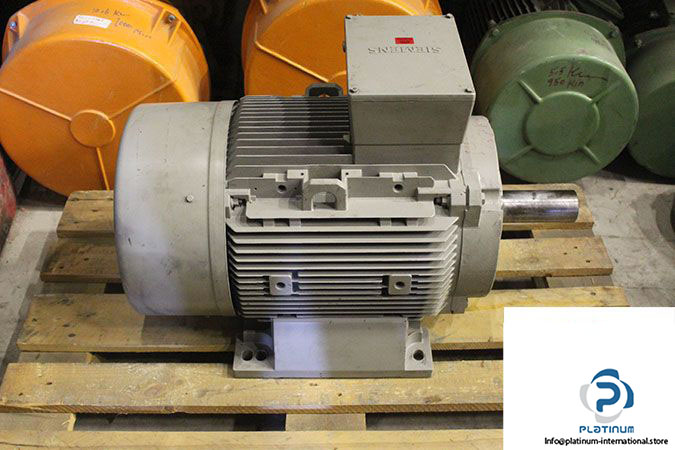

SIEMENS 1LA5220-4AA10-Z 3 PHASE E-MOTOR

The Siemens 1LA5220-4AA10-Z is a high-efficiency 3-phase electric motor built for demanding industrial environments. With dual-frequency capabilities (50/60 Hz), this motor ensures versatile operation across global power standards. It features robust construction, high thermal endurance, and reliable performance for continuous duty applications.

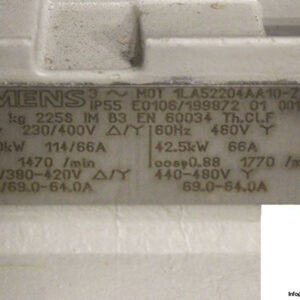

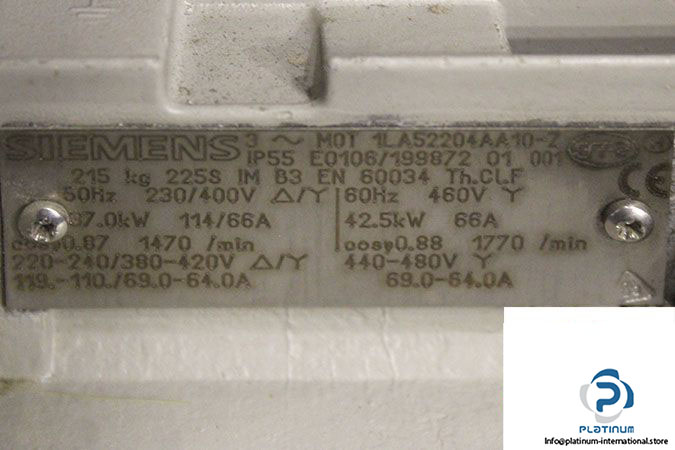

Manufacturer: Siemens
Type: 3 Phase E-Motor
Model: 1LA5220-4AA10-Z
Part No.: E0106/1998/2 01 001

Technical Specifications

• Rated Voltage (50 Hz): 230/400 V (Delta/Star)
• Rated Current (50 Hz): 114/66 A
• Rated Speed (50 Hz): 1470 rpm
• Rated Power (50 Hz): 37.0 kW
• Power Factor (50 Hz): 0.87
• Frequency: 50 Hz
• Rated Voltage (60 Hz): 460 V (Star)
• Rated Current (60 Hz): 66 A
• Rated Speed (60 Hz): 1770 rpm
• Rated Power (60 Hz): 42.5 kW
• Power Factor (60 Hz): 0.88
• Frequency: 60 Hz
• Mounting Position (IM): B3
• Protection Class: IP55
• Insulation Class: F
