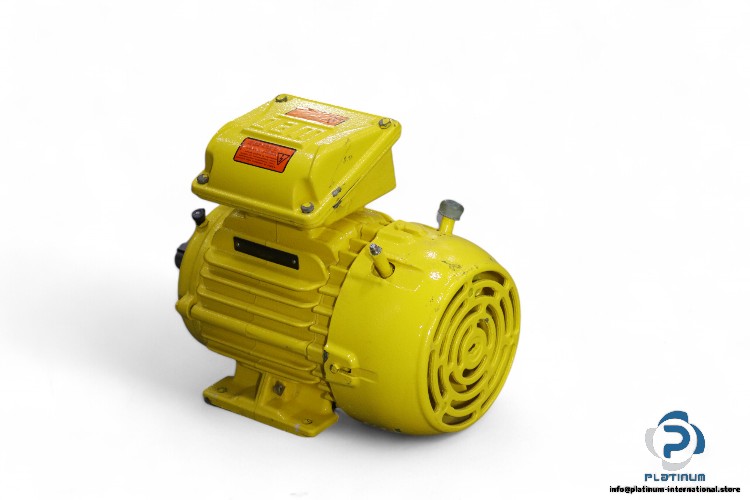

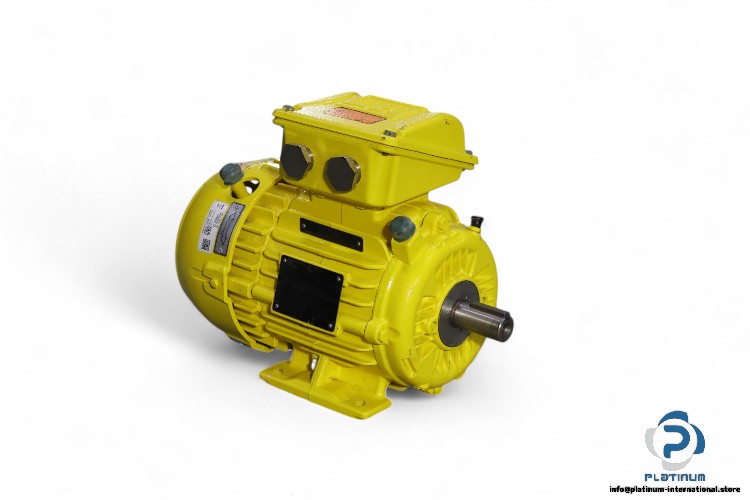

WEG L90S-02 3-PHASE Electric Motor

WEG L90S-02 3-PHASE Electric Motor

The WEG L90S-02 3-Phase Electric Motor is designed for high-efficiency performance, offering robust power output and reliability. With explosion protection (W22XEC) and a durable construction, this motor is ideal for various industrial applications. Its features include a rated power of 2.2 kW, rated speed of 3470 RPM, and protection class IP56 for superior durability in harsh environments.

Manufacturer: WEG

Type: 3-PHASE Electric Motor

Model: L90S-02

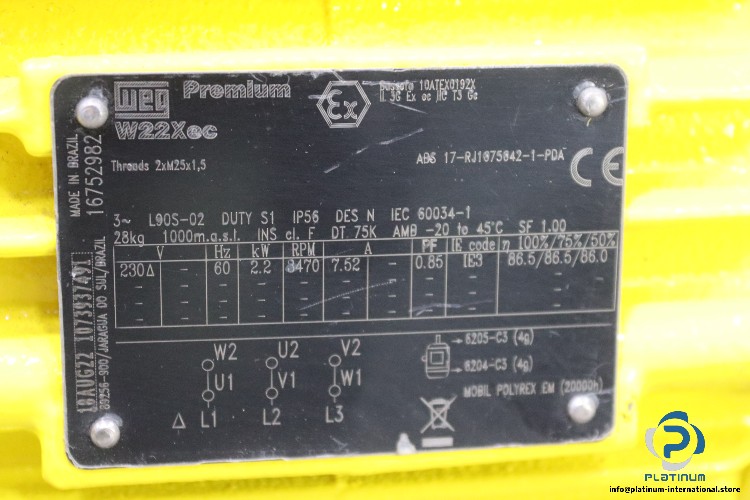

Technical Specifications

• Explosion Protection: W22XEC (Ex)
• Frame: L90S
• Number of Poles: 2
• Rated Voltage [V]: 230D
• Rated Speed: 3470 RPM
• Rated Frequency: 60 Hz
• Rated Power: 2.2 kW
• Power Factor: 0.85
• Rated Current: 7.52 A
• Insulation Class: F
• Protection: IP56
• Duty: S1
• Ambient Temperature: -20 to 45 °C
