WEG 80-04 3-PHASE Electric Motor

WEG 3-PHASE Electric Motor 80-04

The WEG 3-Phase Electric Motor 80-04 is designed for high-efficiency operation with explosion protection features, providing reliable performance in hazardous environments. With a rated power of 0.55 kW, a speed of 1730 RPM, and protection class IP56, it ensures robust and safe operation under various industrial conditions.

Manufacturer: WEG

Type: 3-PHASE Electric Motor

Model: 80-04

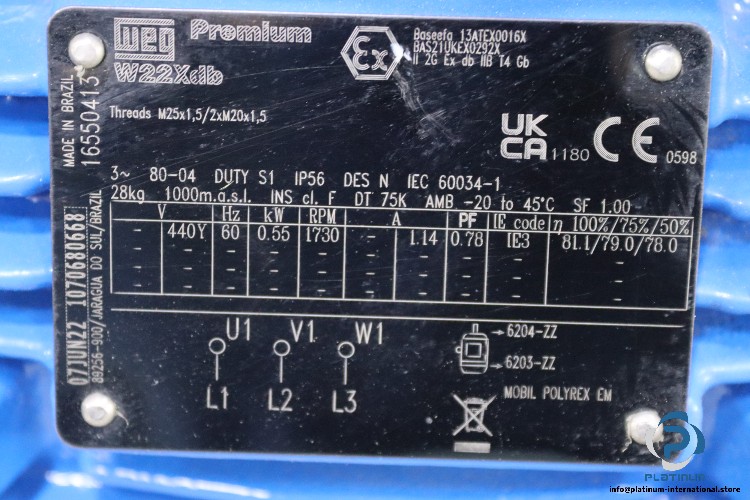

Technical Specifications

• Explosion Protection: II 2G Ex db IIB T4 Gb (Ex)
• Frame: 80
• Rated Voltage [V]: 440Y
• Rated Speed: 1730 RPM
• Rated Frequency: 60 Hz
• Rated Power: 0.55 kW
• Power Factor: 0.78
• Rated Current: 1.14 A
• Insulation Class: F
• Protection: IP56
• Duty: S1
• Ambient Temperature: -20 to 45 °C
