WEG 184TD Electric Motor
Used
In stock1 unitReady to ship
electric motor
The WEG Electric Motor 184TD provides 3.7 kW of power, operating at 3485 RPM at 60 Hz and 2850 RPM at 50 Hz with IP55 protection, ideal for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

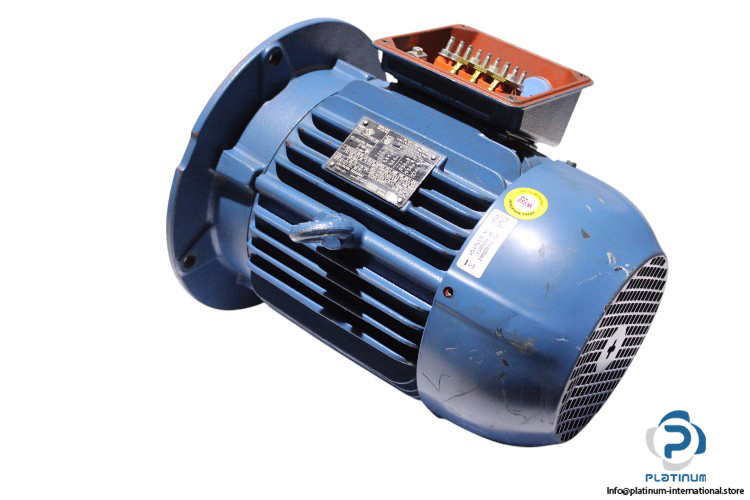

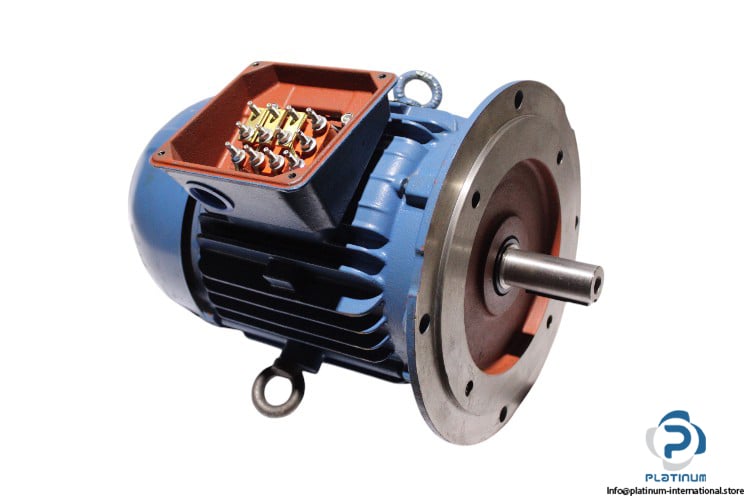

WEG ELECTRIC MOTOR
The WEG Electric Motor (Model: 184TD) is designed for high performance and reliability in industrial applications. With a rated power of 3.7 kW, this motor operates efficiently at both 60 Hz and 50 Hz, offering a high power factor and consistent performance across varying voltages and speeds. Its robust construction with IP55 protection ensures durability in harsh environments.
Manufacturer: WEG
Type: Electric Motor
Model: 184TD

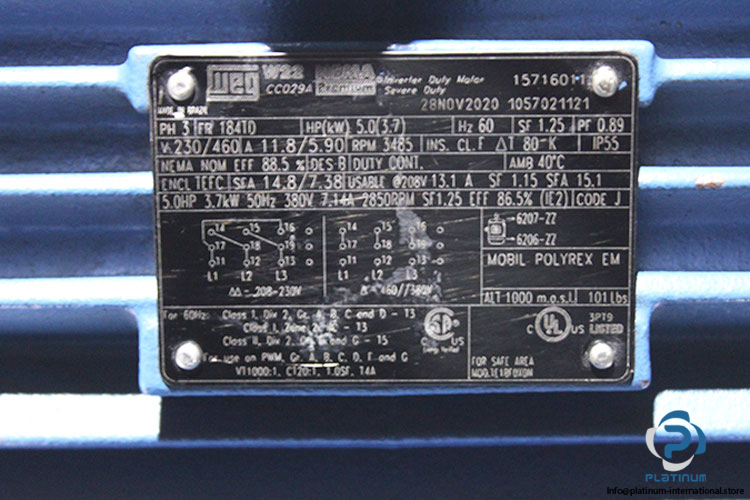

Technical Specifications
At 60 Hz:
- Rated Voltage: 230 / 460 V
- Rated Speed: 3485 RPM
- Rated Power: 3.7 kW
- Power Factor: 0.89
- Rated Current: 11.8 / 5.90 A
At 50 Hz:
- Rated Voltage: 380 V
- Rated Speed: 2850 RPM
- Rated Power: 3.7 kW
- Rated Current: 7.14 A
- Power Factor: 0.89
- Insulation Class: F
- Protection: IP55
- Ambient Temperature: 40 °C
