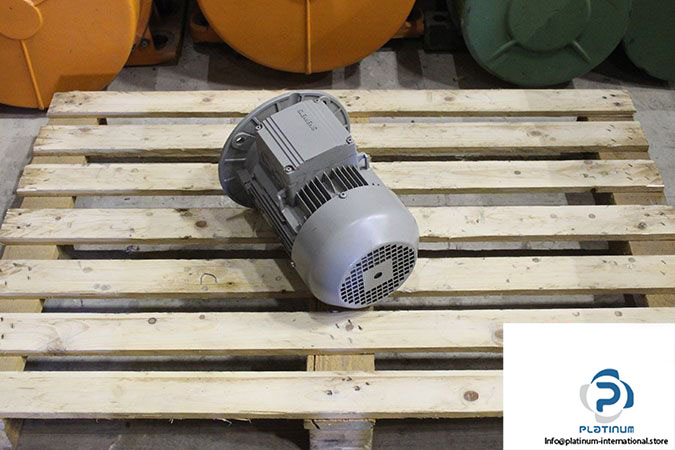

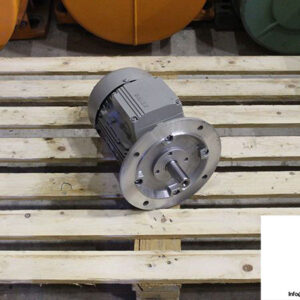

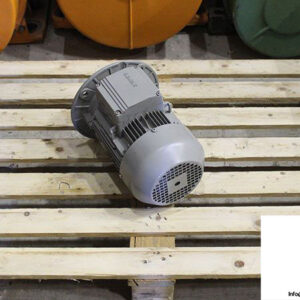

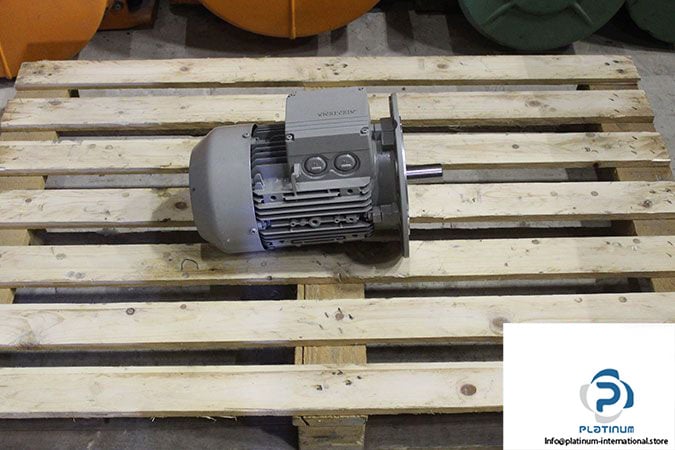

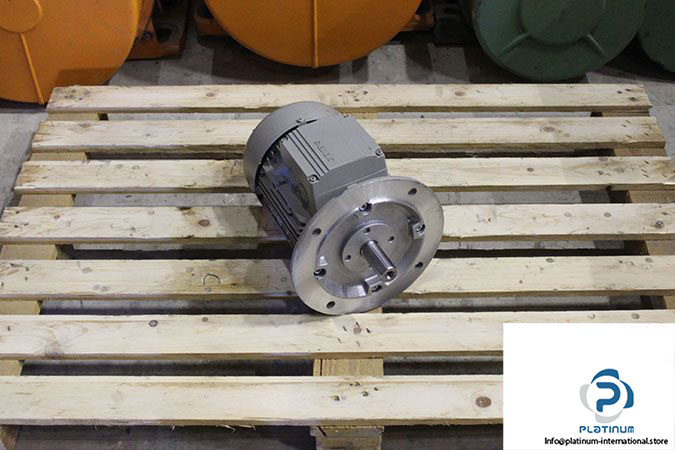

SIEMENS 1LA71074AA91-Z ELECTRIC MOTOR

The Siemens 1LA71074AA91-Z is a high-efficiency 3-phase electric motor engineered for continuous-duty industrial applications. Compliant with IEC/EN 60034 standards, this motor delivers reliable performance and energy savings with a robust B5 mounting design and IP55 protection.

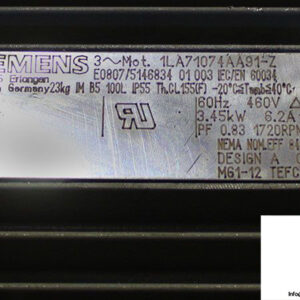

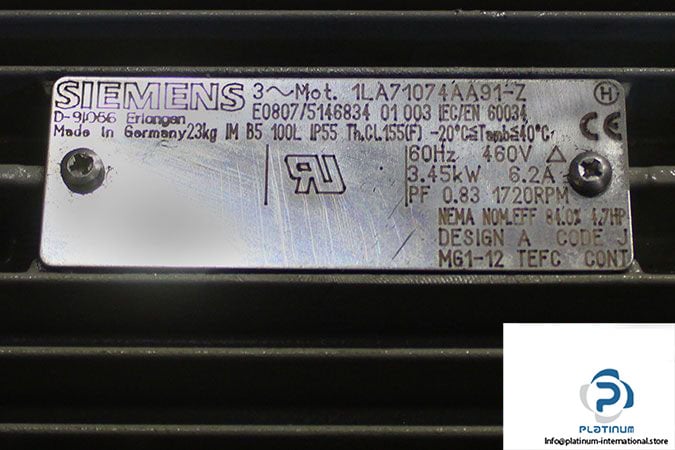

Manufacturer: Siemens
Type: 3 Phase Electric Motor
Model: 1LA71074AA91-Z
Part No.: E0807/5146834 01 003
Standard: IEC / EN 60034
Rated Power [kW]: 3.45
Design: A
Code: J
Rated Speed [rpm]: 1720
Frequency [Hz]: 60
Motor Voltage [V] / Conn. Type: 460 / Delta
Rated Current [A]: 6.2
Ambient Temperature [°C]: -20 / 40
Power Factor: 0.83
Efficiency [%]: 84.0
Design Code: J
Duty: S1
Protection Class [IP]: 55
Mounting Position: B5
Insulation Class: F
