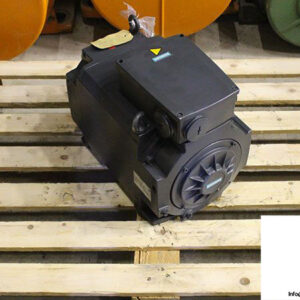

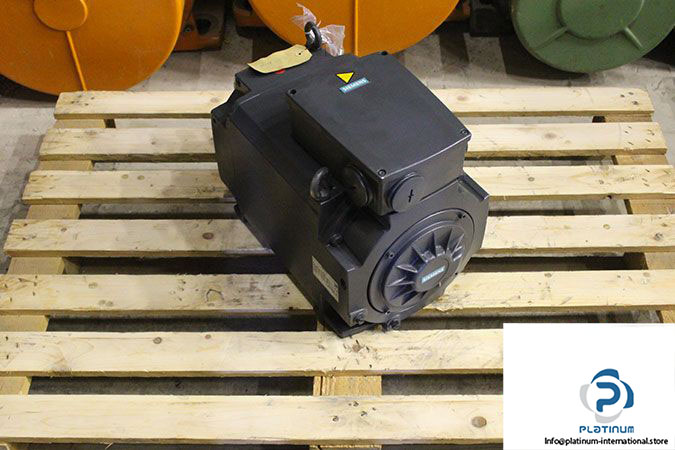

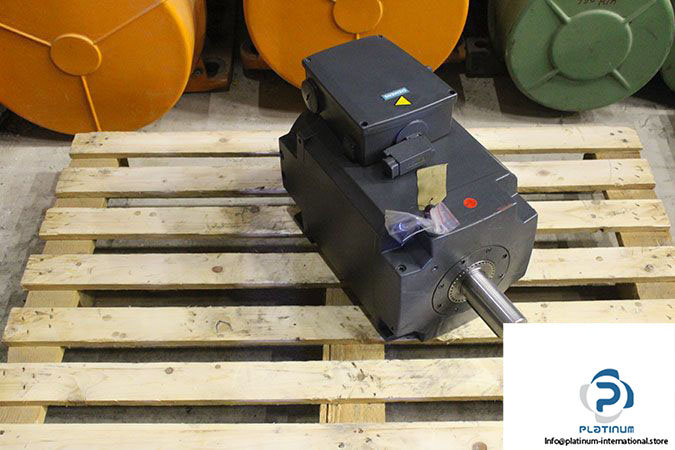

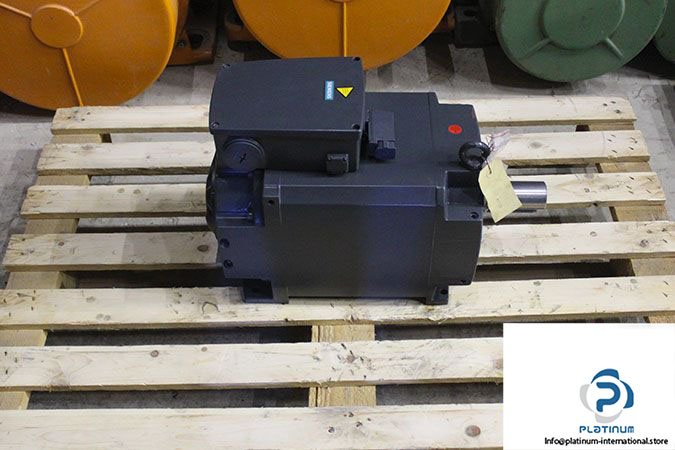

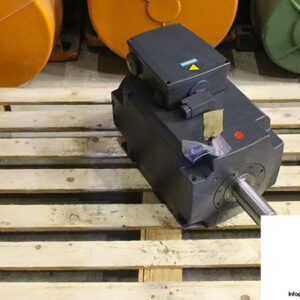

SIEMENS 1PH8135-1DG20-1LA1 ASYNCHRONOUS SERVO MOTOR

The Siemens 1PH8135-1DG20-1LA1 is a high-performance asynchronous servo motor from the SIMOTICS 3 range, engineered for continuous duty and precision control in demanding industrial environments. Its robust design, advanced water-cooling system, and high-speed capabilities make it ideal for automated systems and servo-driven applications.

Manufacturer: Siemens
Type: Asynchronous Servo Motor
Model: 1PH8135-1DG20-1LA1
Part No.: F7617 6618 02 001
Range: SIMOTICS 3

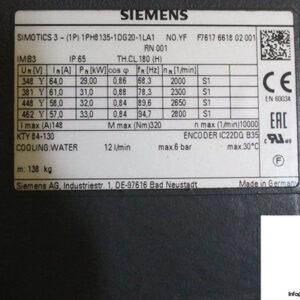

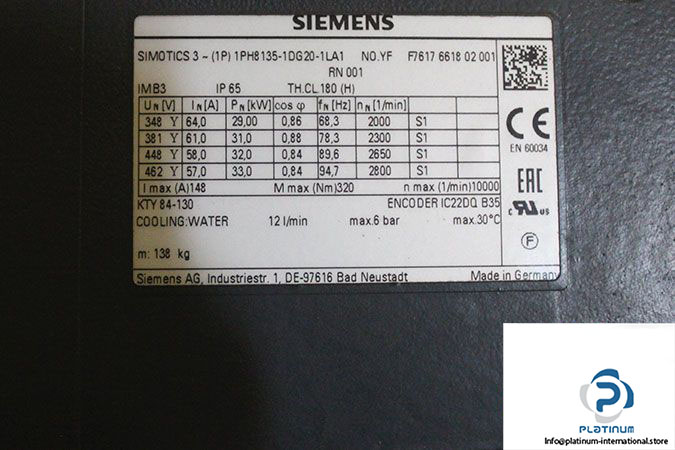

Technical Specifications

• Rated Voltage [V]: 348 / 381 / 448 / 462
• Rated Current [A]: 64 / 61 / 58 / 57
• Rated Power [W]: 29 / 31 / 32 / 33
• Frequency [Hz]: 68.3 / 78.3 / 89.6 / 94.7
• Rated Speed [rpm]: 2000 / 2300 / 2650 / 2800
• Max. Current [A]: 148
• Max. Torque [Nm]: 320
• Max. Speed [rpm]: 10000
• Silicon Temperature Sensors: KTY84-130
• Encoder: IC22DQ B35
• Cooling: Water
• Shaft Height: 132
• Water Quantity [l/min]: 12
• Pressure [bar]: 6
• Temperature [°C]: 30
• Mounting Position [IM]: B3
• Protection Class [IP]: 65
• Duty: S1 Continuous
• Insulation Class: H
