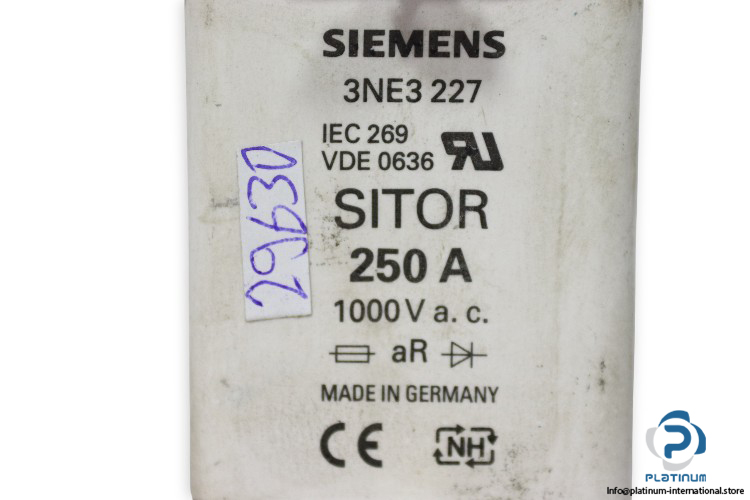

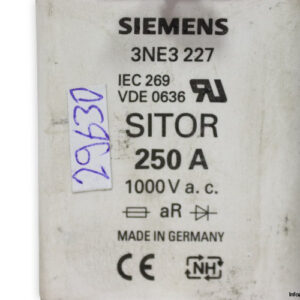

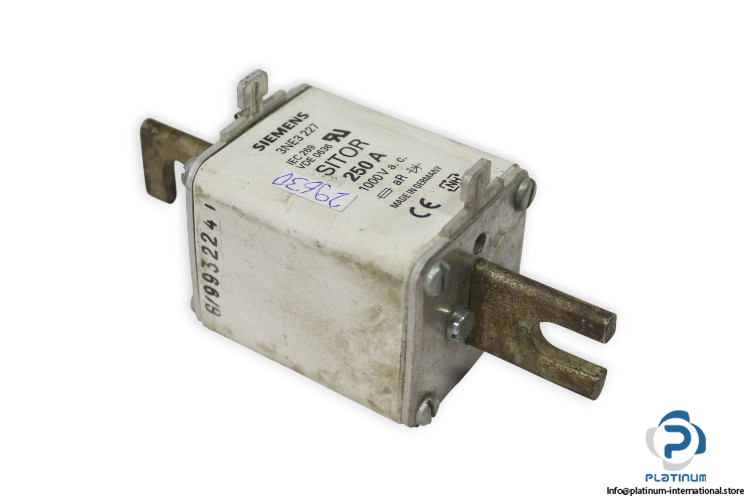

Siemens SENTRON 3NE3227 Fuse-Link
The Siemens SENTRON 3NE3227 is a high-performance fuse-link designed for reliable circuit protection in industrial applications. Built with SITOR LV HRC design, it provides secure operation with excellent switching capacity and durability.
Manufacturer: Siemens
Type: Fuse-Link
Product Brand Name: SENTRON
MRN: 3NE3227
Technical Information
- Design of an Identification Indicator: Front Indicator
- Design of the Fuse Link: SITOR, LV HRC Design
- Size of Fuse System / acc. to DIN EN 60269-1: NH1
- Operating Class of the Fuse Link: aR
- Circuit-Breaker / Design: 3NE
- Operating Voltage: 1000 Vac
- Rated Operating Current: 250 A
- Varying Load Factor (WL): 0.95
- Switching Capacity Current acc. to IEC 60947-2 / Rated Value: 100 kA
- Active Power Loss for Rated Current / with AC / in Hot Operating State / per Pole: 50 W
- Temperature Range: -20 / 50 °C
- Standard: IEC 269, VDE 0636
