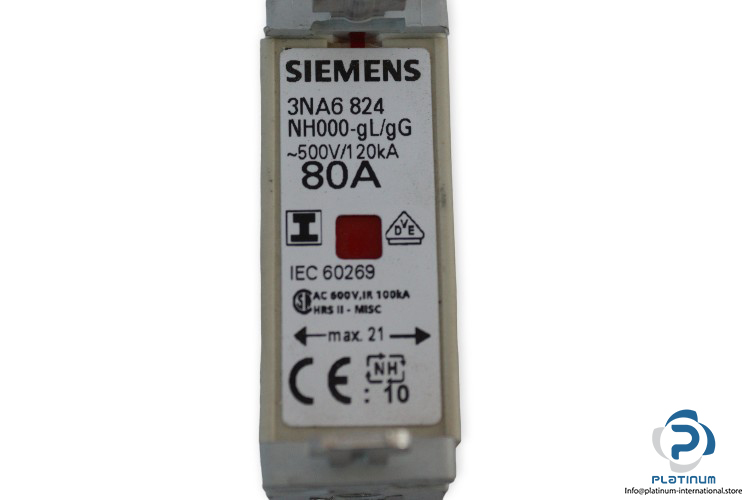

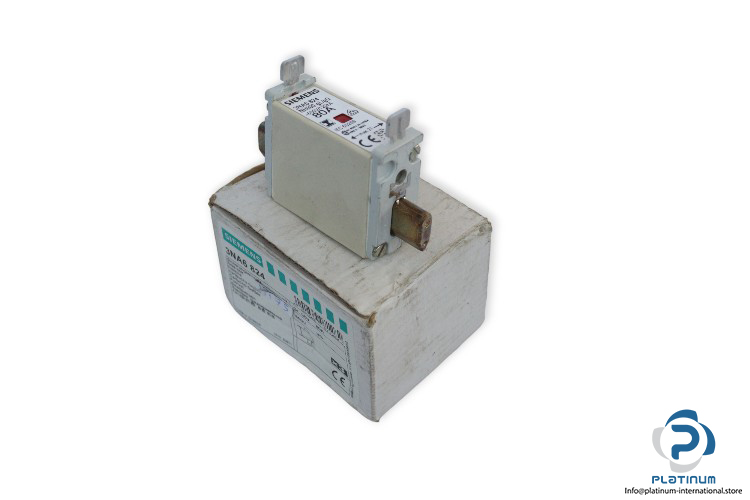

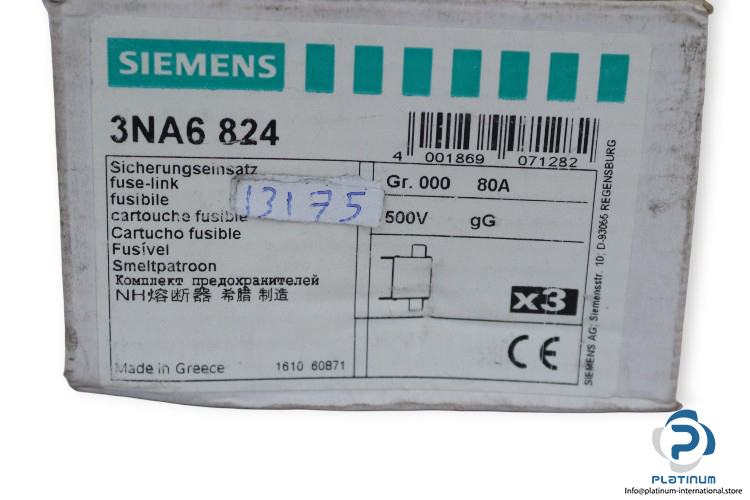

Siemens 3NA6 824 LV HRC Fuse Element

Manufacturer: SIEMENS
Type: LVHRC Fuse Element
Model: 3NA6824

Brand Name: SENTRON
Size: NH000
Designation: LV HRC Fuse Links / with Blade Contacts
Rated Current: 80 A
Supply Voltage: 500 V AC / 250 V DC
Switching Capacity Current: 120 kA
Switching Capacity Current: 25 kA / DC
Power Loss: 5.8 W
Operating Class: gG
Mounting Type: Insulated Grip Lugs
Mounting Position: Any, Preferably Vertical
Identification Indicator: Combination Alarms
Protection Proof: IP20
Ambient Temperature: -5 … 40 °C
Dimensions: 80 x 45 x 21 mm
