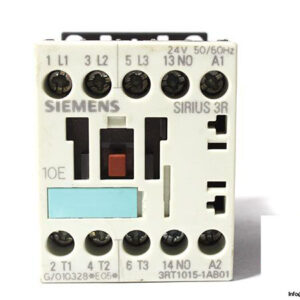

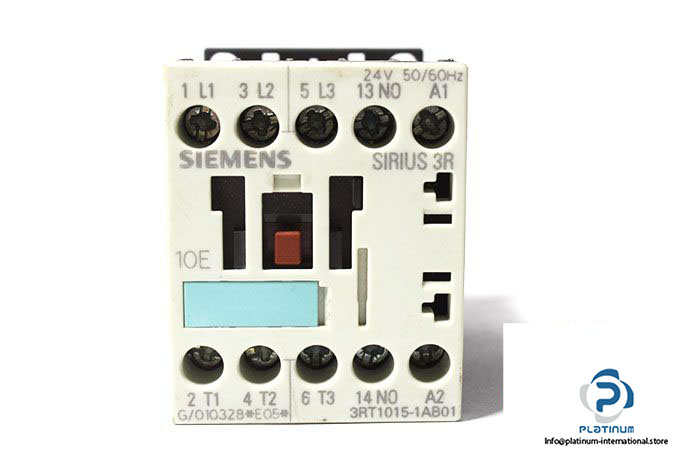

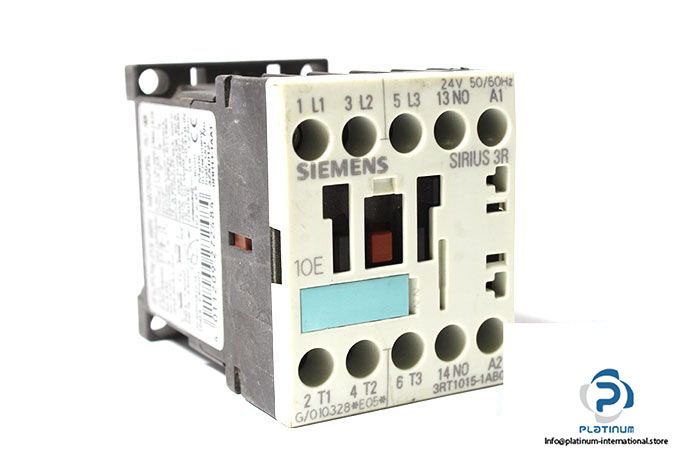

SIEMENS SIRIUS 3RT1015-1AB01 POWER CONTACTOR
The Siemens Sirius 3RT1015-1AB01 is a compact and reliable power contactor designed for efficient control of electrical loads in industrial and commercial applications. Built to meet IEC 60947 and VDE 0660 standards, it ensures dependable performance, long service life, and safe operation under demanding conditions.
Manufacturer: Siemens
Type: Power Contactor
Brand Name: Sirius
Model: 3RT1015-1AB01
Successor Type: 3RT2015-1AB01
Technical Information
- Size: S00
- Control Supply Voltage: 24 V AC
- Control Supply Voltage Frequency: 50 / 60 Hz
- Rated Operating Power: 3 kW (400 V AC)
- Rated Operating Current: 6 A (230 V AC), 3 A (400 V AC)
- Auxiliary Contacts: 1 Normally Open (1NO)
- Standard: IEC 60947 / VDE 0660
- Protection Class IP: IP20
- Operation Ambient Temperature: -25 / 60 °C
- Dimensions (W x D x H): 45 x 72 x 57.5 mm
