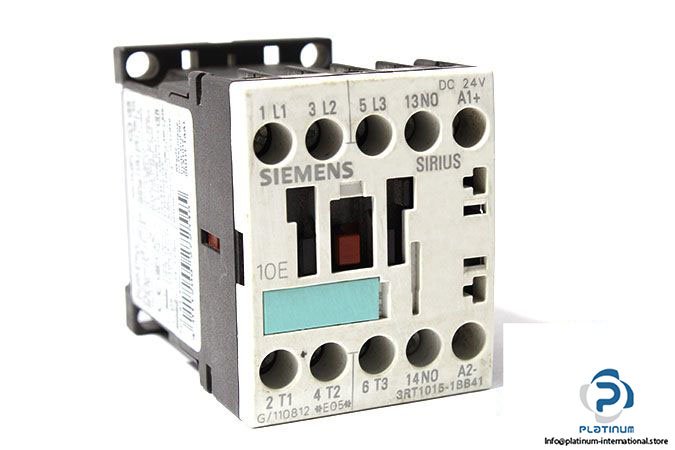

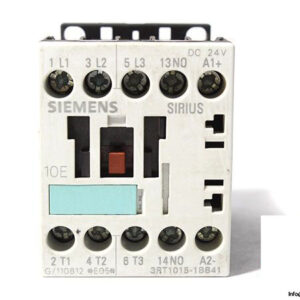

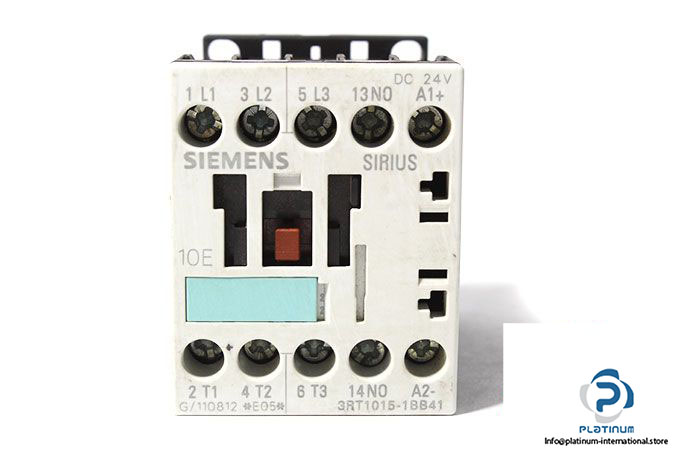

SIEMENS SIRIUS 3RT1015-1BB41 POWER CONTACTOR
The Siemens Sirius 3RT1015-1BB41 is a compact and efficient power contactor designed for reliable switching of motor loads and other electrical circuits. Engineered to meet IEC/EN 60947-4-1 standards, it offers robust performance, durability, and easy integration into industrial control systems.
Manufacturer: Siemens
Type: Power Contactor
Brand Name: Sirius
Model: 3RT1015-1BB41
Successor Type: 3RT2015-1BB41
Size: S00

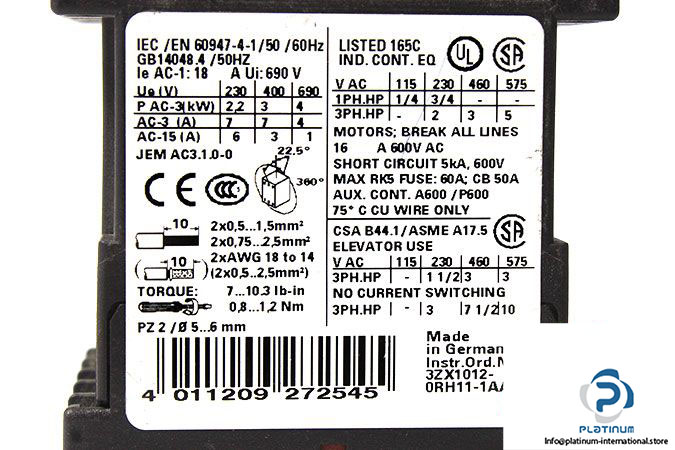

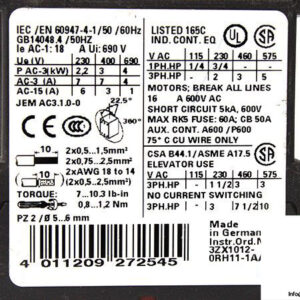

Technical Information
- Control Supply Voltage: 24 V DC
- Rated Operating Power: 3 kW (400 V AC)
- Rated Operating Current: 6 A (230 V AC), 3 A (400 V AC)
- Auxiliary Contacts: 1 Normally Open (1NO)
- Standard: IEC/EN 60947-4-1
- Protection Class: IP20
- Operating Ambient Temperature: -25 / 60 °C
- Dimensions (W x D x H): 45 x 72 x 57.5 mm
