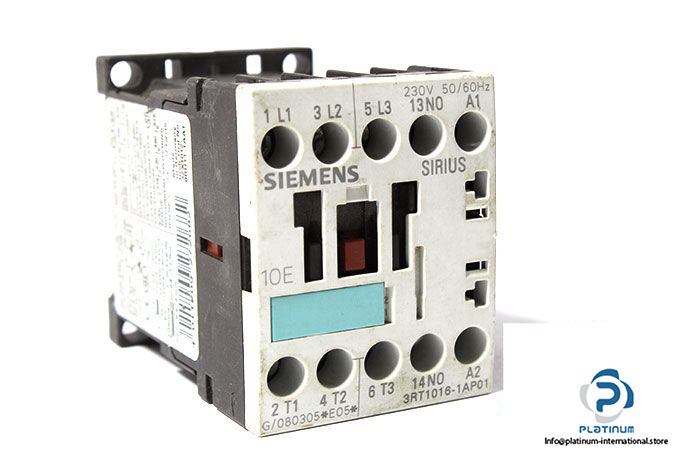

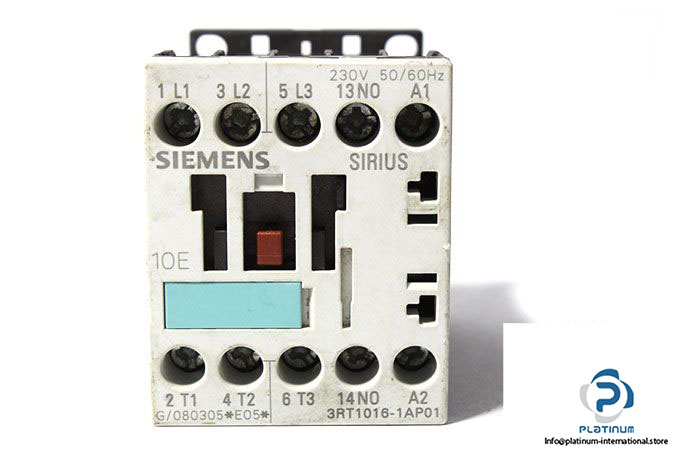

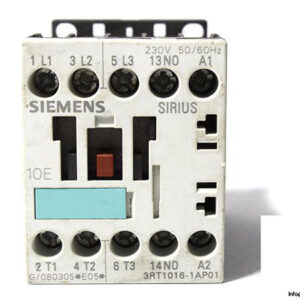

SIEMENS SIRIUS 3RT1016-1AP01 POWER CONTACTOR
The Siemens Sirius 3RT1016-1AP01 is a compact and reliable power contactor designed for switching and controlling electric motors and other high‘power loads. Built to IEC / EN 60947‘4‘1 standards, this S00‘size unit delivers dependable performance in industrial automation and control applications.
Manufacturer: Siemens
Type: Power Contactor
Brand Name: Sirius
Model: 3RT1016-1AP01
Successor Type: 3RT2016-1AP01
Size: S00
Technical Information
- Control Supply Voltage: 230 V AC
- Control Supply Voltage Frequency: 50 / 60 Hz
- Rated Operating Power: 4 kW (400 V AC)
- Rated Operating Current: 6 A (230 V AC), 3 A (400 V AC)
- Auxiliary Contacts: 1 Normally Open (1NO)
- Standard: IEC / EN 60947-4-1
- Protection Class: IP20
- Operation Ambient Temperature: -25 / 60 °C
- Dimensions (W x D x H): 45 x 72 x 57.5 mm
