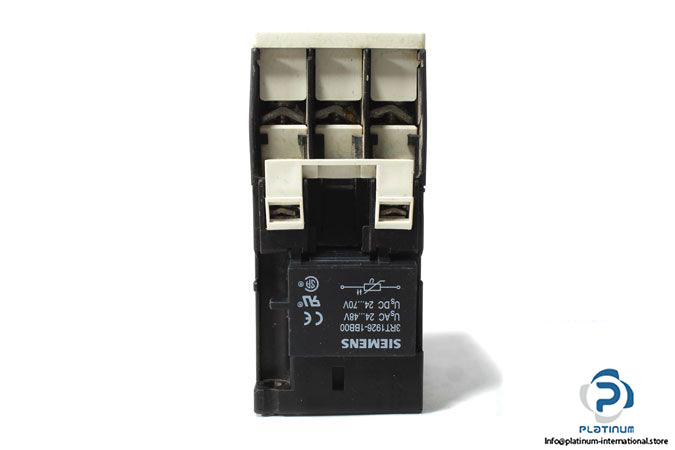

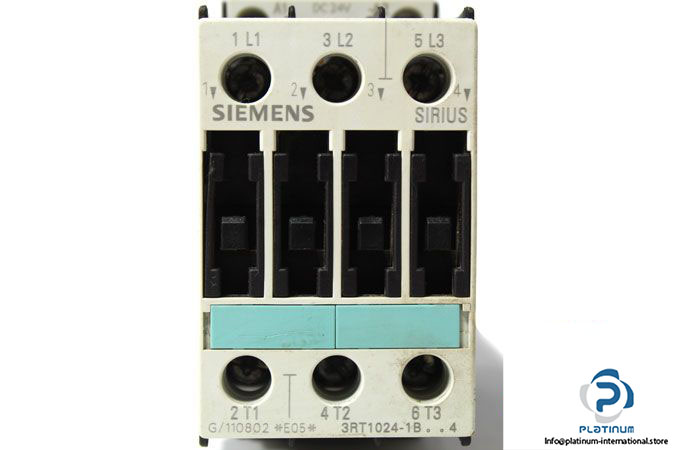

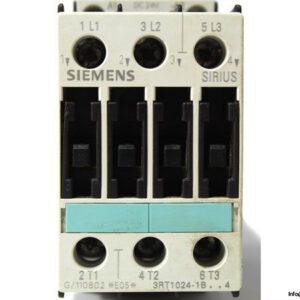

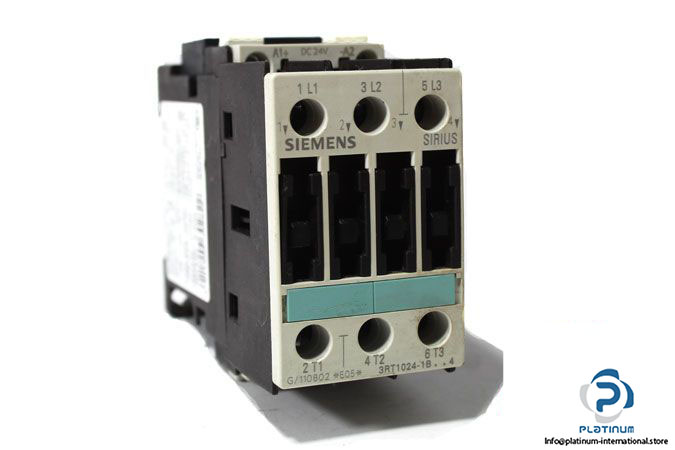

SIEMENS SIRIUS 3RT1 024-1BB44 POWER CONTACTOR

The Siemens Sirius 3RT1 024-1BB44 is a high-quality power contactor designed for reliable motor control and switching applications. Built to IEC/EN 60947-4-1 standards, it offers dependable performance, compact dimensions, and suitability for various industrial environments.

Manufacturer: Siemens
Type: Power Contactor
Brand Name: Sirius
Model: 3RT1 024-1BB44
Successor Type: 3RT2024-1BB44
REF NO: G/110802 E05
Size: S0

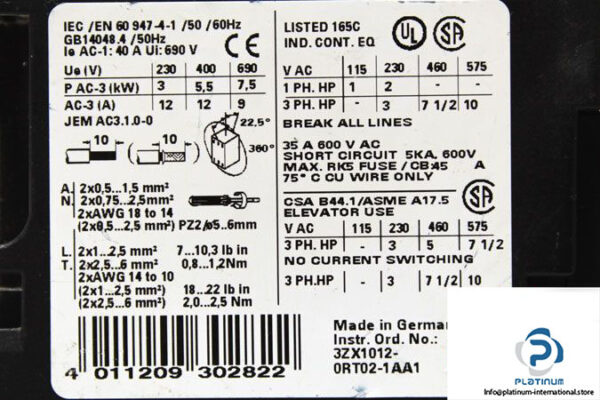

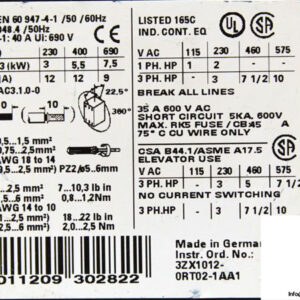

Technical Information

• Control Supply Voltage: 24 V DC
• Rated Operating Power: 5.5 kW (400 V AC)
• Rated Operating Current: 12 A (400 V AC)
• Standard: IEC/EN 60947-4-1
• Protection Class IP: IP20
• Operation Ambient Temperature: -25 / 60 °C
• Dimensions (W x D x H): 45 x 101 x 85 mm
