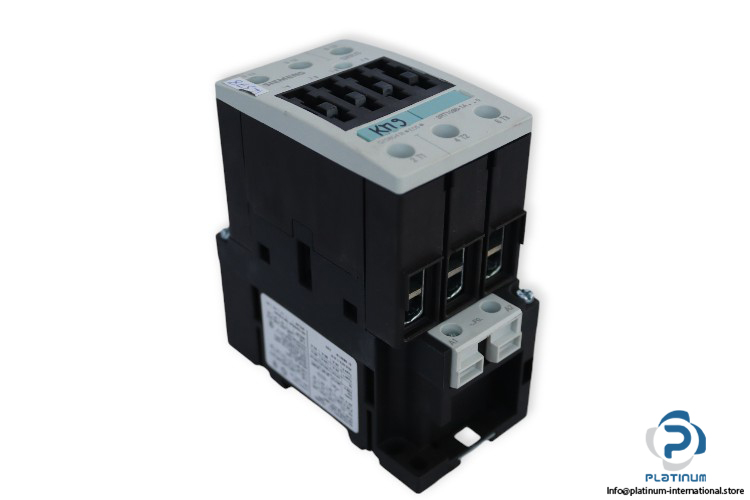

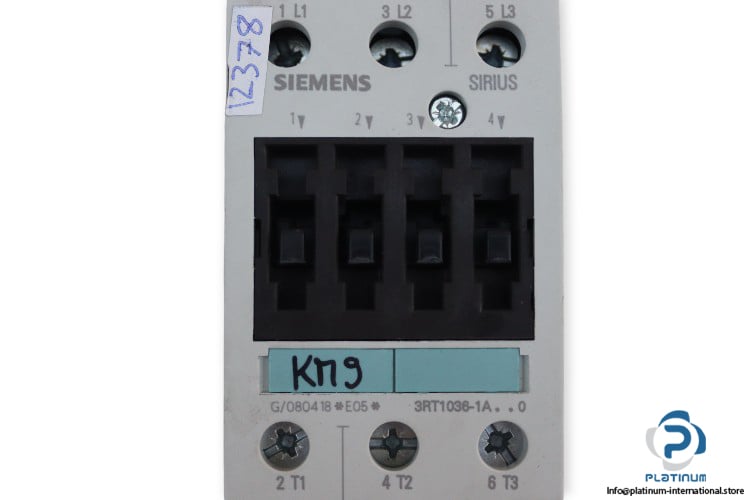

SIEMENS SIRIUS 3RT1036-1AF00 POWER CONTACTOR

The Siemens SIRIUS 3RT1036-1AF00 is a high-quality industrial power contactor designed for reliable control of electric motors and other loads. Engineered for durability and consistent performance, it meets IEC/EN 60947-4-1 standards, making it ideal for demanding industrial environments.

Manufacturer: Siemens
Type: Contactor
MNR: 3RT1036-1AF00
Order No.: 3ZX1012-0RT03-1AA1
Product Brand Name: SIRIUS
Product Designation: Power Contactor
Size of Contactor: S2

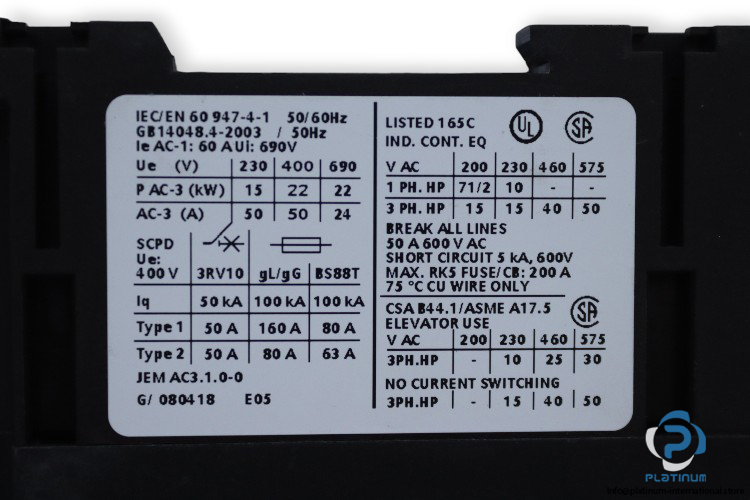

Technical Information

• Rated Insulation Voltage (Ui): 690 V
• Rated Impulse Withstand Voltage (Uimp): 6 kV
• Rated Operational Current AC-1: 60 A
• Rated Operational Current AC-3: 50 A
• Control Supply Voltage: 110 V AC
• Frequency: 50 Hz
• Standard: IEC/EN 60947-4-1
• Rated Operating Power AC-3: 22 kW (400 V AC)
• No. of Poles: 3
• Ambient Temperature: -25 / 60°C
• Protection Degree: IP00
• Type of Electrical Connection: Screw-type Terminals
• Dimensions (W x D x H): 112 x 55 x 115 mm
