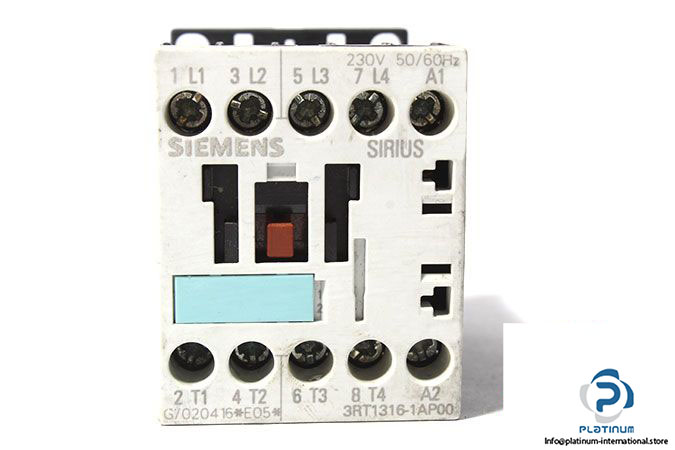

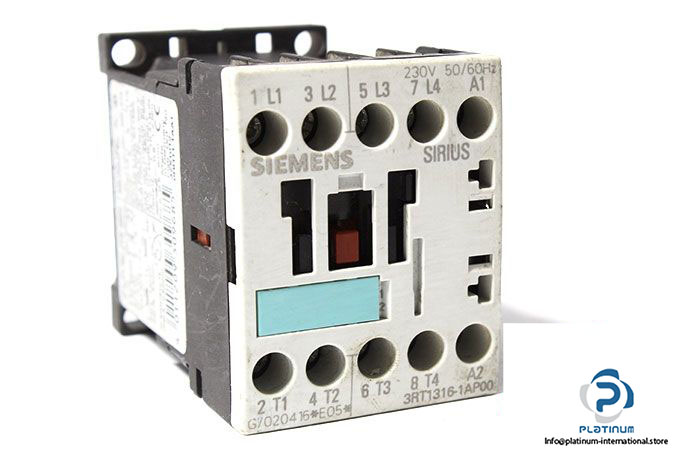

SIEMENS SIRIUS 3RT1 316-1AP00 POWER CONTACTOR

The Siemens Sirius 3RT1 316-1AP00 is a compact and reliable power contactor designed for efficient control of electric motors and other switching operations. Built to meet IEC and VDE standards, this model offers high performance, durability, and safe operation in various industrial environments.

Manufacturer: Siemens
Type: Power Contactor
Brand Name: Sirius
Model: 3RT1 316-1AP00
Successor Type: 3RT2316-1AP00
REF NO: G/020415 E05
Size: S00

Technical Information

• Number of Poles: 4
• Control Supply Voltage: 230 V AC
• Control Supply Voltage Frequency: 50 / 60 Hz
• Rated Operating Power: 4 kW (400 V AC)
• Rated Operating Current: 6 A (230 V AC), 3 A (400 V AC)
• Standard: IEC 60947 / VDE 0660
• Protection Class IP: IP20
• Operation Ambient Temperature: -25 / 60 °C
• Dimensions (W x D x H): 45 x 72 x 57.5 mm
