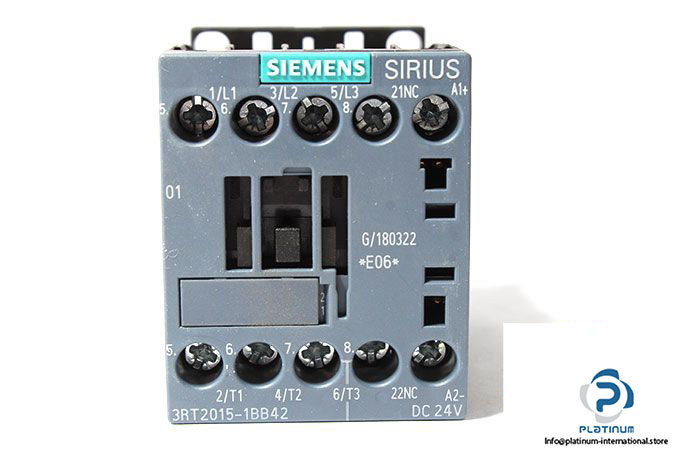

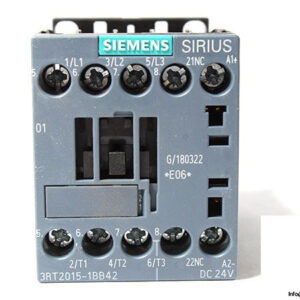

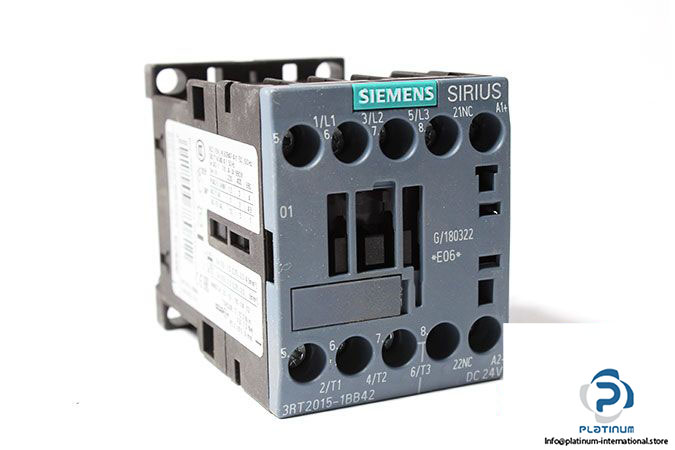

SIEMENS SIRIUS 3RT2015-1BB42 POWER CONTACTOR

The Siemens Sirius 3RT2015-1BB42 is a compact and reliable power contactor designed for efficient switching of motor loads and other electrical circuits. Built to IEC/EN/K 60947-4-1 standards, it offers high performance, safety, and durability in demanding industrial applications.

Manufacturer: Siemens
Type: Power Contactor
Brand Name: Sirius
Model: 3RT2015-1BB42
REF NO: 05180271
Size: S00

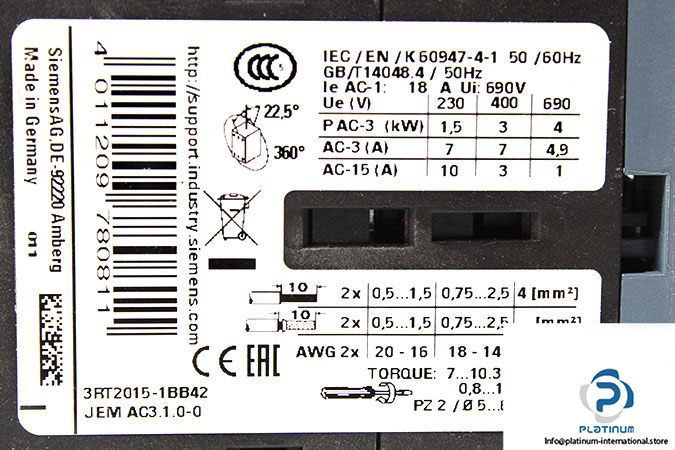

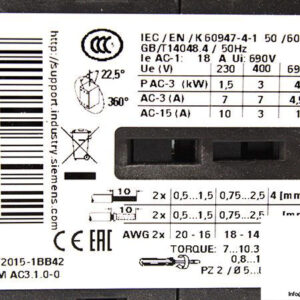

Technical Information

• Control Supply Voltage: 24 V DC
• Rated Operating Power: 3 kW (400 V AC)
• Rated Operating Current: 10 A (230 V AC), 3 A (400 V AC)
• Auxiliary Contacts: 1 Normally Closed (1NC)
• Standard: IEC /EN /K 60947-4-1
• Protection Class IP: IP20
• Operation Ambient Temperature: -25 / 60 °C
• Dimensions (W x D x H): 45 x 73 x 58 mm
