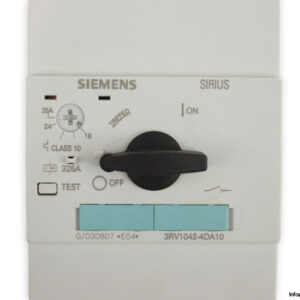

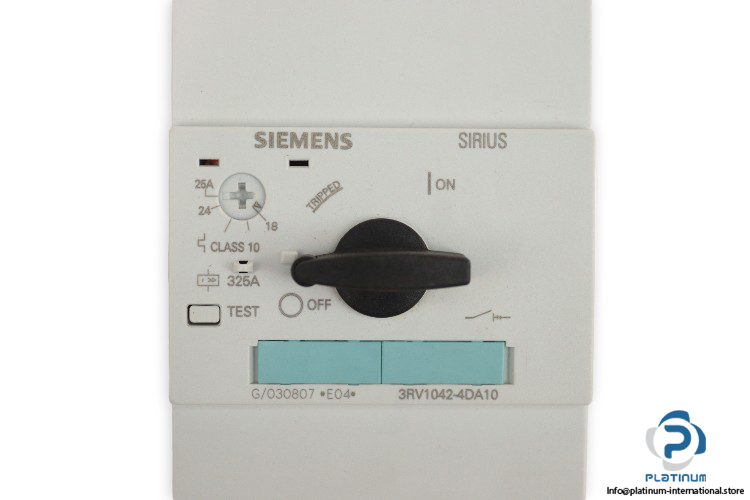

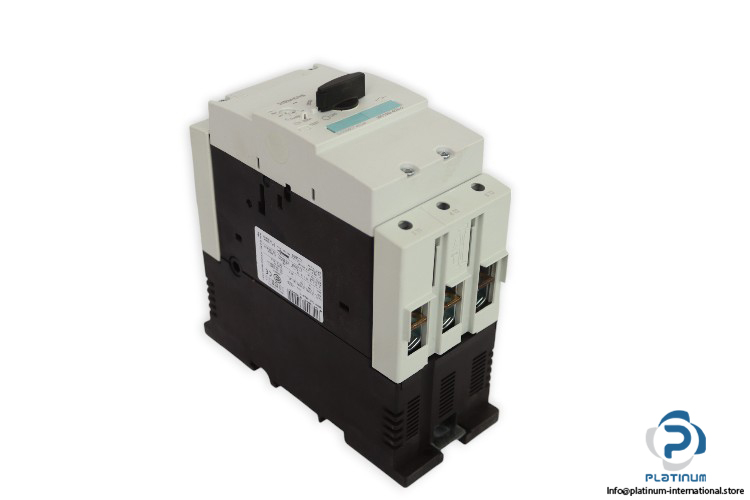

Manufacturer: Siemens
Type: CIRCUIT BREAKER

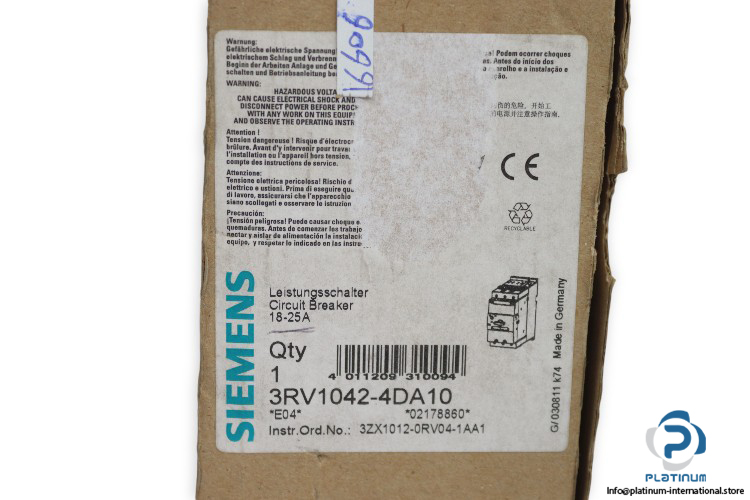

Part No.:3RV1042-4DA10
Family: Sirius
Size: S3
Number of Poles: 3
Short-Circuit release: 325 A
Power loss for rated value of the current: 21 W
Range Adjustable Current: 18 … 25 A
Rated Operating Voltage: 690 V AC
Operating power at AC-3 at 400 V rated value: 11 kW

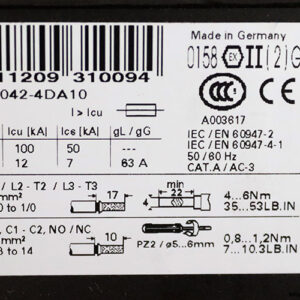

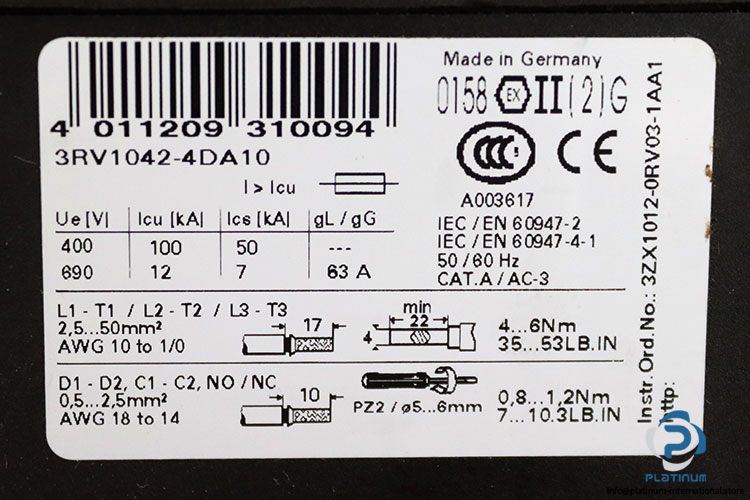

Ultimate Breaking Capacity (Icu):
100 kA – 400 V AC
12 kA- 690V AC
Service Breaking Capacity (Ics):
50 kA – 400 V AC
7 kA – 690V AC
Service Frequency: 50/60 Hz
Terminal Type: Screw Terminals
Design Release: Thermomagnetic
Dimensions (W x D x H): 70 x 174 x 165 mm
Protection Class: IP20
Trip Class: Class 10
Operating Temperature: -20 … 60 °C
Standard: IEC/EN 60947-2 , IEC/EN 60947-4-1
