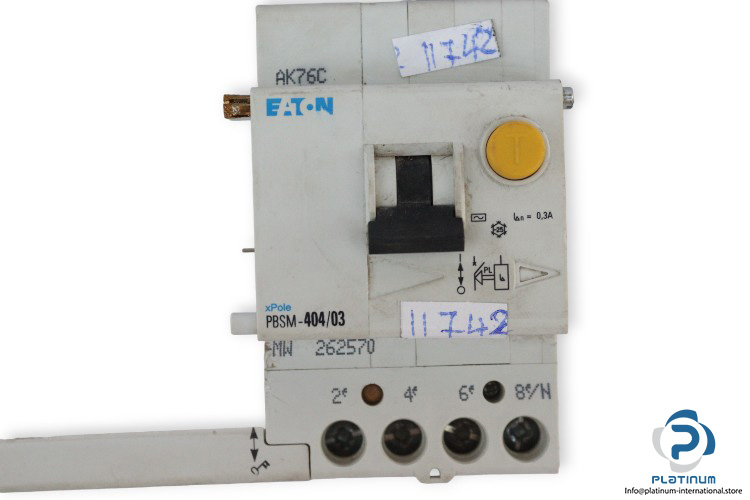

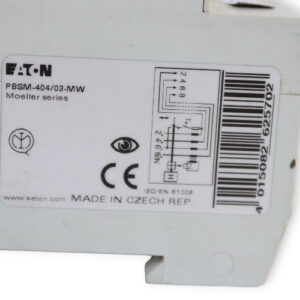

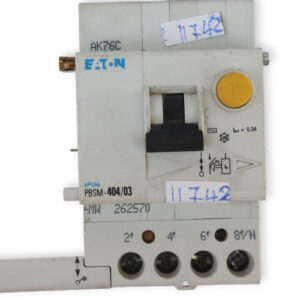

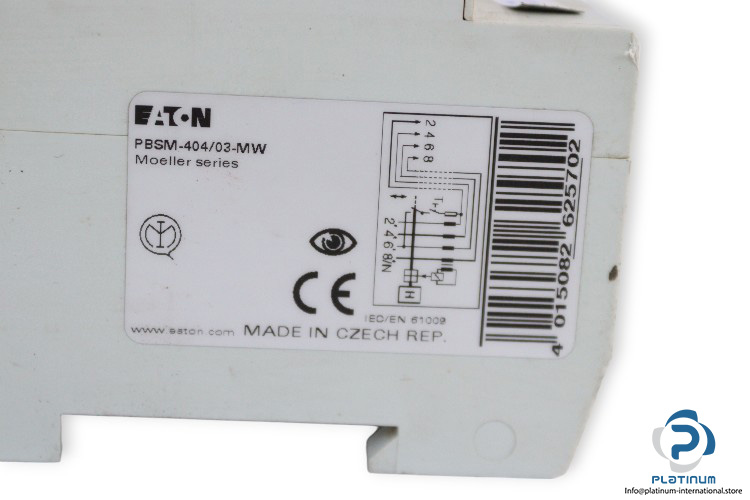

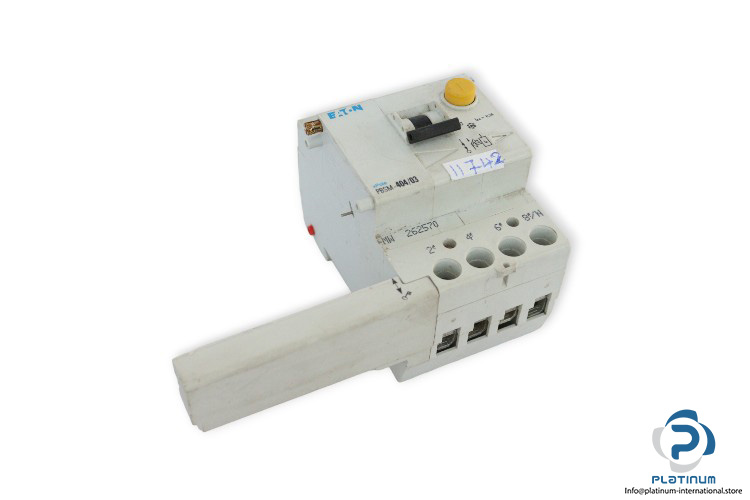

Eaton PBSM-404/03-MW Circuit Breaker

Manufacture: Eaton
Type: Residual-Current Circuit Breaker
Model: PBSM404/03MW

Application: Electrical equipment for residential and tertiary sectors
No. of poles: 4
Rated current: 40 A
Rated fault current: 0.3 A
Rated impulse withstand voltage Uimp: 4 kV
Power dissipation of the equipment, function of the current: 22 W
Degree of protection: IP20, IP40 with suitable housing
Terminals at the top and bottom: Screw terminals
Mounting type: DIN rail
Max. operating temperature: +40°C
Cover mounting dimensions: 45 mm
Base dimensions: 90 mm
