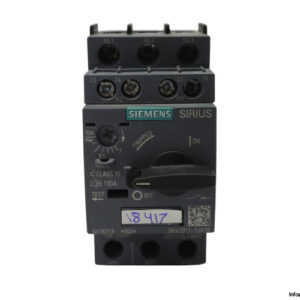

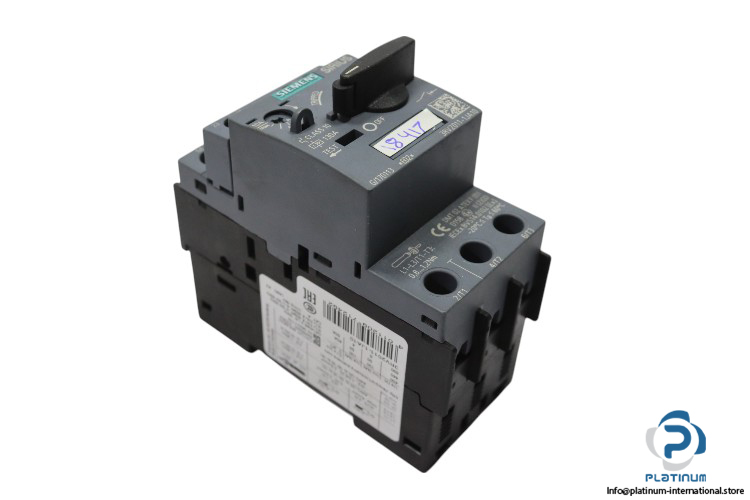

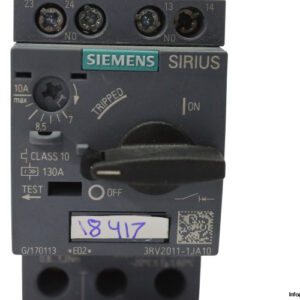

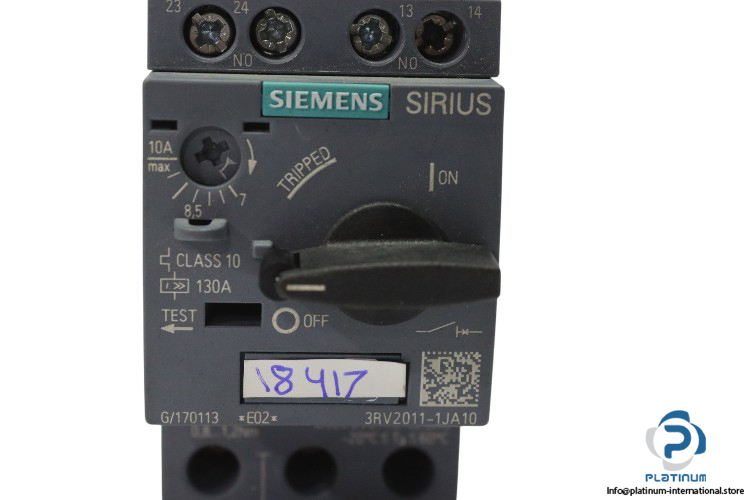

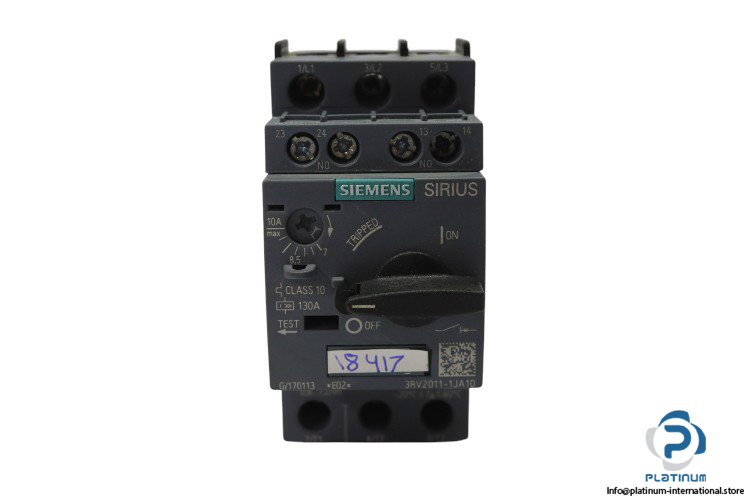

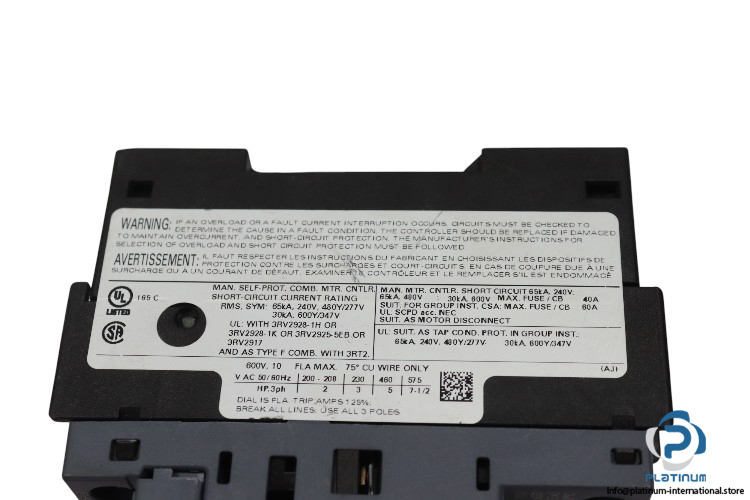

Siemens 3RV2 011-1JA10 Circuit Breaker
The Siemens 3RV2 011-1JA10 from the SIRIUS 3RV2 series is a high-performance motor protection circuit breaker designed to safeguard motors and connected equipment from overloads and short circuits. Compact in size yet delivering high breaking capacity, it is ideal for reliable industrial motor control and protection applications.
Manufacturer: Siemens
Type: Circuit Breaker
MNR: 3RV2 011-1JA10
Series: 3RV2
Product Type Designation: 3RV2
Size: S00
Product Brand Name: SIRIUS
Reference No.: G/170113 E02
Design of the Product: For motor protection
Technical Information
- Adjustable Overload Release: 7 to 10 A
- Rated Operating Current: 10 A (AC3, 400V)
- Switching Capacity: Up to 4kW at 400V (AC3); 2.2kW at 230V, 5.5kW at 500V, 7.5kW at 690V
- Short Circuit Breaking Capacity (Icu): Up to 100kA at 400V; 6kA at 690V
- Auxiliary Contact: 2 normally open (2NO)
- Trip Class: CLASS 10
- Mounting & Connections: Screw-and-snap mount on 35mm DIN rail; screw terminals
- Dimensions: 97 x 45 x 97 mm
