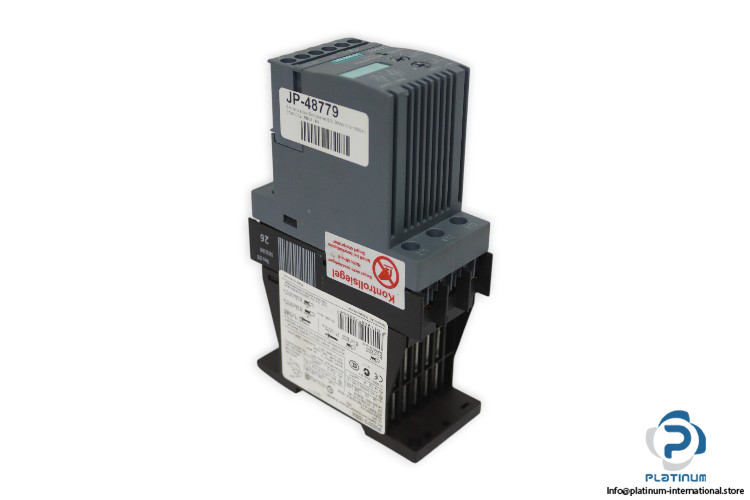

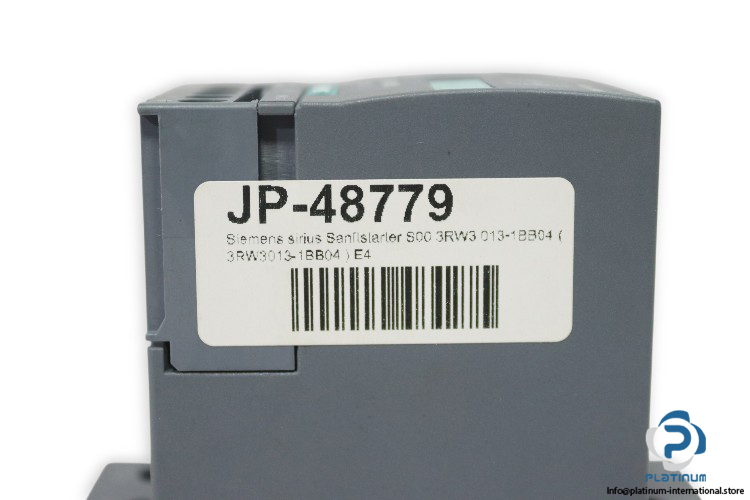

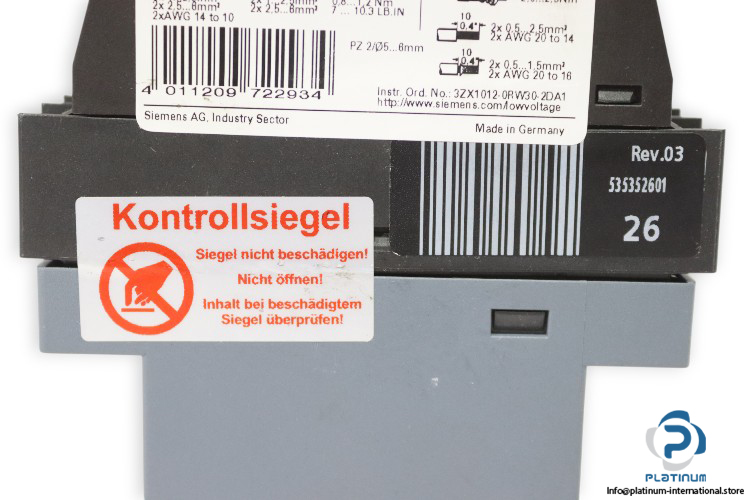

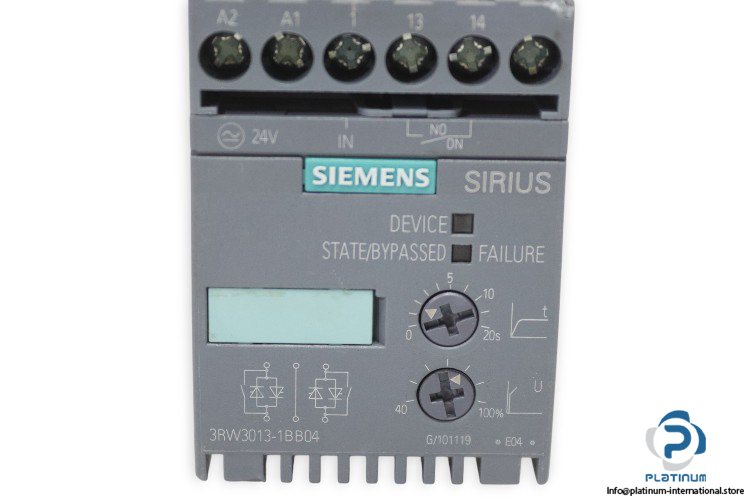

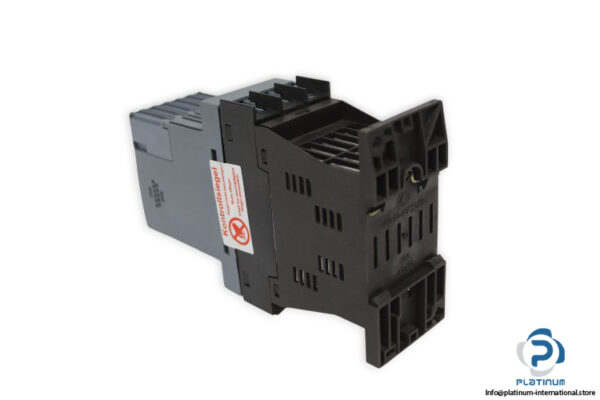

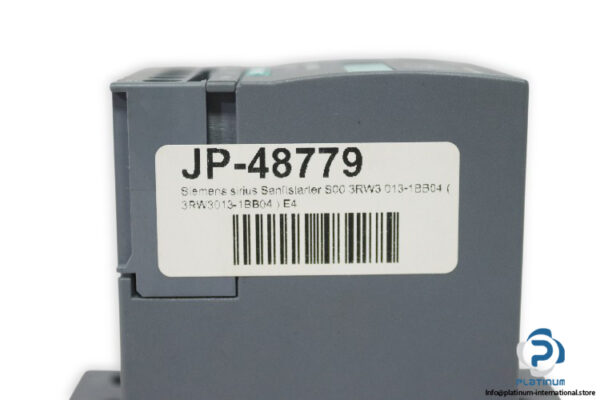

SIEMENS SIRIUS 3RW30131BB04 SOFT STARTER
The Siemens Sirius 3RW3013-1BB04 soft starter is engineered to provide smooth motor starting and stopping, reducing mechanical stress and extending the lifetime of equipment. With compact dimensions and reliable performance, it is well-suited for industrial automation systems.
Manufacturer: Siemens
Brand Name: SIRIUS
Type: Soft Starter
Model: 3RW3013-1BB04

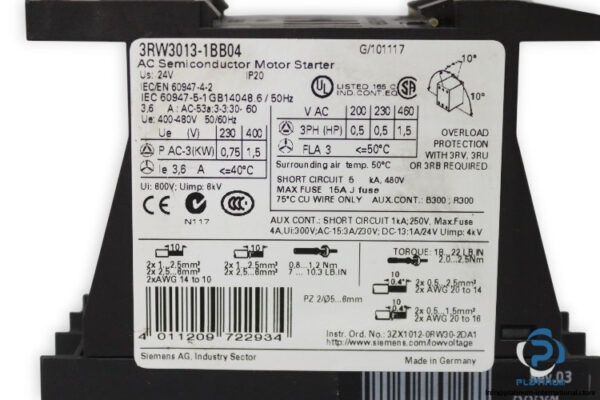

Technical Information
- Coil Voltage: 24 V AC/DC
- Coil Voltage Frequency: 50 / 60 Hz
- Rated Operating Voltage: 200 / 480 V AC
- Operational Current: 3.6 A
- Frequency: 50 / 60 Hz
- Power AC-3: 0.75 / 1.5 kW
- Power Loss: 0.25 W
- Insulation Voltage Ui: 600 V AC
- Auxiliary Contact: 1 Normally Open (NO)
- Protection Class: IP20
- Operation Temperature: -20 / 60 °C
- Dimensions: 95 x 45 x 150 mm
