Carlo Gavazzi RSE 4003-B Soft Starter

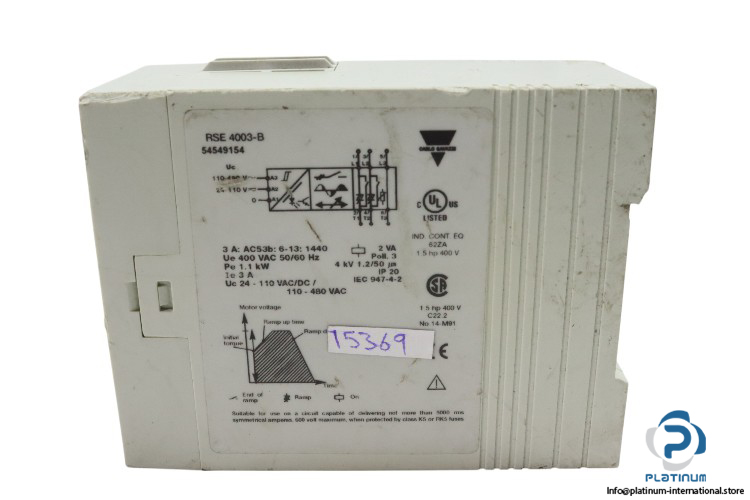

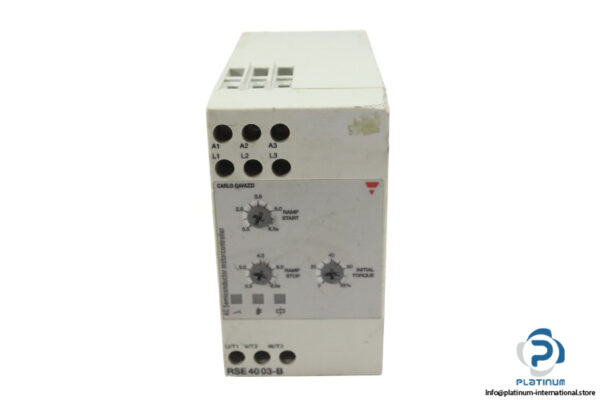

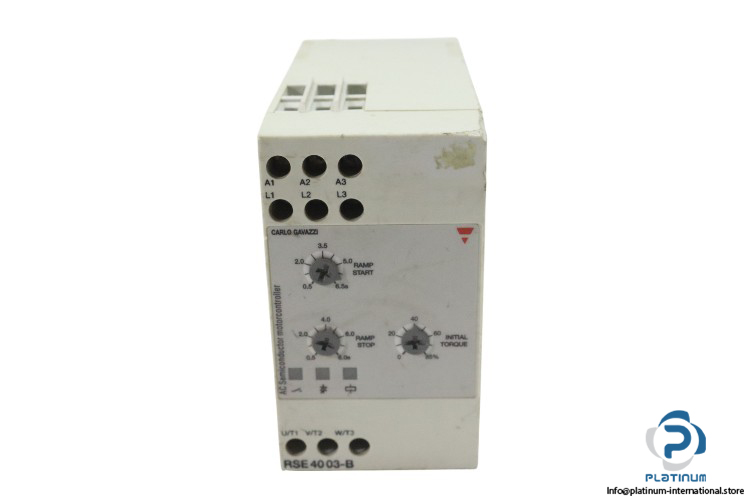

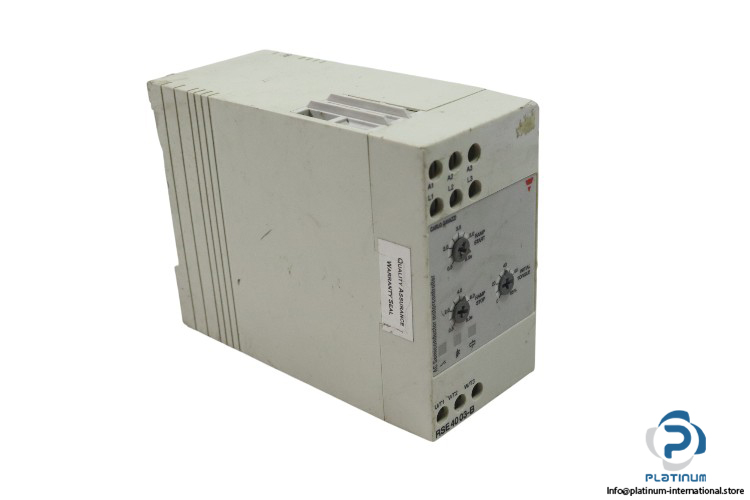

Carlo Gavazzi RSE4003-B Soft Starter

The Carlo Gavazzi RSE4003-B is a compact and efficient soft starter designed to reduce mechanical stress and electrical peak loads during motor startup. Ideal for industrial applications, it supports three-phase motors up to 1.1 kW and features wide voltage compatibility for flexible integration.

Manufacturer: Carlo Gavazzi

Type: Soft Starter

Model: RSE4003-B

MRN: 54549154

Technical Data:

• Rated Operation Current: 3 A
• Rated Operating Voltage (Ue): 340 V to 460 V
• Rated Power (3-Phase Motor at 400 V): 1.1 kW
• Rated Control Supply Voltage Us (AC 50Hz): 110 V to 480 V
• Rated Control Supply Voltage Us (DC): 24 V to 110 V
• Dimensions: 45 x 82 x 102.5 mm
• Degree of Protection: IP20
