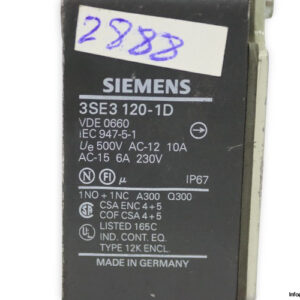

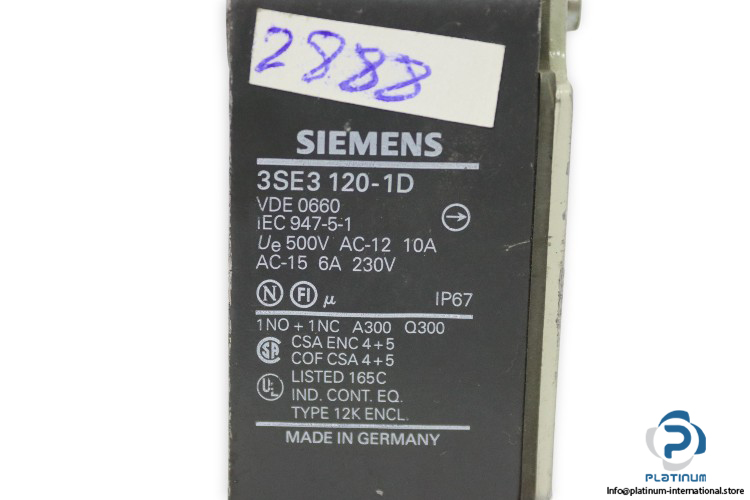

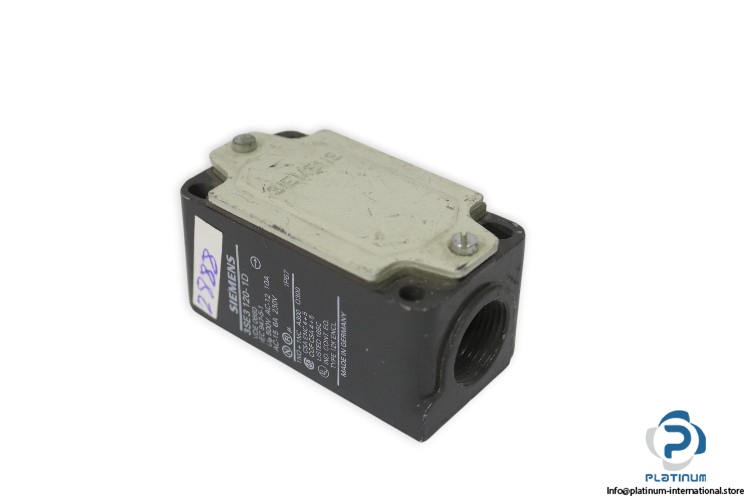

Siemens 3SE3 120 1D Position Switch (Type C)

The Siemens 3SE3 120 1D is a robust position switch without head (Type C), designed for precision control in industrial automation systems. With snap-action contacts, durable metal enclosure, and IP67 protection, it ensures reliable switching performance under demanding conditions.

Manufacturer: Siemens
Type: Position Switch without head (Type C)
Model: 3SE3 120 1D

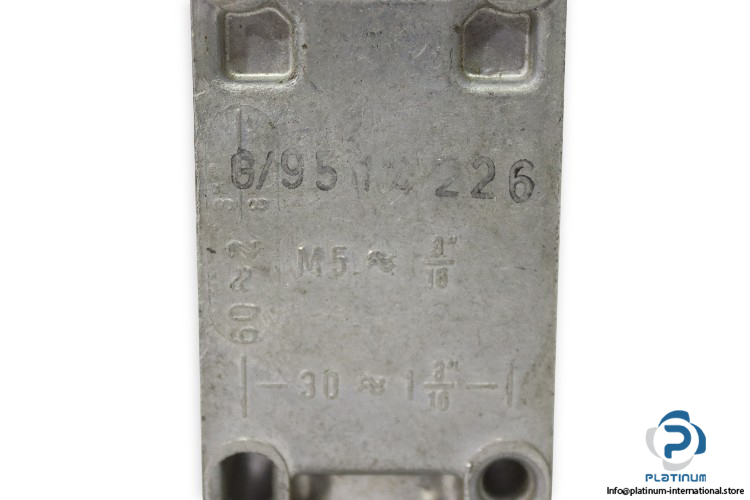

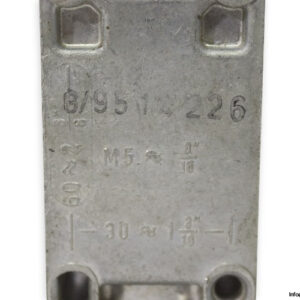

Code: 6/9514226 (M5, 3/16 INCH)

Technical information

• Standard: VDE 0660 / IEC 947-5-1
• Output Configuration: 1NO / 1NC (A300 Q300)
• Rated Operational Voltage: 500 V @ 10 A (AC-12)
• Contact Operation: Snap Action
• Actuator Type: Plunger
• Switching Voltage (Max): 230 V (AC-15)
• Contact Current (Max): 6 A (AC-15)
• Connection: Cable Entry
• Protection Class: IP67
• Length of Sensor: 118 mm
• Width of Sensor: 40 mm
• Material of Enclosure: Metal (12K)
• Ambient Operating Temperature: -30 / +85 °C
