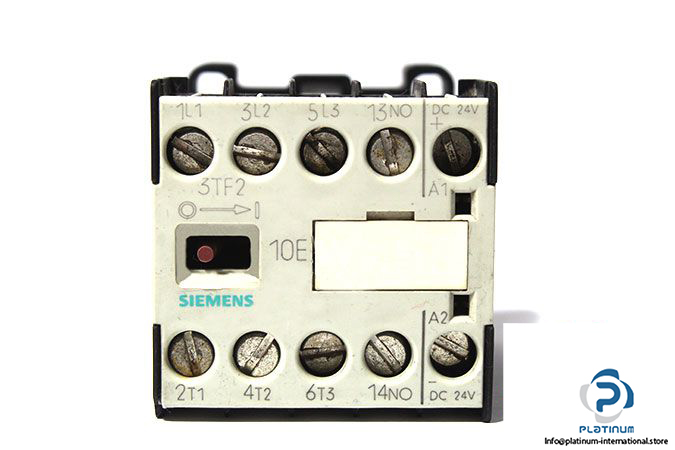

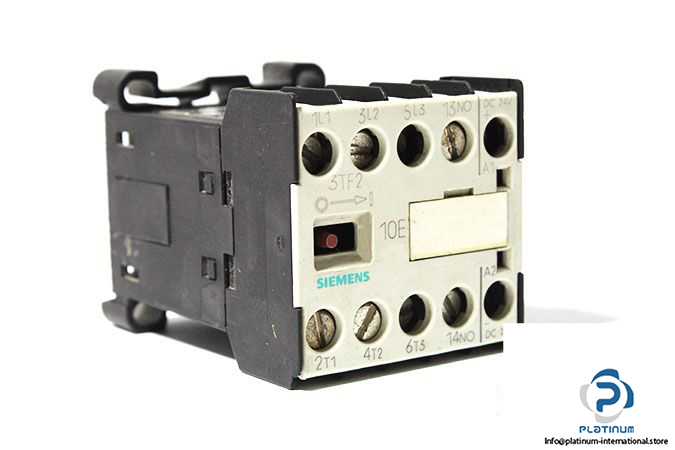

Manufacturer: Siemens

Type: Contactor

Model: 3TF2010-0FB4

Successor Type: Sirius 3RT201 or 3TG10

Application: Diode or Varistor Attachable Direct Current Operation 1.2 W 24 V DC

Size: 0

Designation: Miniature Contactor

Control Supply Voltage: 24 V DC

Rated Operating Power: 4 kW (400 V AC)

Rated Operating Current: 9 A (400 V AC)

Auxiliary Contacts: 1 Normally Open (1NO)

Standard: EC 158 / VDE 0660

Protection Class IP: IP20

Operation Ambient Temperature: -25 … 55 °C

Dimensions (W x D x H): 45 x 68 x 48 mm

Weight: 0.2 kg
