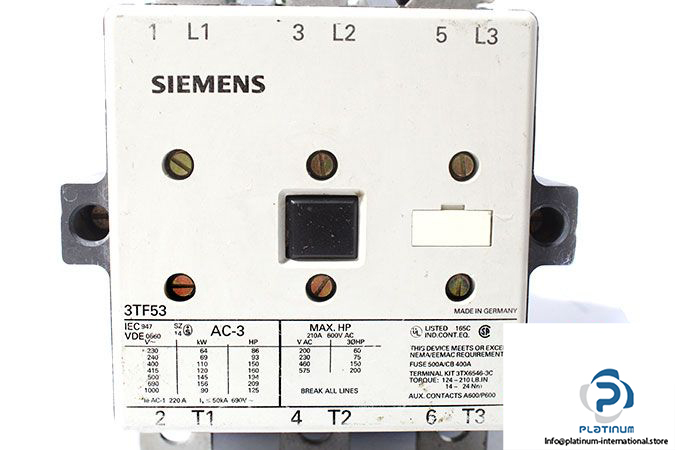

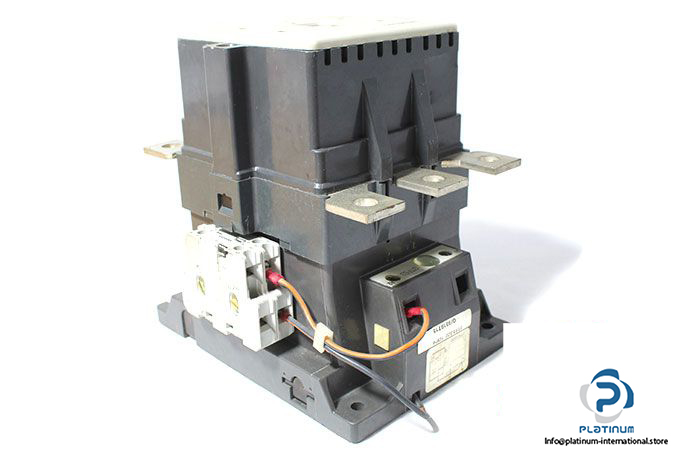

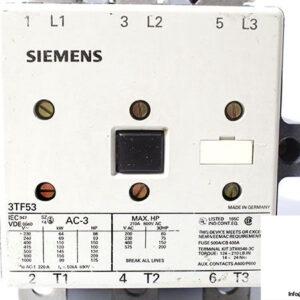

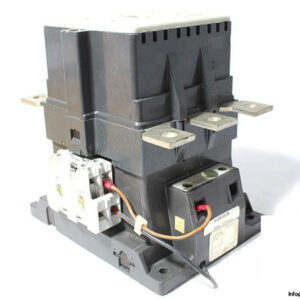

SIEMENS 3TF5 322-1DP4 CONTACTOR

The Siemens 3TF5 322-1DP4 is a high-capacity contactor engineered for reliable performance in industrial power switching and motor control. Built to IEC and VDE standards, it offers robust and efficient operation with an S8 frame size and 230 V DC coil voltage.

Manufacturer: Siemens
Type: Contactor
Model: 3TF5 322-1DP4
Part No.: G/9319T15

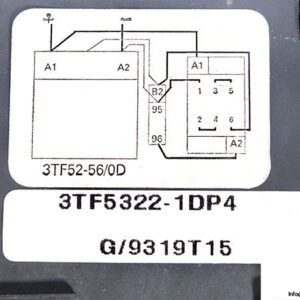

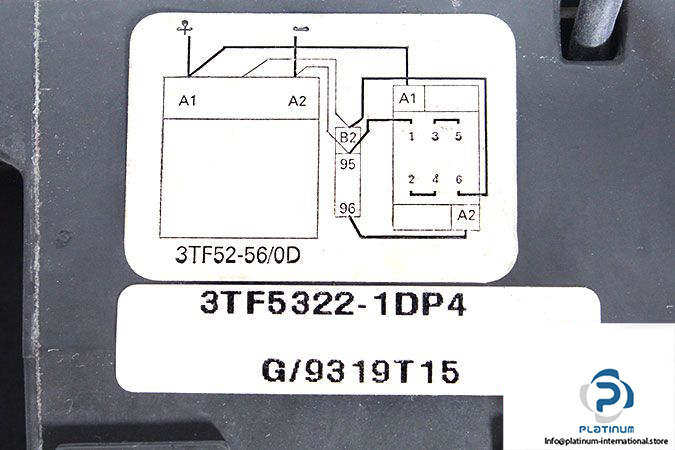

REF No.: 3TF52-56/0D

Technical Information

• Frame Size: S8
• Coil Voltage: 230 V DC
• Rated Power: 110 kW (400 V AC), 120 kW (415 V AC)
• Auxiliary Contacts: 2 Normally Open, 2 Normally Closed (2NO + 2NC)
• Standard: IEC 947 / VDE 0660
• Dimensions (W x D x H): 136 x 184 x 180 mm
