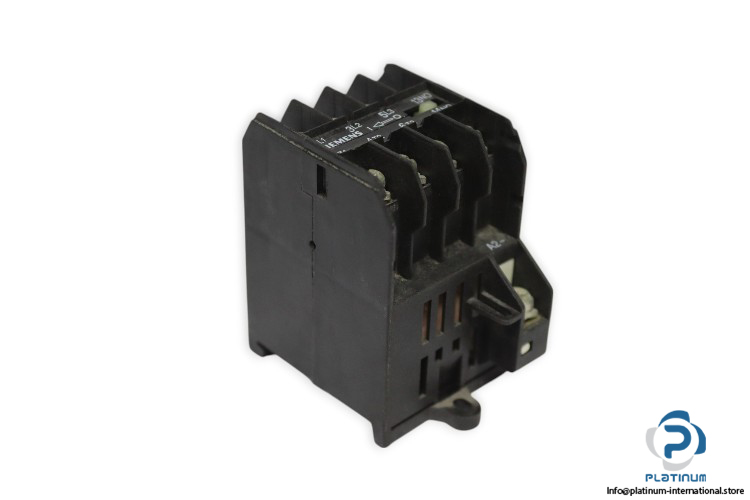

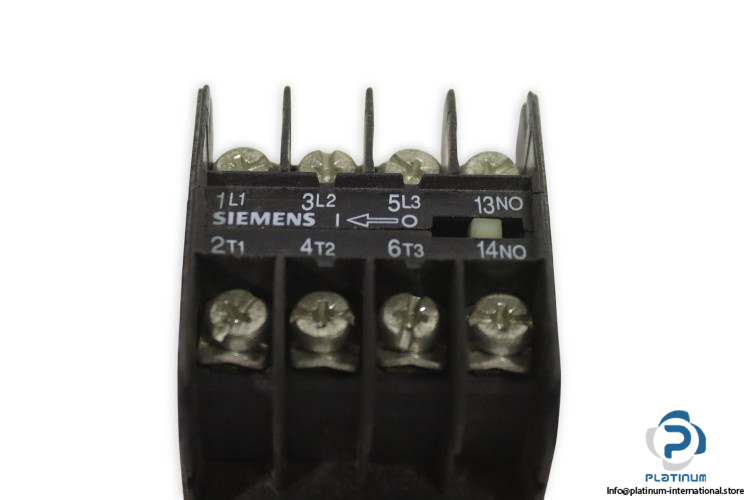

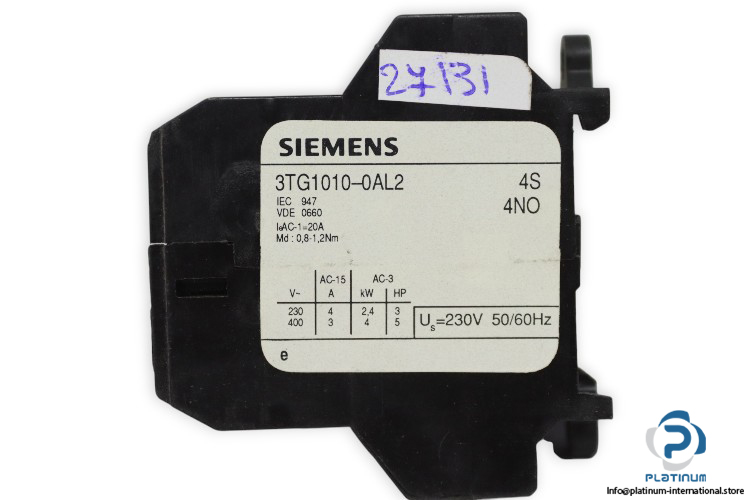

SIEMENS 3TG1010-0AL2 POWER RELAY

Engineered by Siemens, this high-quality power relay is designed for dependable switching in demanding industrial environments. With strong operational current capacity and wide voltage compatibility, it ensures robust performance across applications.

Manufacturer: Siemens
Type: Power Relay
Model: 3TG1010-0AL2

Technical Information

• Operational Current:
• At AC-1 (400 V): 20 A
• At AC-3 (400 V): 8.4 A
• At AC-3e (400 V): 6.4 A
• Power: 4 W
• Control Supply Voltage at AC:
• At 50 Hz: 230 V
• At 60 Hz: 230 V
• Number of Poles: 4
• Contact: 4 NO
• Ambient Temperature During Operation: -25 to 55 °C
• Dimensions (H x W x D): 62 x 36 x 60 mm
