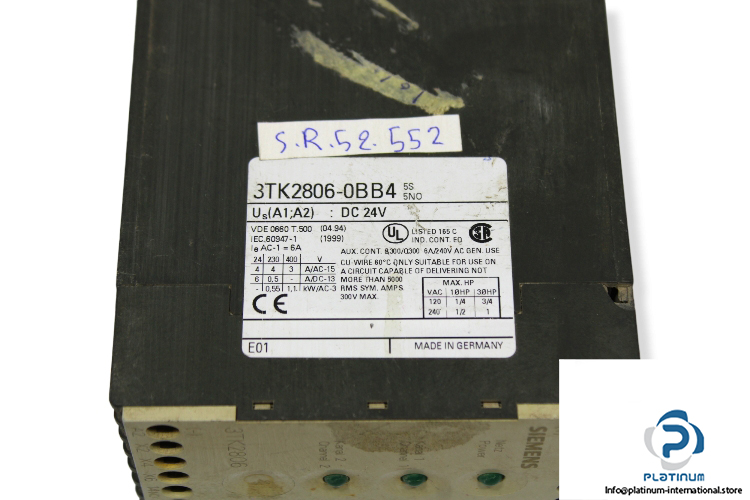

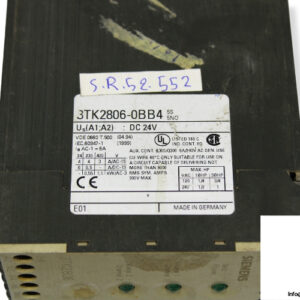

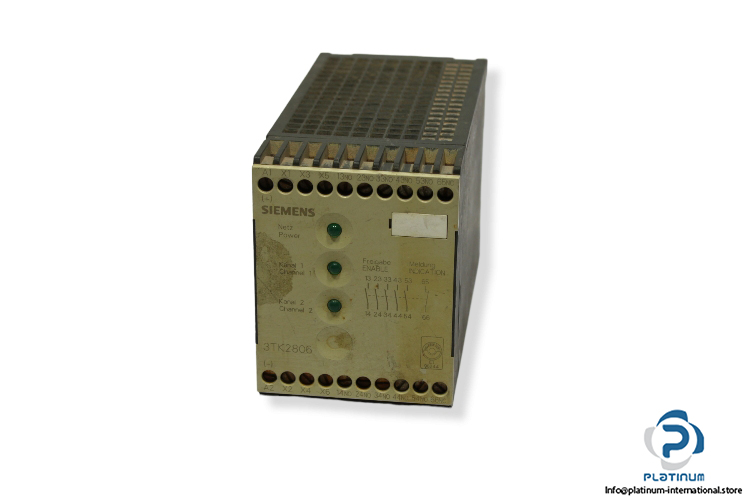

SIEMENS 3TK2806-0BB4 CONTACTOR SAFETY COMBINATION
Designed for reliable performance in safety-critical applications, the Siemens 3TK2806-0BB4 is a contactor safety combination built specifically for safety circuits. Its robust contact configuration and two-channel design make it ideal for machine protection systems and emergency stop functions.
Manufacturer: Siemens
Type: Contactor Safety Combination for Safety Circuits
Model: 3TK2806-0BB4
Technical Information
- Voltage: 24 V DC
- Rated Operating Current: Ie AC-1 = 6A
- Contacts: 5 Normally Open, 1 Normally Closed
- Contact Ratings:
- AC “ 15: 24V/4A, 230V/4A, 400V/3A
- DC “ 13: 24V/6A, 230V/0.5A
- AC “ 3: 230V/0.55KW, 400V/1.1KW
- Number of Channels: 2 Channels
