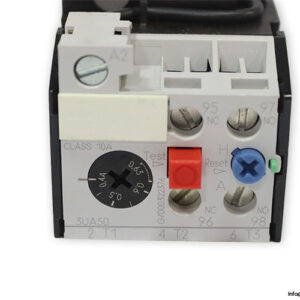

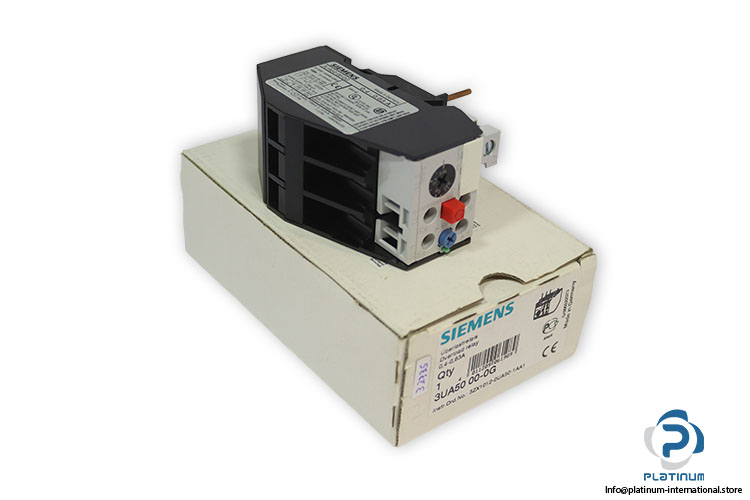

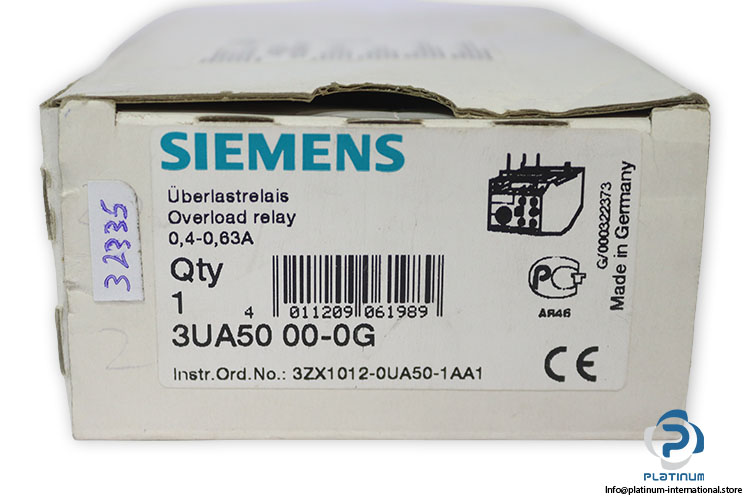

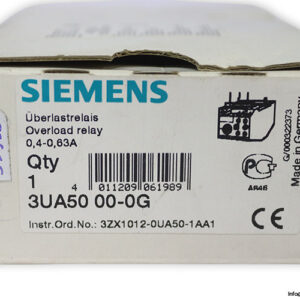

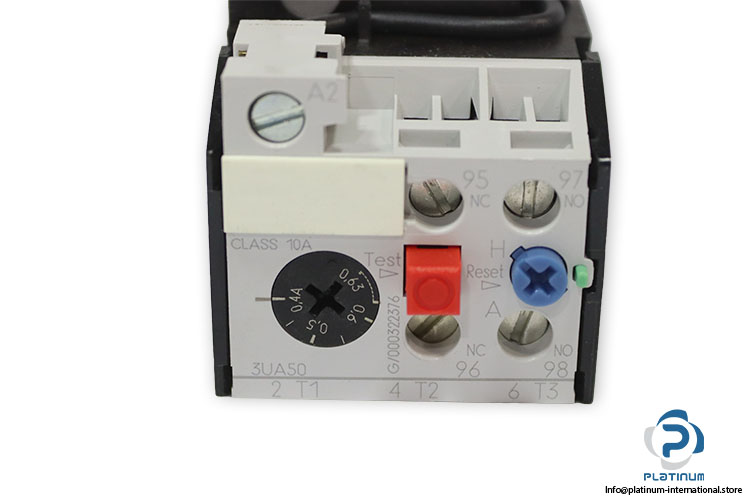

SIEMENS 3UA50 00-0G Overload Relay

A dependable and accurate overload relay designed to protect motors and industrial equipment from overcurrent conditions. Built by SIEMENS with high reliability for automation, control panels, and electrical protection systems. Manufacturer: SIEMENS
Type: Overload Relay
Model: 3UA50 00-0G
Instr. Ord. No.: 3ZX1012-0UA50-1AA1

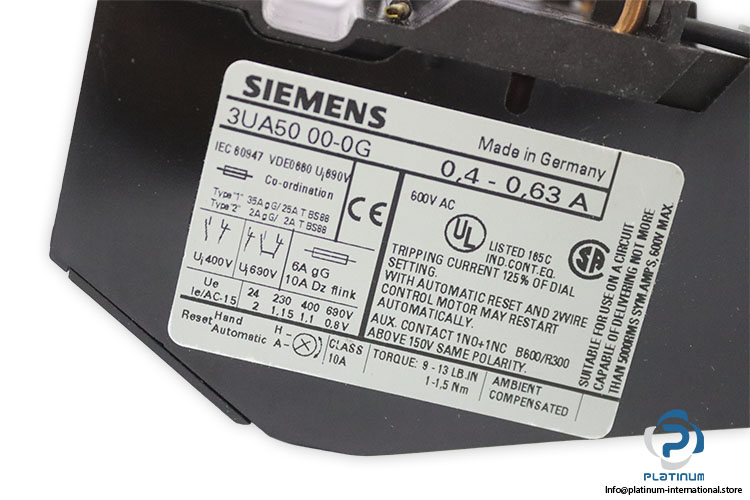

Technical Information

• Class: 10A
• Insulation Voltage: 690 V
• Current Range: 0.4“0.63 A
• Standards: IEC 60947, VDE 0660
• Contact: 1 NO + 1 NC
• Torque: 1 / 1.5 Nm
• Fuse: 6A gG / 10A D02 min
• Switching Voltage: 400 V
• Rated Operational Current Switching Capacity (Ie):
  • 2 A @ 24 V
  • 1.15 A @ 230 V
  • 1.1 A @ 400 V
  • 0.8 A @ 690 V
