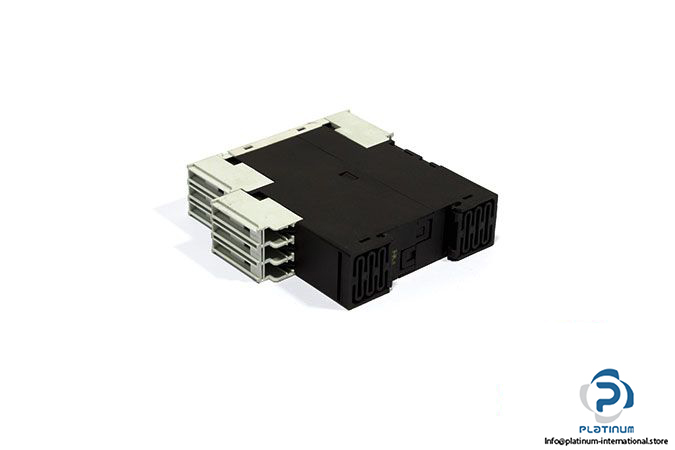

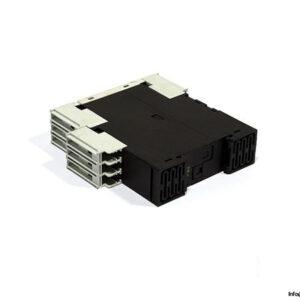

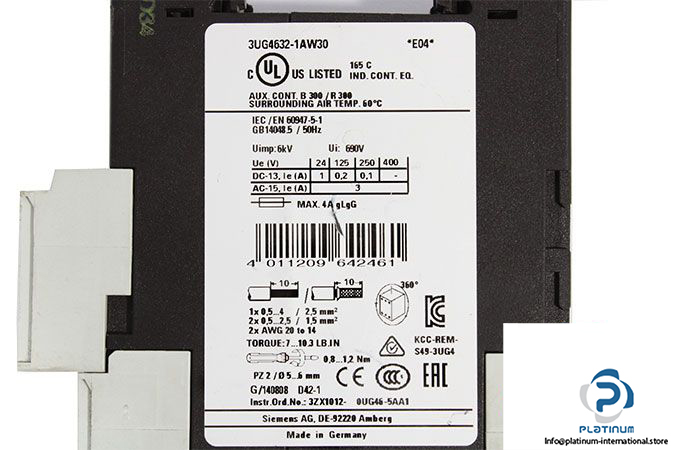

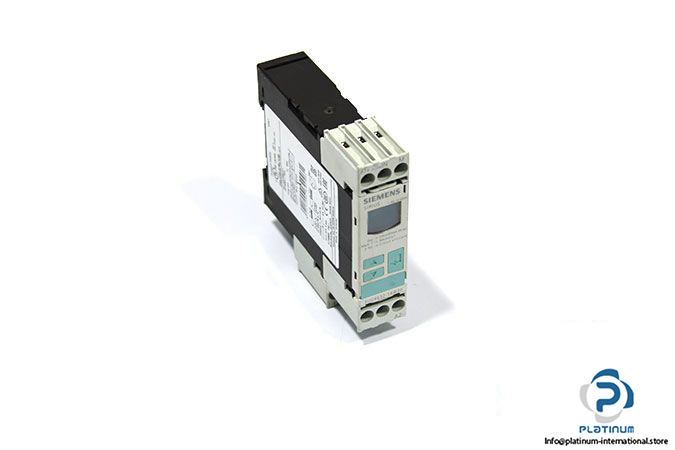

SIEMENS SIRIUS 3UG4632-1AW30 VOLTAGE MONITORING RELAY
The Siemens SIRIUS 3UG4632-1AW30 is a high-precision voltage monitoring relay designed for flexible and reliable protection of electrical systems. Equipped with a wide control supply range and LCD display, this relay ensures consistent voltage monitoring across industrial applications.
Manufacturer: Siemens
Type: Voltage Monitoring Relay
Brand Name: SIRIUS
Model: 3UG4632-1AW30
Successor Product: 3UG3532-1AL20, 3UG3532-1AG20
Technical Information
- Control Supply Voltage: 24 / 240 V AC/DC
- Control Frequency: 50 / 60 Hz
- Measurable Voltage: 10 / 600 V AC/DC
- Measurable Line Frequency: 40 / 500 Hz
- Type Designation: 3UG4
- Display: LCD
- Number of CO Contacts (Delayed Switching): 1
- Adjustable Response Delay Time: 0.1 / 20 s
- Electrostatic Discharge: 6 kV Contact / 8 kV Air
- Electrical Connection: Screw-Type Terminals
- Protection Class: IP20
- Dimensions (W x H x D): 22.5 x 91 x 92 mm
- Ambient Operating Temperature: -25 / 60 °C
