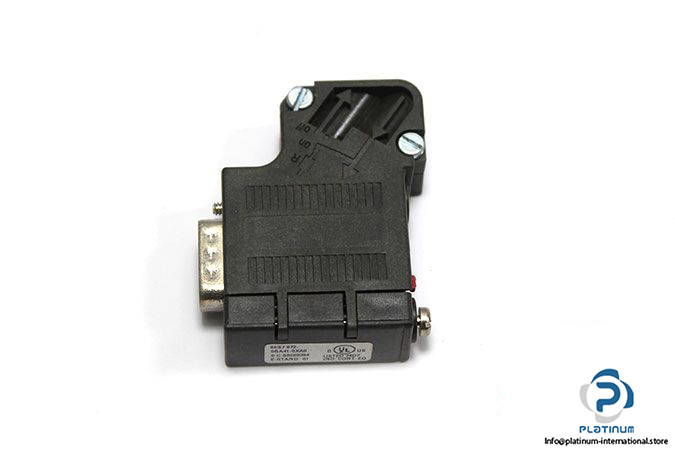

SIEMENS 6ES7 972-0BA41-0XA0 BUS CONNECTOR
The Siemens 6ES7 972-0BA41-0XA0 Bus Connector is designed for reliable and efficient PROFIBUS communication. It enables seamless connection between a PROFIBUS station or network component and the bus cable. Built with compact form and robust interfaces, this connector ensures optimal signal transmission and stable operation in industrial environments.
Manufacturer: Siemens
Type: Bus Connector

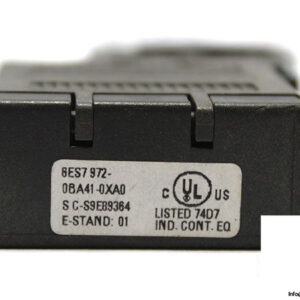

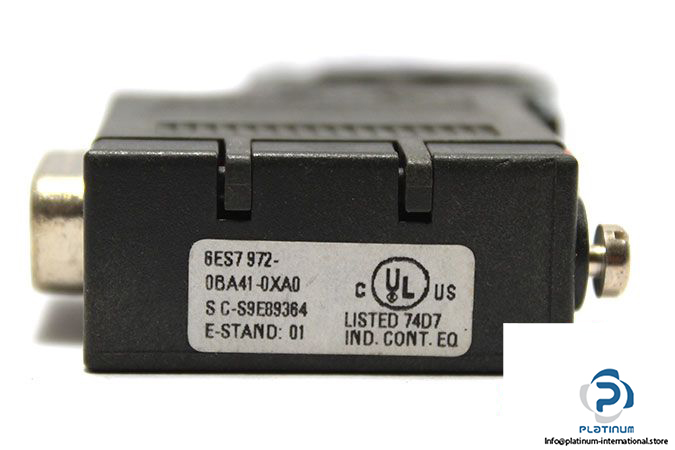

Model Number (MNR): 6ES7 972-0BA41-0XA0
Model: S C-S9E89364
Technical Information
- E STAND: 01
- Used For: Connecting a PROFIBUS station or a PROFIBUS network component to the bus cable
- Data Transmission Rate: 9.6 kbit/s to 12 Mbit/s

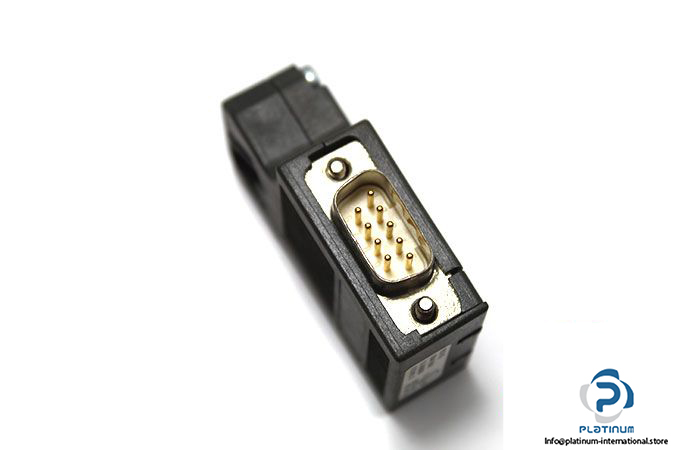

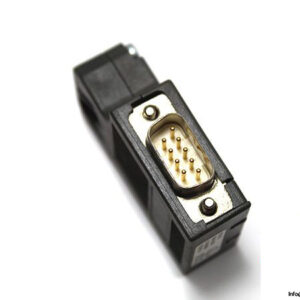

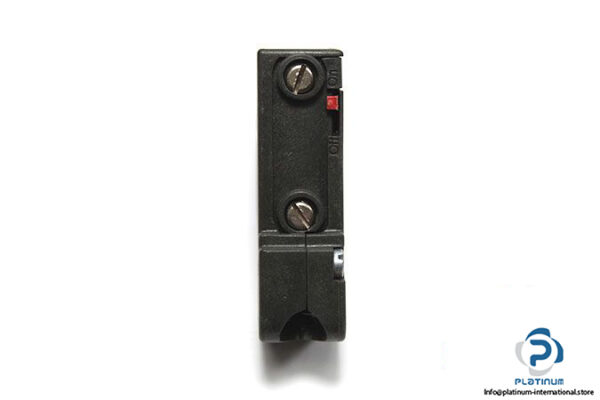

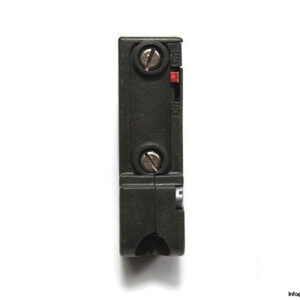

- Interface: 9-pin Sub-D socket, 4 terminal blocks for wires up to 1.5 mm²
- Supply Voltage: 4.75 V to 5.25 V DC
- Current Consumption: Max. 5 mA
- Degree of Protection: IP20
- Dimensions: 15.8 x 54 x 39.5 mm
