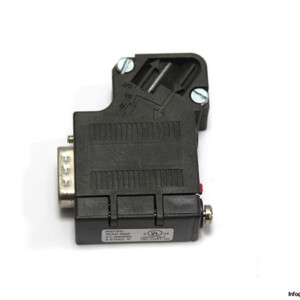

Siemens 6ES7 972-0BA41-0XA0 BUS Connector
18,22$

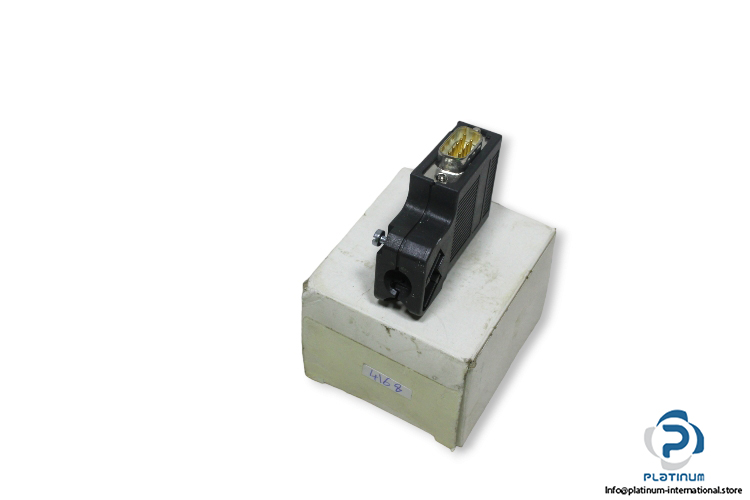

Siemens 6ES7 972-0BA41-0XA0 S C-S4L95659 Bus Connector High-performance PROFIBUS bus connector designed for industrial automation. Features a 9-pin Sub-D interface, secure terminal blocks, and supports high-speed data transfer.
Siemens 6ES7 972-0BA41-0XA0 S C-S4L95659 Bus Connector
The Siemens 6ES7 972-0BA41-0XA0 is a high-quality bus connector designed for efficient and secure connection of PROFIBUS stations and network components to the bus cable. This connector ensures reliable and high-speed data transmission in industrial automation systems.
Key Technical Features:
Manufacturer: Siemens
Type: Bus Connector

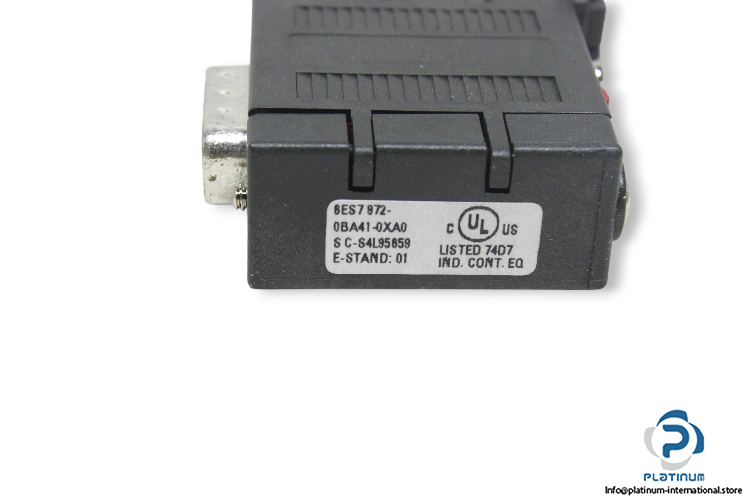

Model Number (MNR): 6ES7 972-0BA41-0XA0
Model: S C-S4L95659
Designed for industrial applications, this bus connector provides high-speed, secure, and stable data transmission, making it a critical component for PROFIBUS networks.
| Used for | Connecting a PROFIBUS station or a PROFIBUS network component to the bus cable |
| Data Transmission Rate | 9.6 kbit/s to 12 Mbit/s |
| Interface | 9-pin Sub-D socket, 4 terminal blocks for wires up to 1.5 mm² |
| Supply Voltage | 4.75 V to 5.25 V DC |
| Current Consumption | Max. 5 mA |
| Degree of Protection | IP20 |
| Dimensions | 15.8 x 54 x 39.5 mm |
