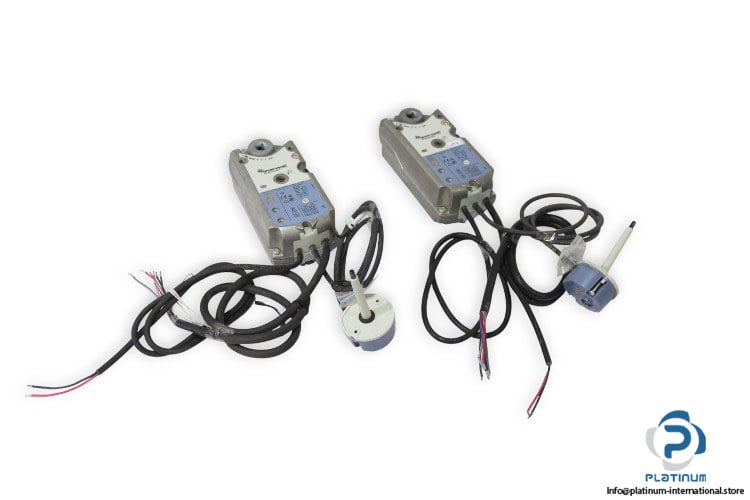

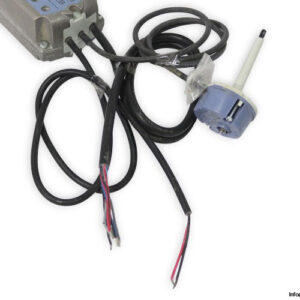

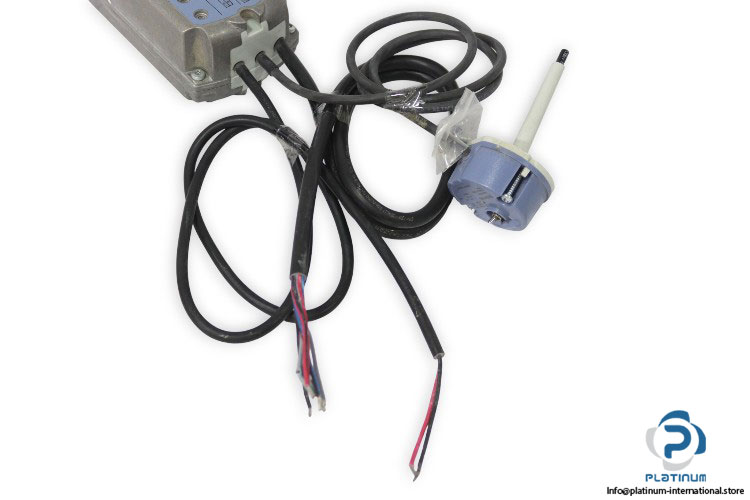

Siemens GNA126.1E/TE Fire and Smoke Protection Damper Actuator with Temperature Monitoring Unit
The Siemens GNA1261ETE Fire and Smoke Protection Damper Actuator is engineered for precise control and safety in HVAC and ventilation systems. It ensures reliable damper positioning for fire and smoke protection, offering smooth operation, quick response, and high durability. Supplied together with the Siemens 7466202340 Temperature Monitoring Unit, this system provides enhanced safety and temperature detection capabilities for complete air control applications.
Manufacturer: Siemens
Type: Fire and Smoke Protection Damper Actuator

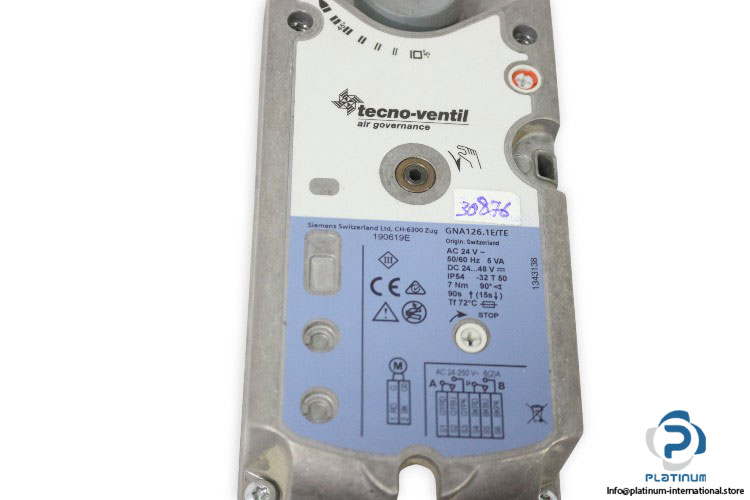

Model: GNA126.1E/TE
Technical Information
- Rated Nominal Voltage: 24 V AC / 24 / 48 V DC
- Power Consumption: 5 VA
- Frequency: 50 / 60 Hz
- Auxiliary Contact Switch: DPDT 2 Changeover (CO)
- Positioning Time: Open 90 s, Close 15 s
- Angle of Rotation Max.: 90°
- Position Indication: Mechanical, Pluggable
- Protection Class: IP54
- Ambient Temperature: -30 / 50 °C
- Dimensions: 178 x 81 x 63 mm

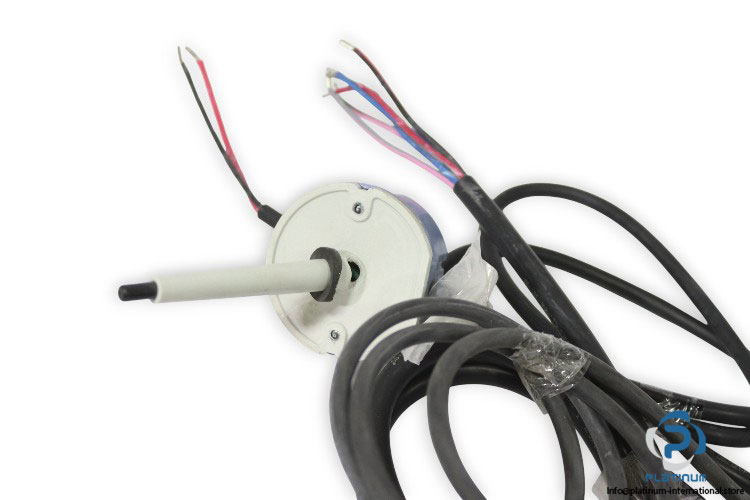

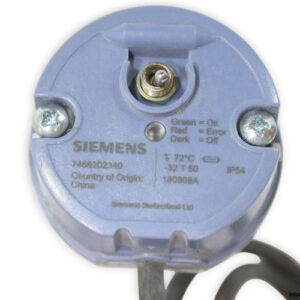

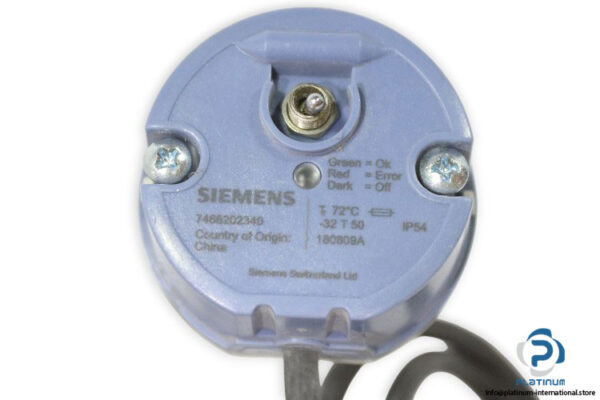

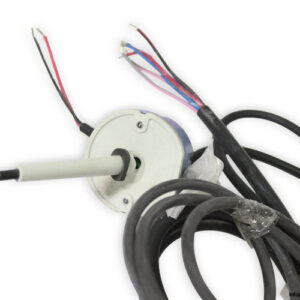

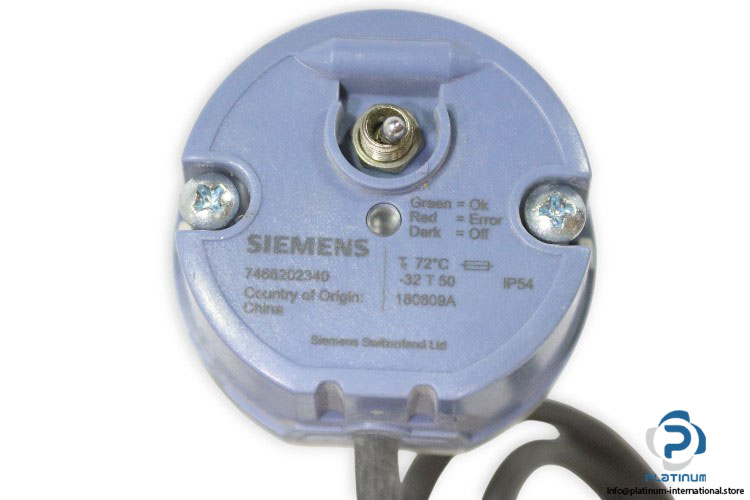

Attached Temperature Monitoring Unit
- Manufacturer: Siemens
- Type: Temperature Monitoring Unit
- Model: 7466202340
- Part No.: 180809A
- Diameter: 55 mm
- Probe Length: 73 mm
- Total Length: 107 mm
